Description

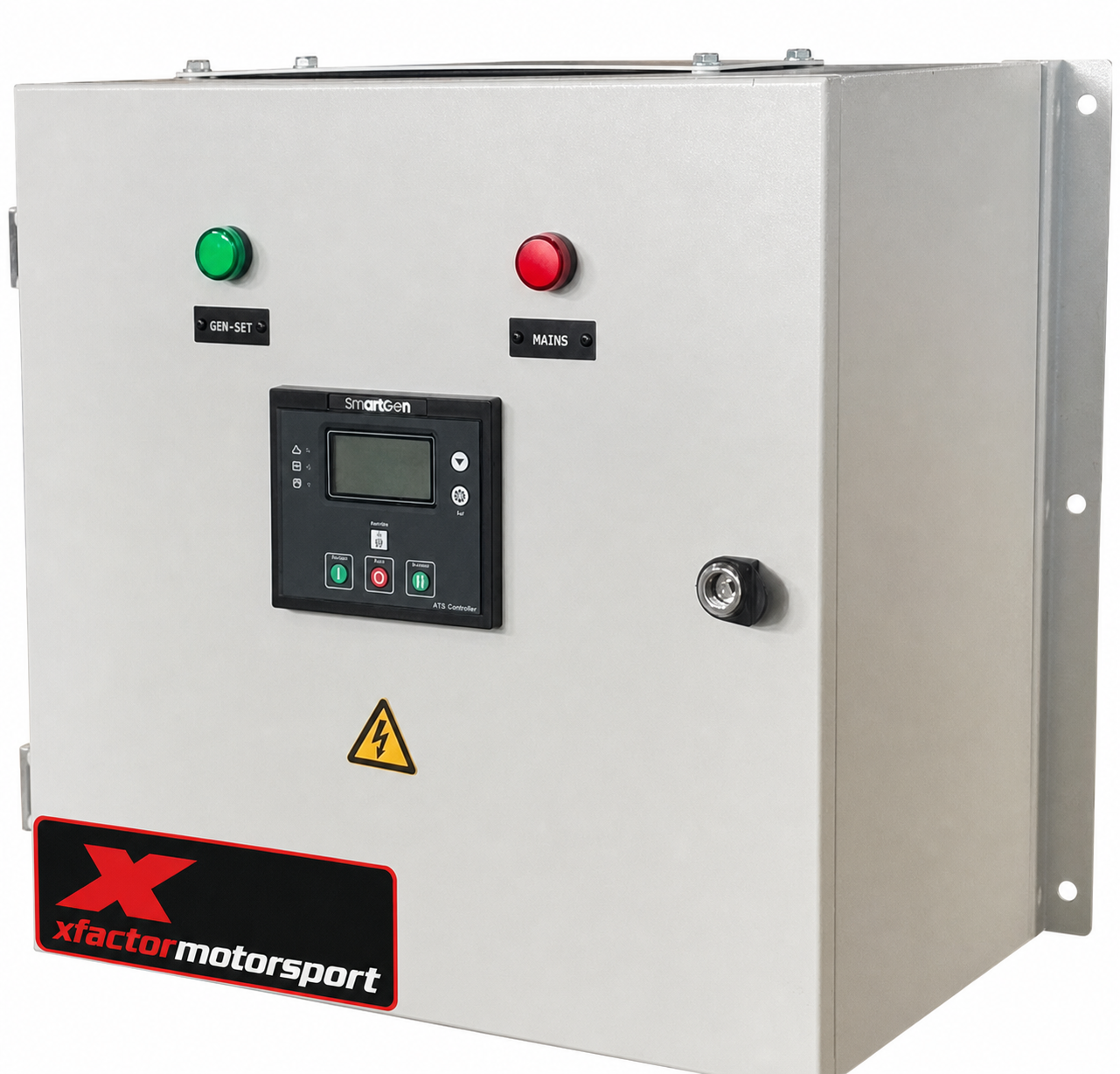

400A AUTOMATIC TRANSFER SWITCH (ATS) PANEL
Switch (ATS) Panel is engineered for seamless and
automatic power transition between the main utility
supply and backup generators. Designed for high-
capacity applications, this ATS ensures a stable and
uninterrupted power supply, minimizing downtime
and maintaining operational continuity in mission-
critical environments such as industrial facilities,
commer…
Model: CTS400
Operation Current: 400A
Frequency: 50/60Hz
Phase: 3-Phase (Single phase for option)
Voltage: 208V, 220V, 380V, 400V, 415V
400A AUTOMATIC TRANSFER SWITCH (ATS) PANEL
(ATS) panels, also referred to as automatic main
failure (AMF) panels, the power switch to emergency
standby generators in the event of a significant loss
of mains power or total blackout. Without ATS
panels, generators need to be operated manually
and that can mean lost data, potential damage td
electrical equipment and huge amounts of
disruption.
These panels are used for controlling power supply
n various industries like processing plants, hospitals
etc. On the request of the clients, we customized
these panels (both automatic and manual modes) to meet clients-specific requirements.
GTS400 ATS PANEL
FEATURES
• 1 x 4 pole load transfer switch
1 x 3 phase and neutral mains detector with
hysteresis
2 x lamp indicators
PARAMETERS
ATS switch model (AISIKAl or
SUYANG brand)
Rated current (In)
Conventional thermal current
(lth)
Rated insulation voltage of
copper bar (Ui)
Rated impulse withstands
voltage (Uimp)
Rated operating voltage of the
copper bar (Ue)
Use category
Rated limiting short-circuits
current
Rated limiting short-circuits
current – Fuses for protection
(1a)
Rated limiting short-circuits
current – Breaker for protection
(1a)
Transferring time (1- |1 or ll- 1)
SKT1-
4+00A/4P
400A
400A
1000V
12KV
AC 440V
AC 33A
67.2KA
100KA
65KA
O.6S
Control input voltage
AC 220V
Rated control voltage – Start
325W
Rated control voltage – Normal
62WHeadline: Reliable Power Management with the xfactormotorsport 400A ATS Panel
Never worry about power outages again. The xfactormotorsport 400A Automatic Transfer Switch (ATS) Panel is engineered for high-performance power management, providing a seamless transition between utility power and your backup generator. Designed for both commercial and heavy-duty residential applications, this panel ensures your critical systems stay online without manual intervention.
Key Features & Benefits:
• Seamless Transition: Automatically detects power loss and switches to your generator in seconds, protecting sensitive electronics and equipment.
• SmartGen Controller Integration: Features an advanced digital controller for real-time monitoring of voltage, frequency, and system status.
• 400A High-Capacity: Robust electrical components rated for 400 Amps, suitable for large-scale power demands.
• Rugged Enclosure: Housed in a durable, weather-resistant metal cabinet (as shown in our red and black branding) for long-lasting protection.
• Safety First: Built-in overload protection and electrical interlocking to prevent back-feeding and ensure operator safety.
Technical Specifications:
• Rated Current: 400A
• Switch Type: Automatic Transfer (ATS)
• Controller: SmartGen Digital Interface
• Application: Diesel/Gasoline Generator Sets, Industrial Facilities, Large Residences
• Enclosure Color: Custom xfactormotorsport Red & Black
