Description

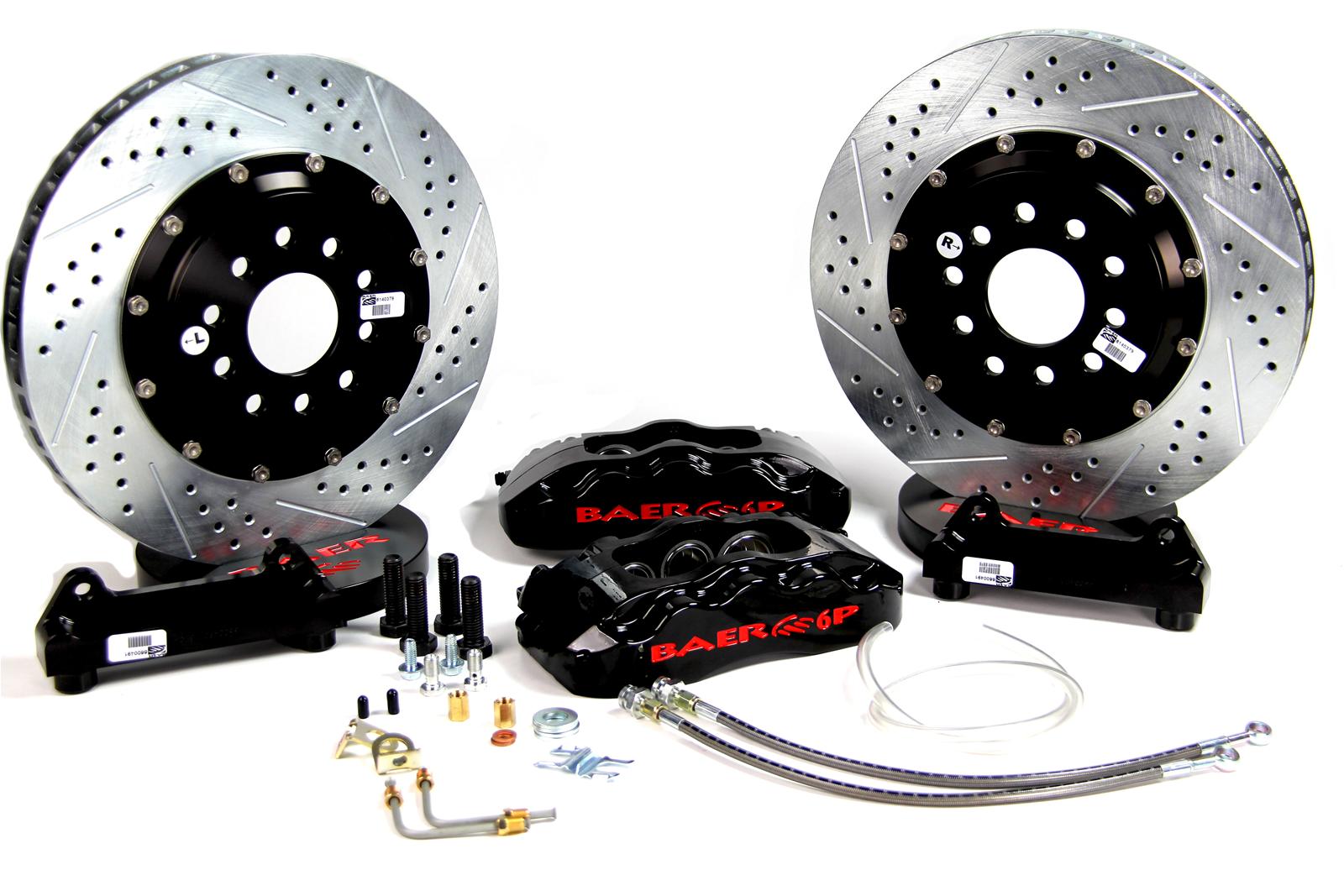

The Baer Claw Pro+ front disc brake kit (Baer part number 4301352B; Summit Racing part number BAE-4301352B) pairs Baer 6P six-piston calipers with 14-inch vented rotors. The calipers are black forged billet aluminum and use a radial-mount design. Internal fluid-transfer passages give the calipers a clean exterior appearance.
The two-piece rotors feature cross-drilled and slotted surfaces and zinc-coated surfaces. Their aluminum hats help reduce rotor assembly weight, accommodate differential expansion between the rotor plates, and limit heat transfer to the hub. The kit includes a matched set of ceramic brake pads and stainless braided brake hoses; the pads use friction material D0731.
- Position: Front
- Rotor diameter: 14.00 in. (355.60 mm)
- Rotor bolt pattern: 5 x 4.75 in. (5 x 120.65 mm)
- Minimum recommended wheel diameter: 18 in.
- Parking brake provision: None
This kit is designed for use with a Detroit Speed subframe, SpeedTech ATS spindles, a Roadster Shop chassis with Corvette C6 suspension, or an Art Morrison clip with Corvette C5/C6 suspension. Confirm your chassis, suspension, and wheel clearance before ordering.
Sold as a kit. Rear rotors and calipers, front spindles, master cylinder, and brake booster are not included. This is not a remanufactured system.
