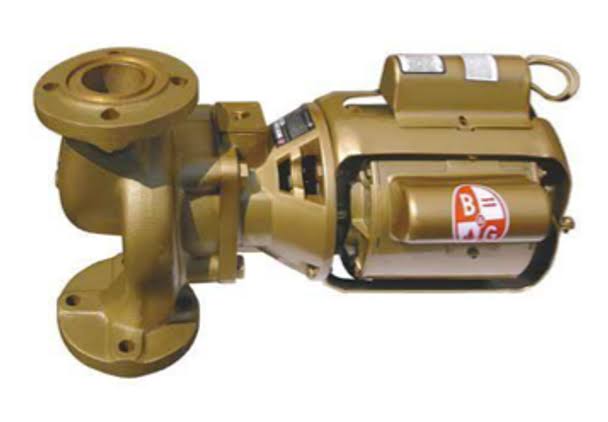

Bell & Gossett 102233LF Series 2 AB Bronze Booster Pump | Ultimate Product Guide
Product Overview
The Bell & Gossett 102233LF is a premium, all-bronze booster pump designed specifically for demanding potable water applications. This Bell & Gossett 102233LF pump is engineered to increase water pressure in residential and light commercial settings, ensuring strong, consistent flow from showers, faucets, and appliances. As part of the legendary Series 2 line from a trusted name in hydronics, this model is built for reliability, durability, and long-term performance.
Its key features include a corrosion-resistant all-bronze construction, a powerful and efficient 1/6 HP motor, and oil-lubricated bearings for extended service life. This complete package includes a pair of 2-inch flanges for straightforward installation.
Detailed Technical Specifications
To help you make an informed decision, here are the complete technical specifications for the Bell & Gossett 2 AB pump.
Physical & Performance Specifications
| Feature | Specification |
|---|---|
| Model Number | 102233LF (2 AB) |
| Series | Series 2 |
| Pump Type | Booster Pump, 3-Piece Construction |
| Horsepower (HP) | 1/6 HP |
| Voltage | 115V, 60 Hz |
| Phase | Single Phase |
| Full Load Amps (FLA) | 3.0 Amps |
| Speed | 1725 RPM |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 230° F (110° C) |
| Port Size | 2″ Female NPT |
| Included Flanges | Pair of 2″ Flanges |
Materials of Construction
| Component | Material |
|---|---|
| Pump Casing | Bronze |
| Impeller | Bronze |
| Motor Bearing | Oil-Lubricated Bronze Sleeve |
| Shaft | Stainless Steel |
| Seal | Carbon/Ceramic Mechanical Seal |
Bell & Gossett 2AB vs. The Competition: Comparison Table
How does the Bell & Gossett 102233LF stack up against other common booster pump types? This table highlights the key differences.
| Feature | Bell & Gossett 102233LF (Bronze) | Standard Cast Iron Pump | Modern Composite Pump |
|---|---|---|---|
| Material for Water | All Bronze (Best-in-Class) | Cast Iron (Prone to Rust) | Thermoplastic/Composite |
| Corrosion Resistance | Excellent | Poor | Good |
| Durability & Longevity | Extremely High | Moderate (if kept dry) | Good |
| Potable Water Safe | Yes, Ideal | No (can rust and discolor water) | Yes |
| Motor Type | Oil-Lubricated (Quiet & Long-Life) | Often Oil-Lubricated or Sleeve | Often Greased (Shorter Bearing Life) |
| Initial Cost | Higher | Lower | Moderate |
| Best For | Reliable, permanent solutions | Non-potable applications, closed loops | Light-duty, cost-conscious apps |
Frequently Asked Questions (FAQ)
Q1: What is this pump primarily used for?
A: This pump is designed as a domestic water pressure booster. It is perfect for increasing low water pressure in homes, apartments, or small commercial buildings for showers, sinks, sprinkler systems, and feeding appliances like washing machines.
Q2: Is this pump safe for drinking water?
A: Yes, absolutely. The all-bronze construction is lead-free and highly corrosion-resistant, making it perfectly safe and ideal for potable (drinking) water systems. Cast iron pumps should never be used for drinking water.
Q3: What does “oil-lubricated” mean and why is it important?
A: The motor features bronze sleeve bearings that are lubricated by a reservoir of oil. This design is significantly quieter, runs cooler, and has a much longer lifespan than motors with greased (“lubricated for life”) bearings, especially in frequent start/stop applications like water boosting.
Q4: Is the motor thermally protected?
A: Yes. The motor includes automatic thermal overload protection. This safety feature will shut the motor off if it overheats due to a blockage, running dry, or electrical issues, preventing burnout and protecting your investment.
Q5: Is this a “jet pump” or a “centrifugal pump”?
A: This is a centrifugal pump. It uses an impeller to create flow and pressure. It is not self-priming and must be installed with the pump and suction pipe completely filled with water (flooded suction).
Q6: Are the flanges included?
A: Yes, the product description specifies that a pair of 2-inch flanges is included, making installation quicker and easier.
Pros and Cons
Pros:
-
Superior Build Quality: All-bronze construction offers exceptional corrosion resistance and longevity, outlasting cheaper alternatives.
-
Potable Water Safe: The ideal choice for drinking water applications without risk of rust or contamination.
-
Quiet and Reliable Operation: The 1725 RPM motor and oil-lubricated bearings ensure smooth, quiet performance.
-
Thermal Protection: Built-in overload protection safeguards the motor from damage.
-
Trusted Brand: Bell & Gossett is a renowned leader in pumping technology with a reputation for reliability.
-
Includes Flanges: Comes with 2″ flanges, reducing additional parts needed for installation.
Cons:
-
Higher Initial Cost: More expensive upfront than cast iron or composite pumps, but offers better value over its lifespan.
-
Not Self-Priming: Requires a flooded suction and cannot be used to pull water from a source below the pump without additional priming components.
-
Weight: Heavier than modern composite pumps due to its solid bronze construction.
Conclusion & Best Applications
The Bell & Gossett 102233LF Series 2 AB pump is not just a product; it’s a long-term investment in your home’s water system. It is the definitive choice for homeowners and professionals who prioritize safety, durability, and quiet performance over a lower initial cost.
You should choose this pump if:
-
You need to boost pressure for drinking water.
-
You want a “buy it for life” product that won’t rust or fail prematurely.
-
You value a quiet household and want a pump that won’t be heard running.
-
You are replacing an old cast iron pump and want a safe, modern solution.
For reliable water pressure you can count on for years to come, the Bell & Gossett 2 AB Bronze pump is the industry-standard solution.
Disclaimer: Always consult a licensed plumber for installation to ensure local code compliance and optimal operation.
