Description

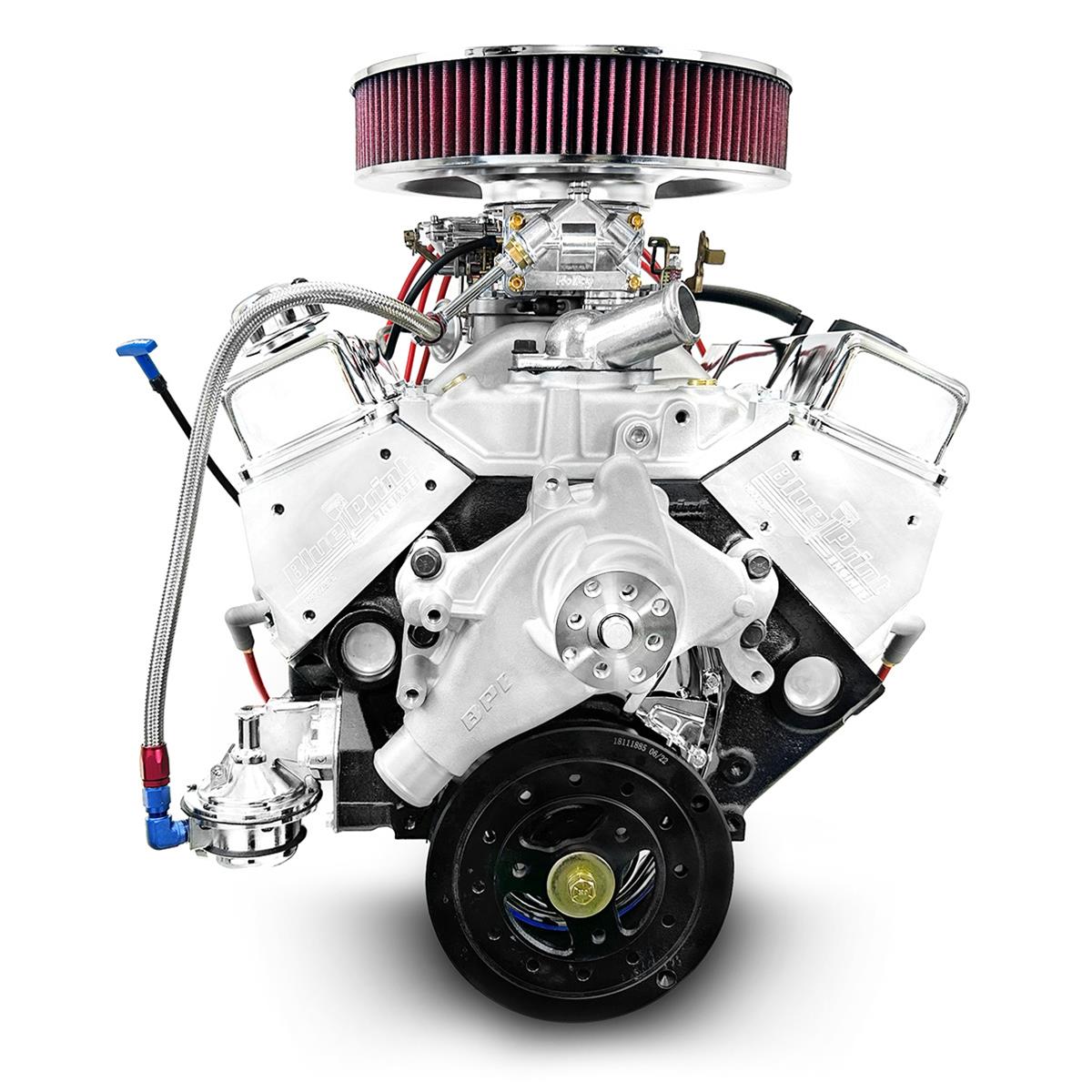

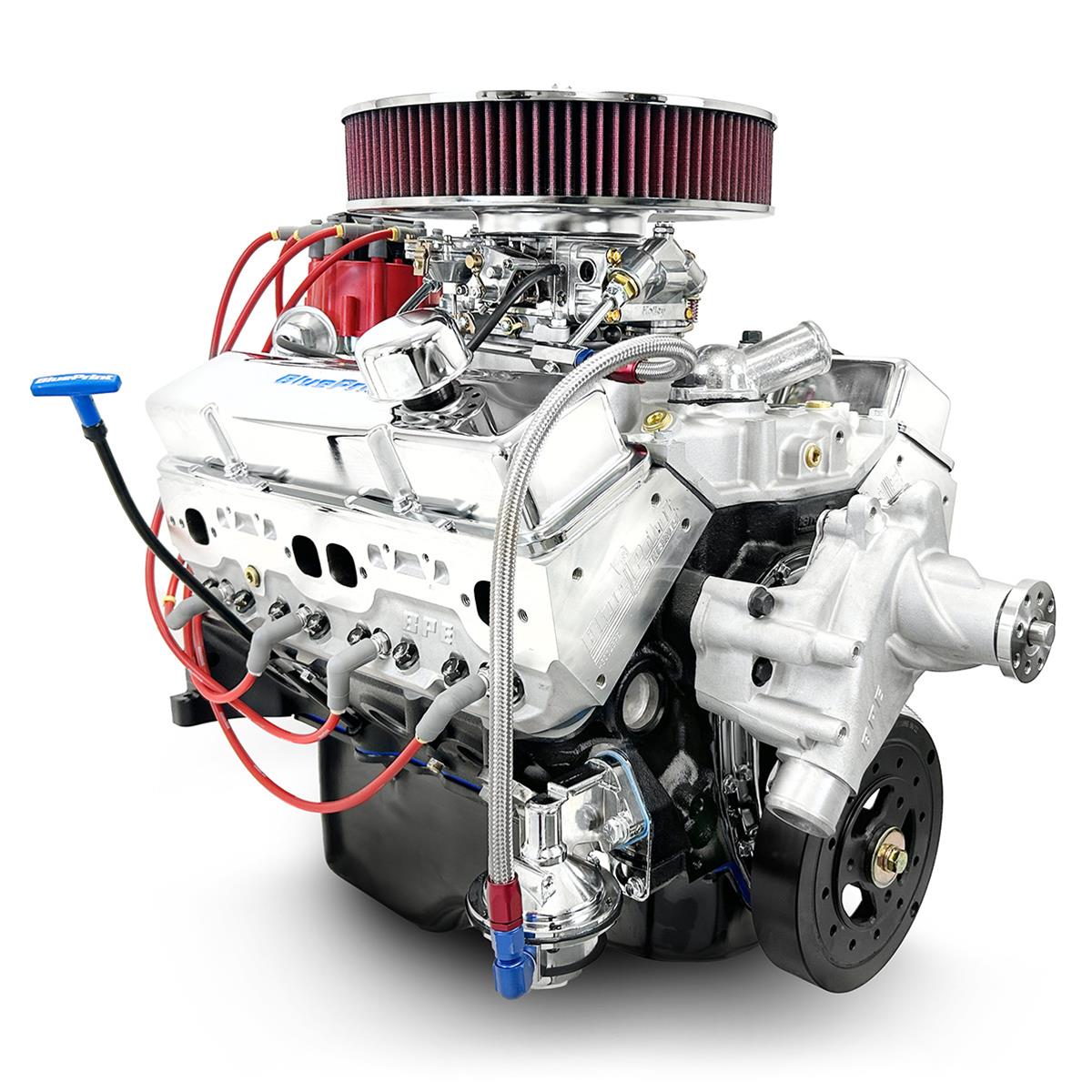

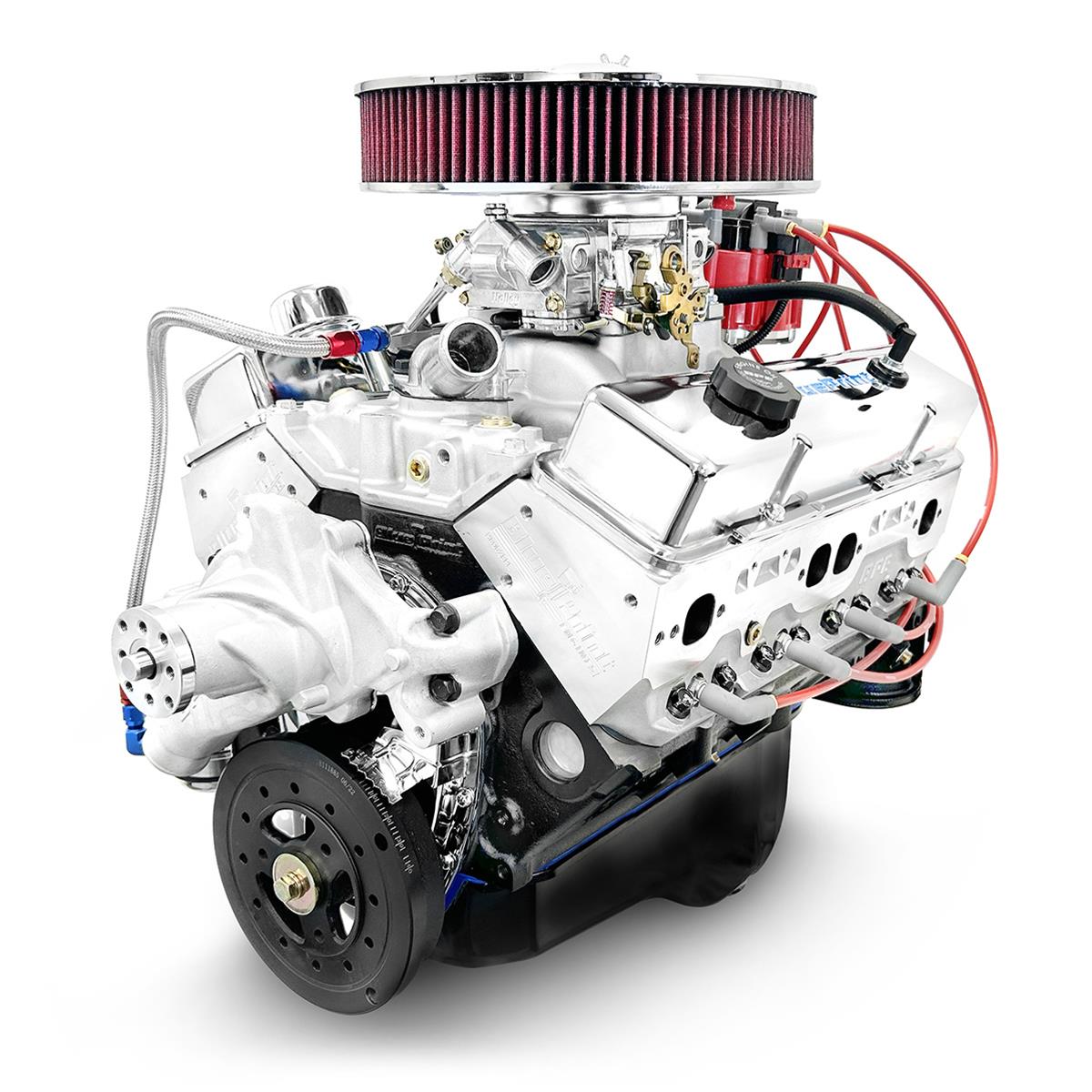

BluePrint Engines BP38318CTC1D GM 383 Stroker Crate Engine
Unleash classic muscle with modern reliability. The BluePrint Engines BP38318CTC1D is a fully dressed 383 cubic inch Stroker crate engine that delivers a stout 436 horsepower and 443 lb-ft of torque right out of the box. This engine is the ultimate drop-in solution for enthusiasts seeking a massive power increase for their street rod, classic muscle car, or hot rod project without the guesswork of a custom build.
Meticulously hand-assembled and dyno-tested, this crate engine combines a proven 4-bolt main block with a precision-balanced rotating assembly and high-flow aluminum cylinder heads. It comes complete with everything you need to fire it up: a 750 CFM carburetor, HEI distributor, spark plugs and wires, water pump, and a dual-plane intake manifold. This “dressed” configuration means you unbox, install, connect the essentials, and turn the key.
Built for strength and performance, this 383 Stroker features a hydraulic roller cam for crisp throttle response and low-maintenance operation, a high-volume oil pump for critical pressure at high RPMs, and hypereutectic pistons for an optimal balance of durability and performance. This isn’t just an engine; it’s a turn-key horsepower solution backed by a dyno-proven results sheet.
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Part Number | BP38318CTC1D |
| Engine Type | Chevrolet Small Block V8 Stroker |
| Displacement | 383 cu. in. / 6.3L |
| Max Horsepower (HP) | 436 HP |
| Max Torque (lb-ft) | 443 lb-ft |
| Compression Ratio | 10.0:1 |
| Engine Block Material | Cast Iron (4-Bolt Main) |
| Crankshaft | New Cast Steel |
| Connecting Rods | Chevy Heavy Beam w/ 150,000 psi Bolts |
| Pistons | Hypereutectic |
| Cylinder Head Material | Aluminum (Raised Exhaust Port: 0.500 in.) |
| Camshaft Type | Hydraulic Roller |
| Camshaft Specs | .544″/.555″ Lift, 230°/236° Duration @ .050″, 110° LSA |
| Valvetrain | Hardened Pushrods, Retainers & Springs; Swirl-Polished Valves |
| Induction | Dual-Plane Satin Finish Intake Manifold |
| Carburetor | 750 CFM Included |
| Ignition | HEI Distributor, Wires, and Plugs Included |
| Oil Pump | Melling High-Volume |
| Balance | External (Rotating Assembly Precision Balanced) |
| Rear Main Seal | 1-Piece |
What’s Included (Dressed Long Block)
| Included | Not Included |
|---|---|
| ✓ Carburetor (750 CFM) | ✗ Flexplate / Flywheel |
| ✓ HEI Distributor | ✗ ECU / Wiring Harness (Not Needed) |
| ✓ Spark Plugs & Wires | ✗ Headers / Exhaust |
| ✓ Aluminum Valve Covers | �Engine Mounts (Vehicle Specific) |
| ✓ Water Pump (Long Style) | �Fuel Pump (Mechanical pump included) |
| ✓ Air Cleaner | |
| ✓ Harmonic Balancer | |
| ✓ Timing Cover | |

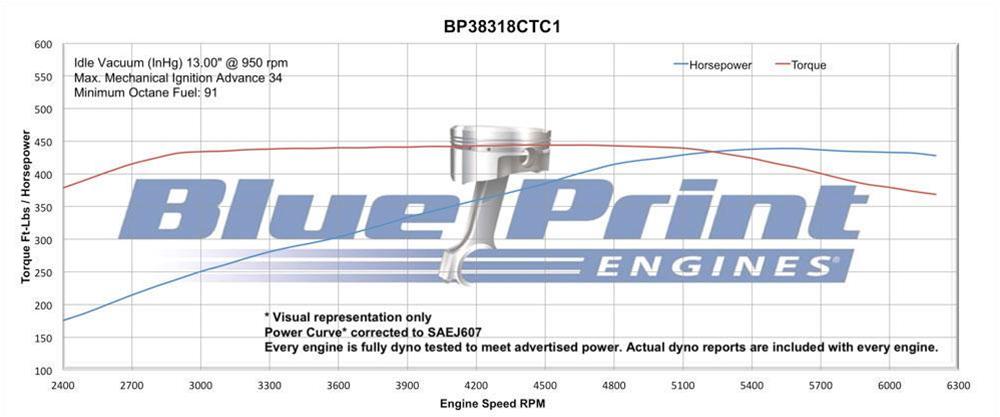

| ✓ Dyno Test Sheet |
Comparison Table: BP38318CTC1D vs. Alternatives
| Feature | BluePrint Engines BP38318CTC1D | Stock GM Crate Engine (e.g., 350/290HP) | DIY Budget 383 Build |
|---|---|---|---|
| Power Output | 436 HP / 443 lb-ft (Dyno-Proven) | ~290 HP / ~320 lb-ft | Unknown (Depends on Parts Selection) |
| Convenience | Fully Dressed & Ready-to-Run | Long Block (Requires Adding Parts) | Requires Sourcing All Components |
| Cylinder Heads | Performance Aluminum Heads | Cast Iron Heads | Varies (Often Rebuilt Stock Heads) |
| Camshaft | Hydraulic Roller (Modern, Low Maintenance) | Hydraulic Flat Tappet | Varies (Often Flat Tappet) |
| Value Proposition | Turn-Key Power, Warranty, Dyno Sheet | OEM Reliability, Lower Power | Lowest Cost, High Risk, No Warranty |
| Ideal For | Enthusiasts wanting max power & convenience | Restorations, stock replacements | Experienced builders on a tight budget |
Frequently Asked Questions (FAQs)
Q1: Is this engine truly ready to run? What else do I need?
A: Yes, it is a “dressed” long block. It includes all critical components. You will need to add a flexplate (for automatic) or flywheel (for manual), engine mounts, headers/exhaust, a throttle cable, and hook up your existing coolant hoses, fuel line, and starter. The mechanical fuel pump is included.
Q2: Will this engine fit under the hood of my [Year] Corvette?
A: No. BluePrint specifically notes this engine will not clear a stock Corvette hood due to the height of the included air cleaner and carburetor setup. A low-profile air cleaner or aftermarket hood may be required for some applications.
Q3: What fuel and octane do you recommend?
A: With a 10.0:1 compression ratio, this engine is designed to run reliably on premium 91-93 octane pump gas. Using lower octane fuel may cause pre-ignition (pinging) and potential engine damage.
Q4: What is the warranty on this crate engine?
A: BluePrint Engines typically offers a 30-month/50,000-mile limited warranty on their crate engines. Always confirm the specific warranty terms at the time of purchase, as policies can be updated.
Q5: The specs mention a “raised exhaust port.” What does this mean for installation?
A: The aluminum heads feature exhaust ports raised 0.5 inches compared to standard heads. This is for improved flow but means some stock exhaust manifolds may not bolt up directly. It is highly recommended to use aftermarket headers designed for aftermarket cylinder heads with raised ports.
Pros and Cons
| Pros | Cons |
|---|---|
| Turn-Key Power: Complete dressed engine with dyno-proven 436 HP. | Clearance Issues: Will not fit under stock Corvette hoods. |
| Premium Components: Includes aluminum heads, hydraulic roller cam, & forged internals. | Raised Exhaust Ports: May require specific headers, limiting stock manifold use. |
| Exceptional Value: Cost-effective compared to a custom build of similar quality. | Premium Fuel Required: 91+ octane fuel is mandatory. |
| Hand-Assembled & Tested: Every engine is balanced, blueprinted, and dyno-tested. | Not Emissions Legal: For off-road/racing use only in most jurisdictions. |
| Strong Warranty: Backed by a robust 30-month/50,000-mile limited warranty. | Weight: Cast iron block is heavier than an all-aluminum engine option. |
Conclusion & Ideal Use Case
The BluePrint Engines BP38318CTC1D 383 Stroker is the definitive power plant for the enthusiast who wants a no-compromise, high-horsepower swap without the hassle and uncertainty of piecing together an engine themselves. It delivers classic cubic inches with modern component reliability.
This engine is ideally suited for:
-
1967-1981 Camaros, Firebirds, and Novas
-
1955-1979 Chevy Trucks and Street Rods
-
1964-1972 Chevelles, El Caminos, and GTOs
-
Any project car where a small block Chevy fits and the goal is substantial, reliable horsepower.
If you’re looking for a proven, turn-key solution that combines brute force with brand-new reliability, this BluePrint Engines 383 Stroker is the perfect heart for your project.
