Description

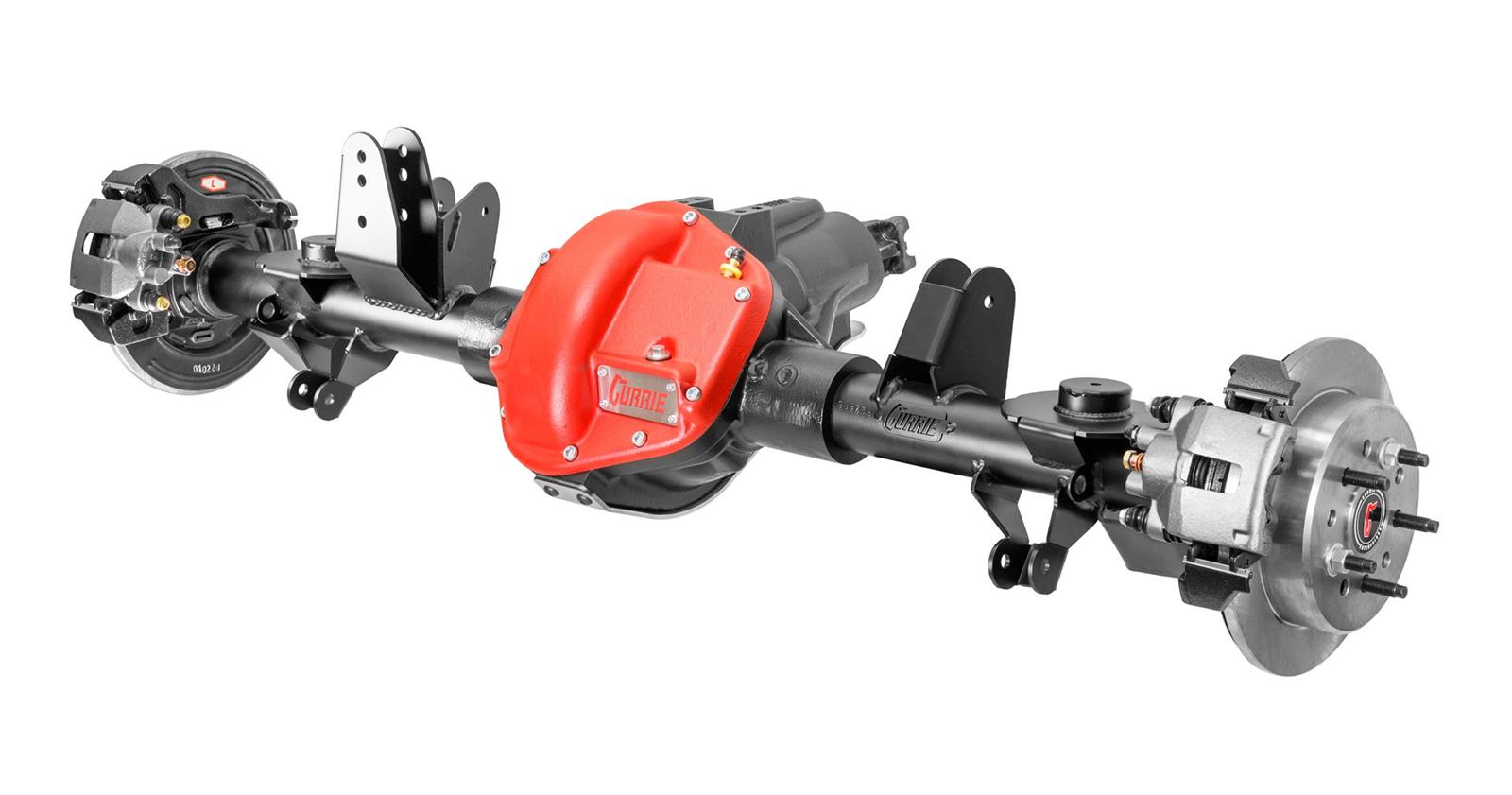

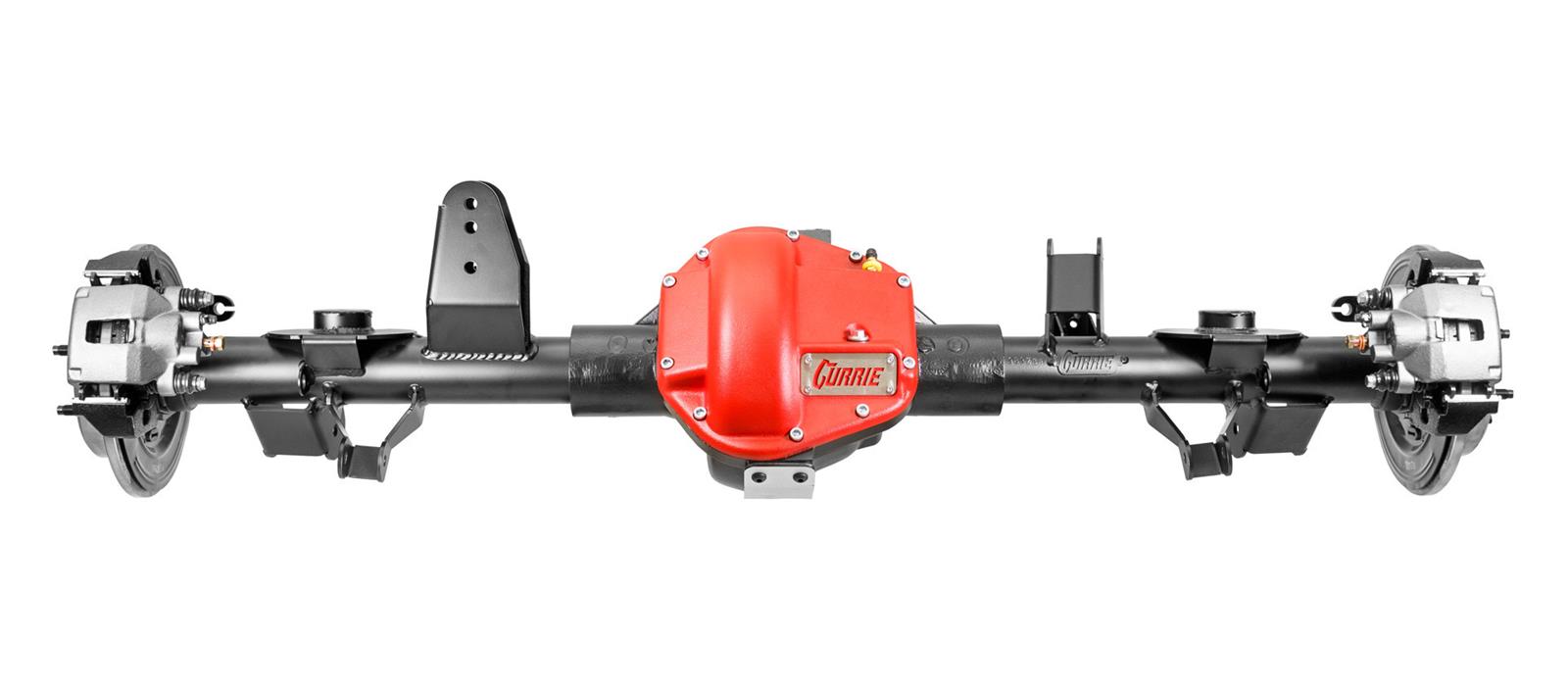

The Currie 60 Crate Axle assembly, part number CE-JR6304A51 (Summit Racing part number CUR-CE-JR6304A51), is a bolt-in axle package with a high-pinion location. It measures 60.50 inches overall and is sold as a kit. The listed configuration includes an ARB Air Locker center section and a 5.13:1 ring-and-pinion set.
This assembly includes 4340 chromoly axle shafts with 35 splines, disc brakes, and wheel studs. The brakes use natural-finish Explorer-series calipers with one piston and solid-surface rotors measuring 11.50 inches in outside diameter. The wheel stud pattern is 5 x 4.50 inches.
- Included: Axle shafts, disc brakes, ring and pinion, and wheel studs.
- Not included: Third member, bearings, and seals.
- Condition: New; not remanufactured.
Currie describes its 60 Crate Axle line as preconfigured for front or rear applications and designed for severe off-road use, V8 horsepower, and tires up to 37 inches tall. The line features a high-pinion nodular-iron center section with a radius bottom, heavy-duty 3-inch tubes, and a stated axle-width increase to 68.75 inches between wheel mounting surfaces. General line information lists 35-spline front axles and 40-spline semi-floating rear axles.
Wheel patterns and spline configurations can vary by application within the Currie 60 line. The specifications for this part list a 5 x 4.50-inch pattern and 35-spline shafts; confirm that these details and the 60.50-inch overall length suit your installation before ordering.
