Description

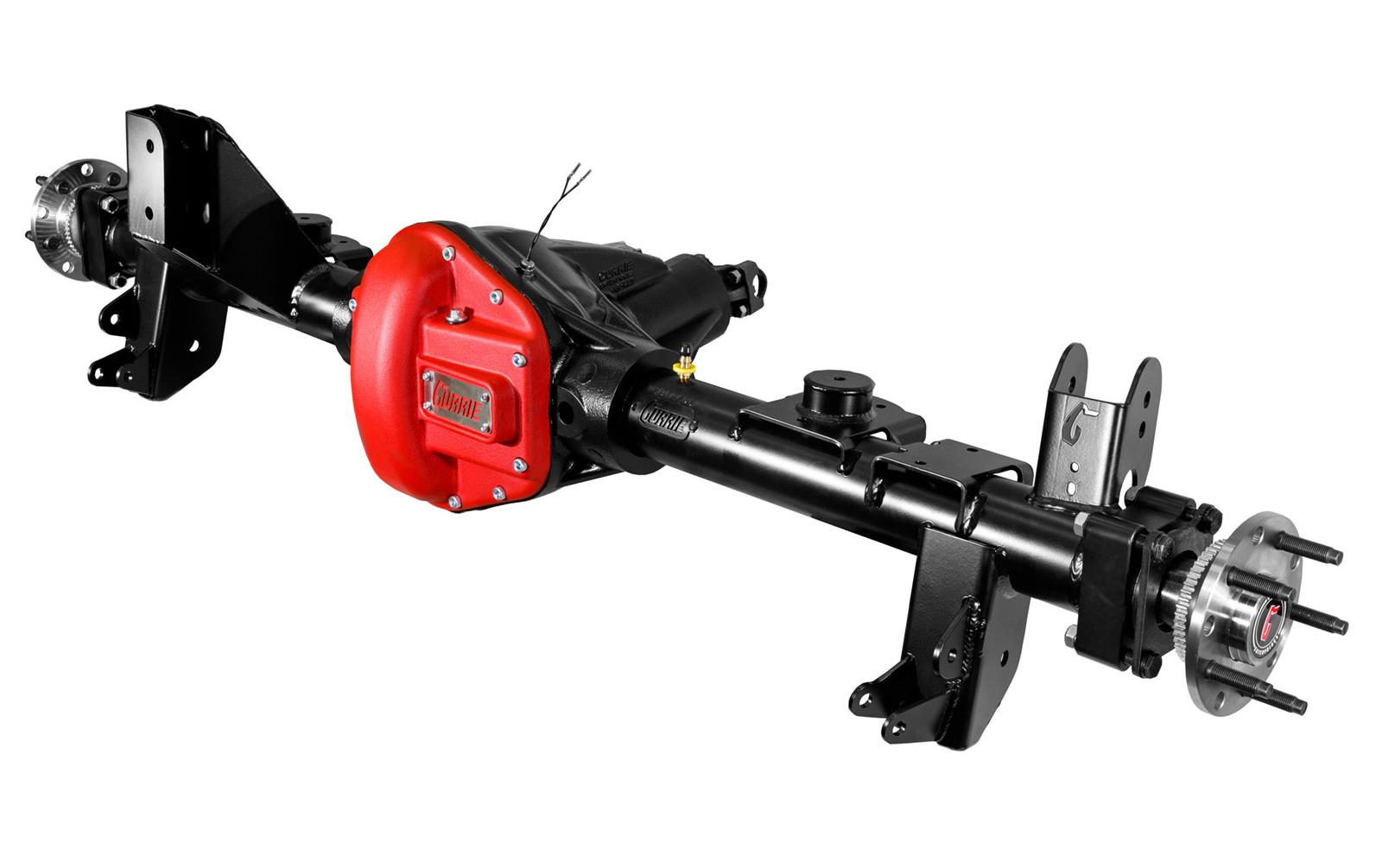

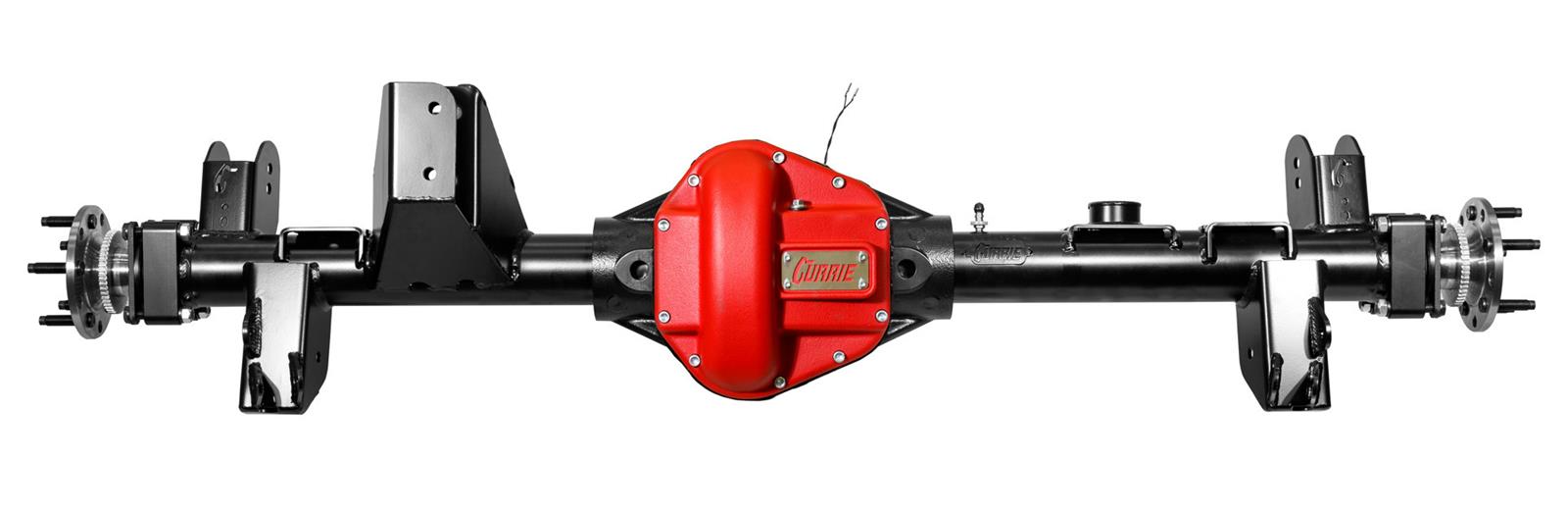

The Currie 60 Crate Axle, part number CE-LR6100E48 (Summit Racing part number CUR-CE-LR6100E48), is a bolt-in axle assembly sold as a kit. Currie 60 crate axles are configured for front or rear applications and are designed for severe off-road use, V8 horsepower, and tires up to 37 inches tall.
This assembly includes the axle shafts, third member, 4.88:1 ring and pinion, bearings, and seals. The axle shafts have 40 splines. The housing is black, and the listed overall length is 68.00 inches. Currie describes the 60 platform as using heavy-duty 3-inch tubes and a high-pinion nodular-iron center section with a radius bottom.
- Wheel pattern: 5 x 5.00 inches
- Wheel stud thread: M14 x 1.5; wheel studs are not included
- Brakes: Not included; specified for disc brakes
- Condition: New, not remanufactured
Currie lists the 60 axle platform at 68.75 inches between wheel mounting surfaces. Its rear configuration is dual-drilled for 5 x 5 and 5 x 5.5-inch patterns; the specifications for this part number list a 5 x 5-inch pattern. Confirm that the listed dimensions and configuration suit your vehicle before ordering.
