Description

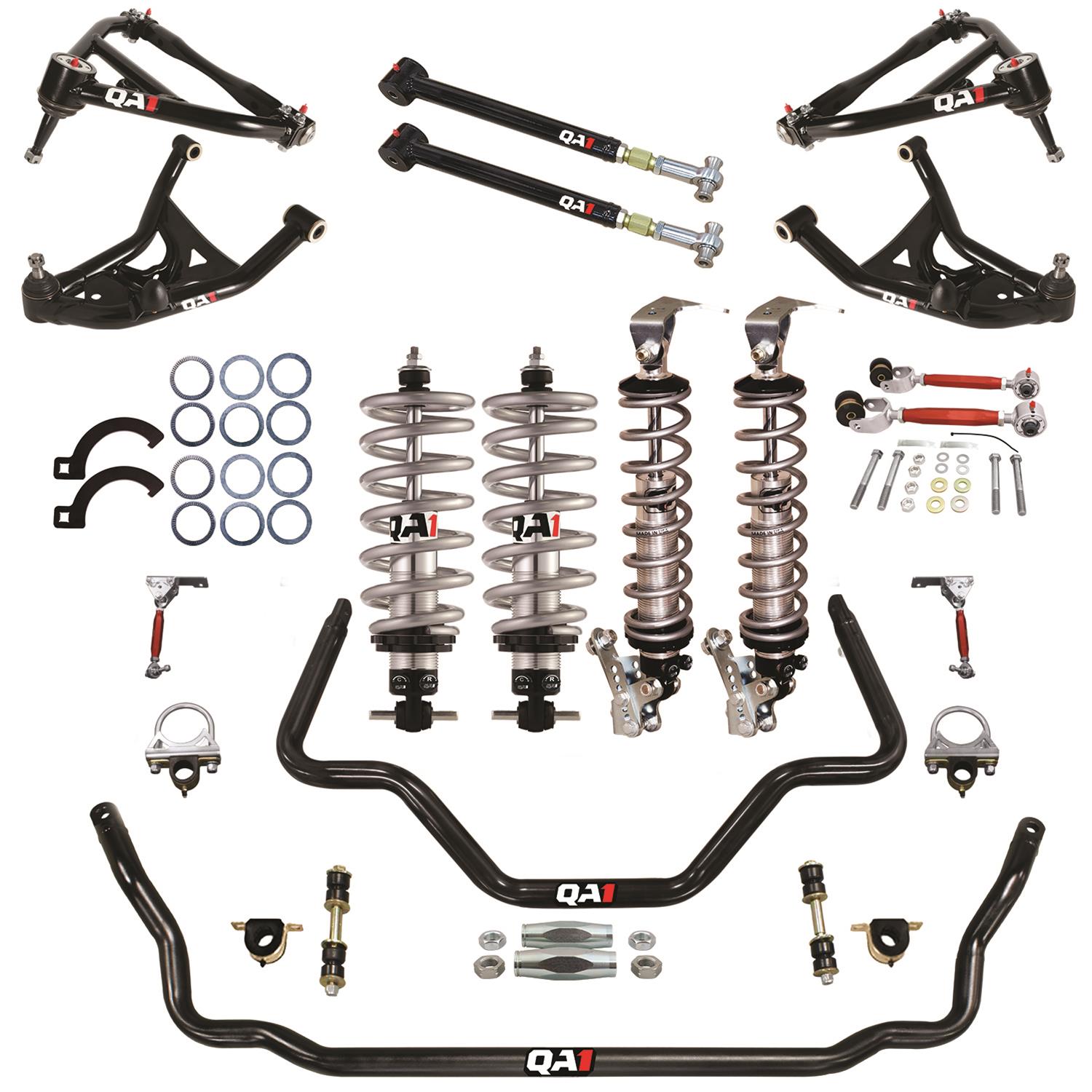

Set up your project for large wheels with the QA1 Level 2 Big Wheel Kit, part number BW02-GMB4 (Summit Racing part number QA1-BW02-GMB4; UPC 806990168658). This bolt-in suspension package is designed to accommodate wheels up to 28 inches and includes front and rear coilovers for adjustable ride height.
Adjust the front ride height by up to 2 inches. At the rear, the kit allows up to 2 inches of lift or up to 3 inches of drop. A spanner wrench is included for making adjustments. The double-adjustable coilovers let you tune compression and rebound separately.
The package also includes tubular steel upper and lower control arms, adjustable upper and lower trailing arms, and black front and rear sway bars. The front bar measures 1.375 inches (34.93 mm) in diameter; the rear bar measures 1.250 inches (31.75 mm). QA1 describes the arms as designed for big-wheel applications with corrected suspension angles, and the adjustable trailing arms allow rear axle positioning in the wheel well.
- Front and rear coil springs and double-adjustable coilovers
- Front and rear sway bars, sway bar bushings, and end link bushings
- Tie rod sleeves, upper and lower control arms, and upper and lower trailing arms
- Mounting hardware; components are powdercoated
The kit works with original factory rear axle housings or Quick Performance 9-inch rear axle housings. It does not include rear leaf springs or rear leaf spring bushings. Brakes, brake lines, spindles, tie rod ends, panhard bar, torque arm, and trailing arm mount braces are also not included. Sold as one kit.
