Description
Scott’s Hot Rods IFS package 31-6768-2MW3R (Summit Racing part number SXH-S9611) is a front independent suspension kit with a 5 x 4 1/2 in. wheel bolt pattern. It includes a natural-finish steel crossmember; welding is required for installation. The package is sold as a kit.

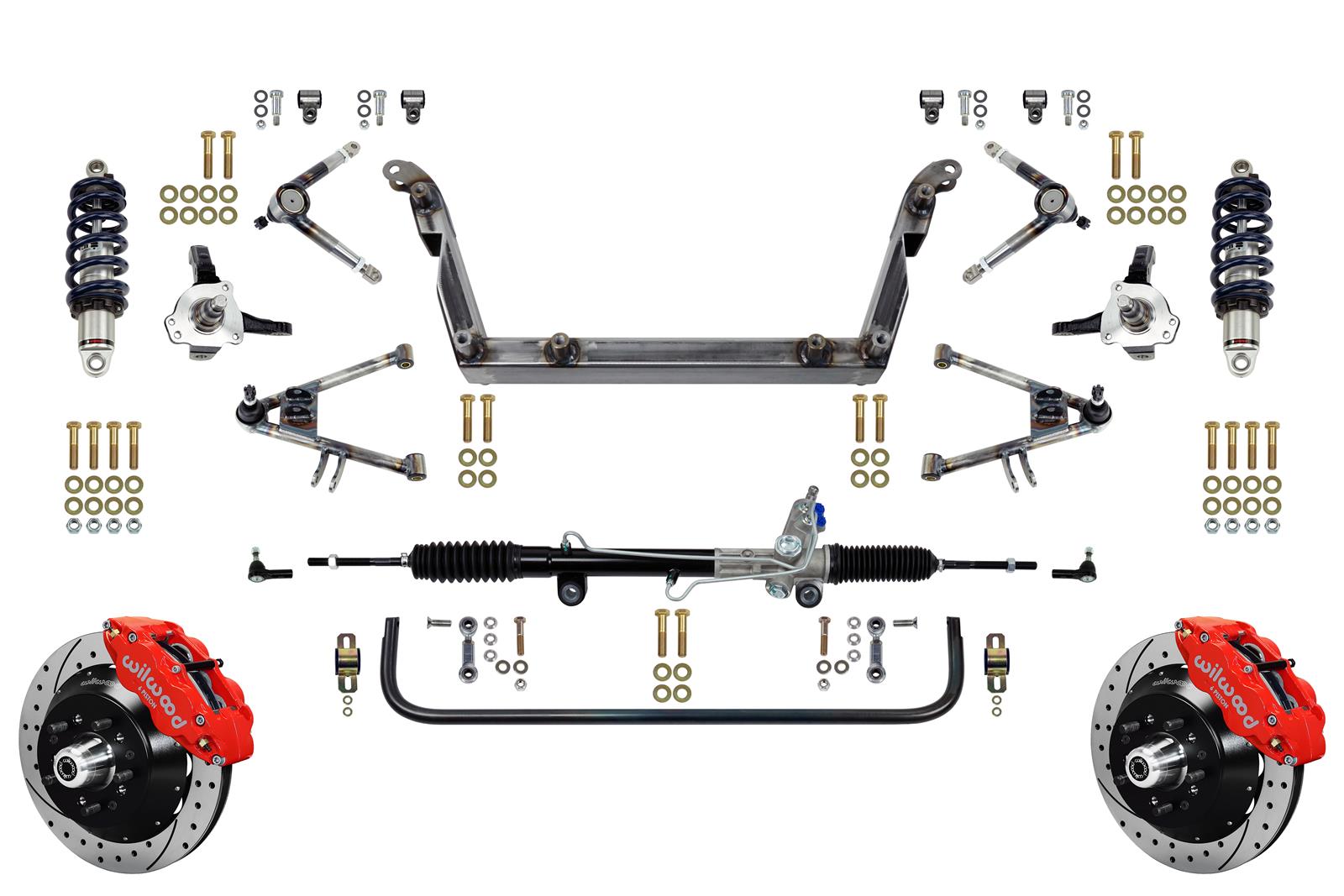

Suspension components include forged-steel natural-finish spindles with a 2 in. drop, tubular steel upper and lower control arms, and upper and lower ball joints. Steering is handled by an included natural-finish aluminum rack with hydraulic power assist. Inner and outer tie-rod ends and tie-rod sleeves are included.
- Coilover shocks and coilover springs are included; the package features Ridetech coilovers.
- A 1.000 in. torsion-spline sway bar is included.
- The disc brake kit is described for manual or power-assist applications and includes 13.00 in. (330.20 mm) vented, cross-drilled/slotted front rotors, red forged-billet-aluminum calipers with six pistons, and brake pads.
Not included are a center link, king pins, king pin bearings, pitman arm, or idler arm. Verify that the package’s wheel bolt pattern and configuration suit your vehicle before ordering; the provided details do not specify a particular chassis fitment.
