Description

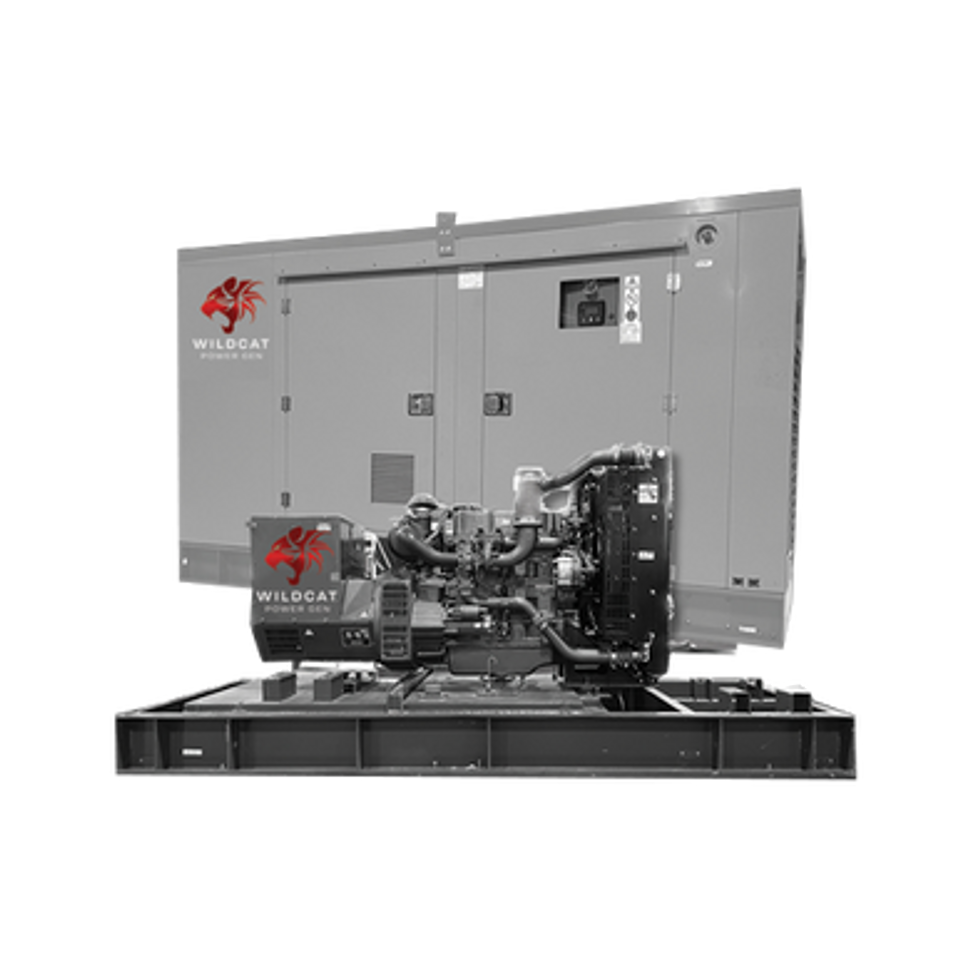

Wildcat Roughneck 60kW Diesel Generator 120/240 Volts Single Phase | RO0060D3AOXE
Rated 56kW 120/240 Volts Single Phase NFPA 110 Level 2 THD < 5%
Wildcat Roughneck Generators—Made in the USA. Hand Built Generators designed and tested for rugged simplicity. Wildcat engineered the 60kW Single Phase Diesel Generator for emergency applications with a prime-rated liquid cooled engine made to run for extended periods during power outages.
- Durable Koel 3.2L Turbocharged & Intercooled 4-Cycle Industrial Powertrain
- Rated for Prime Power.
- Easy to Use Wildcat Digital Controls with Deep-sea Controller
- Open Skid Package—Easy to Service
- Built Tough for Unattended Operation in Harsh Environments
- Exceeds NFPA-110 Level 2
- Liquid-Cooled Tier 3 Diesel Engine
- No-Load to Full-Load Total Harmonic Distortion < 5%
Roughneck 60kW Generator Optional Features (Sold Separately)
- 140-Gallon UL-142A Diesel Fuel Tank for 24 Hour Run Time.

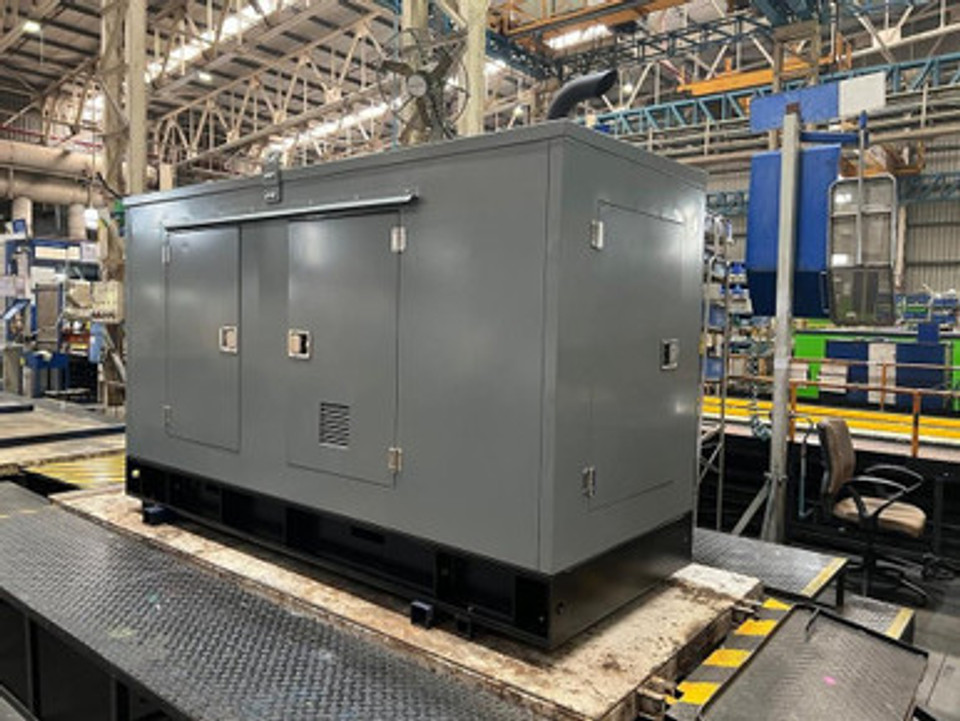

- Cat 5 Hurricane Rated Steel Enclosure
- Military Grade Wiring
Roughneck 60kW Generator Applications
Built for emergency applications, Wildcat equipped the Roughneck 60kW Diesel with a prime-rated industrial powertrain for extended run periods in long power outages.
Wildcat’s Roughneck 60kW Diesel Generator has a durable, 1800 RPM fixed speed engine that combines excellent fuel efficiency with a continuous use rating. The Roughneck Diesel is uniquely at home on farms and ranches, remote locations, and for off grid use in remote locations.
Perfect for disaster relief efforts and powering first responder facilities.
Get Peace of Mind with a world-class American made generator built with industrial-grade components and backed by a 3-year-5000-hour commercial warranty.
Made in the USA, Wildcat Power Gen manufactures the 60kW Diesel Generator at its state-of-the-art facility in Wichita, Kansas.
Wildcat Roughneck 60kW Diesel Generator 120/240 Volts Single Phase | RO0060D3AOXE
Roughneck 60kW Fuel Consumption
| Load | Diesel Gallons per Hour |
| No Load | 1.00 |
| 50% Load | 2.51 |
| Full Load | 4.94 |
Product Specifications
Model
Model Number; RO0060D3AXE
Manufacturer; WildCat
Made In USA; Yes
Rated Watts; 56kW
Rated Amps; 233 Amps
Voltage; 120/240 Volts
Enclosure: Open Skid Design—Optional Hurricane Rated Steel Enclosure Sold Separately
Decibel Rating; 72 dBA No Load
Type; Prime Power
Series Name; Roughneck
Features
Starting System; Electric Start
Low Oil Alert; Low Oil Shutdown
Mainline Breaker; 250 Amps
Battery Requirement; 12-Volt 900 CCA
Mounting Pad; Prepared Site Required
Weight; 3353 Pounds
Dimensions; 108.78L x 41.78W x 71.34H Inches
Warranty Information
Consumer Warranty; WildCat 3-Year 5000-Hour Limited Warranty
Commercial Warranty; WildCat 3-Year 5000-Hour Limited Warranty
Engine
Engine Brand; KOEL
Engine Size; 3.2 Liter Turbocharged & Intercooled Inline 4 Cylinder
Engine RPM; 1800
Cast Iron Sleeve; Cast Iron Engine
Cooling System; Liquid Cooled
Alternator
Alternator Type; Brushless 12-Lead
Frequency; 60 Hertz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Ultra Low Sulphur Diesel
Fuel Tank Material; Optional Steel Fuel Tank
Fuel Tank Size; 140 Gallon Optional Tank
Run Time (50% Load); 55 Hours
