Bell & Gossett Series 1531 3BC 7.5HP Pump | Ultimate Product Guide

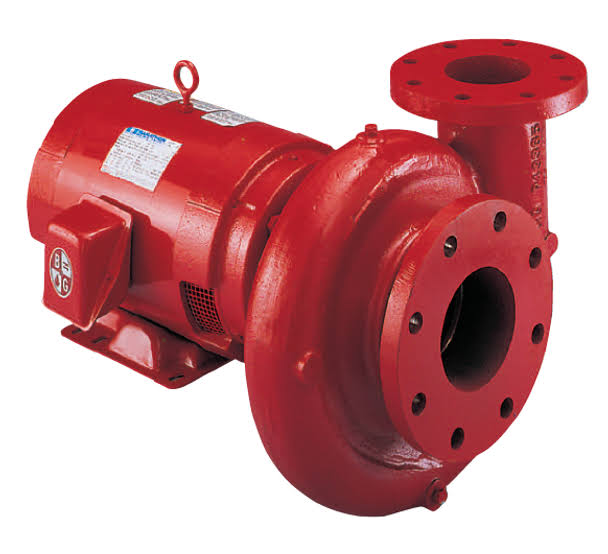

The Bell & Gossett Series 1531 Model 3BC is a heavy-duty, end-suction centrifugal pump engineered for the most demanding commercial and industrial applications. This 7.5 HP, 1750 RPM workhorse is designed to move massive volumes of water—up to 2300 GPM—with heads to 400 feet, making it ideal for large-scale hydronic systems, cooling towers, and industrial process water.

Its defining feature is the back pullout design, which allows for complete maintenance of the seal, bearing, and impeller assembly without disconnecting the motor or piping. Built with a heavy-duty cast iron volute rated for 175 PSI and featuring an enclosed, balanced impeller for vibration-free operation, the Bell & Gossett Series 1531 represents a benchmark for reliability, serviceability, and performance in critical fluid handling systems.

Detailed Technical Specifications

Key Engineering Features

• Back Pullout Design: Enables full seal and bearing maintenance without moving the motor or pump volute.

• Self-Flushing Mechanical Seal: Flushes the seal faces with system fluid to prevent clogging and extend life.

• Enclosed, Balanced Impeller: Computer-balanced for smooth, quiet, and vibration-free performance.

• Jacking Bolts: Simplify disassembly of the volute for service, even after years of operation.

• Gauge Tappings: Allow for easy connection of pressure gauges for system diagnostics.

• Hydrostatic Testing: Every pump is tested at the factory to ensure integrity and leak-free operation.

B&G 1531 vs. Other Industrial Pumps: Comparison Table

This table highlights the position of this industrial workhorse.

Frequently Asked Questions (FAQ)

Q1: What does “bronze-fitted” mean?
A: This indicates that key wear components—specifically the impeller and the shaft sleeve—are made of bronze. This provides superior corrosion resistance in water applications compared to all-iron construction, significantly extending the pump’s service life.

Q2: What is the major advantage of the back pullout design?
A: This is a critical feature for minimizing downtime and maintenance costs. It allows a technician to remove the entire rotating assembly (impeller, shaft, bearings, seal) by simply unbolting the cartridge and pulling it straight back. The motor stays perfectly aligned on its base, and the piping remains undisturbed.

Q3: Is this pump suitable for potable water?
A: While the “bronze-fitted” construction offers better corrosion resistance, the primary pump volute is still cast iron, which can rust and is not certified for potable water. This pump is designed for non-potable applications like closed-loop heating/chilling, condenser water, cooling towers, and industrial process water.

Q4: Why choose a 1750 RPM motor over 3500 RPM?
A: A 1750 RPM motor operates at a slower, less stressed speed. This results in longer bearing and seal life, significantly quieter operation, reduced wear on all components, and often better energy efficiency for a given duty point compared to a noisier, higher-wear 3500 RPM pump.

Q5: What are “jacking bolts” used for?
A: Jacking bolts are small bolts threaded into the volute that, when tightened, apply even pressure to separate it from the bearing frame. This is invaluable for disassembling the pump after years of service when the components may be “frozen” together from corrosion or scale, preventing damage during maintenance.

Q6: What is required for proper installation?
A: This is a base-mounted pump. It must be installed on a solid, level foundation (like a concrete pad) and grouted in place to ensure stability and perfect alignment between the pump and motor. Professional installation is mandatory.

Pros and Cons

Pros:

• Exceptional Serviceability: The back pullout design and jacking bolts make maintenance faster, easier, and far less costly in terms of labor.

• Industrial Strength: Built with heavy-duty cast iron and bronze fittings for maximum durability and a long service life in harsh environments.

• High Performance: Capable of handling extremely high flow rates and pressure demands.

• Smooth & Quiet Operation: The balanced impeller and 1750 RPM speed ensure low vibration and noise levels.

• Proven Reliability: A classic, time-tested design from a world-leading brand in fluid handling.

• Factory Tested: Hydrostatic testing guarantees a leak-free volute upon delivery.

Cons:

• Not for Potable Water: Cast iron construction makes it unsuitable for drinking water systems.

• High Initial Cost: Industrial-grade performance and features come with a higher upfront investment.

• Space Requirements: The foot-mounted design has a larger footprint than in-line pumps.

• Professional Installation Required: Must be base-mounted and grouted for proper operation, requiring skilled technicians.

• Standard Efficiency: Lacks the energy-saving benefits of modern, premium-efficient motor designs.

Conclusion & Best Applications

The Bell & Gossett Series 1531 Model 3BC is a heavyweight champion of industrial pumping, designed for reliability and ease of maintenance in critical, high-demand scenarios. It is the ideal choice for system designers and facility managers who prioritize uptime and long-term serviceability.

You should choose this pump if:

• You need a pump for large commercial HVAC systems, industrial plants, or cooling towers.

• Ease of maintenance and minimal downtime are critical operational requirements.

• You require high flow and high head capabilities.

• The application involves non-potable water or other fluids compatible with cast iron and bronze.

For the most demanding applications where failure is not an option, the service-friendly and robust design of the B&G Series 1531 pump makes it an outstanding investment.

Disclaimer: This pump requires professional installation on a solid foundation. It is designed for non-potable applications. Always ensure the pumped fluid is compatible with the pump’s construction materials (cast iron, bronze).
