Description

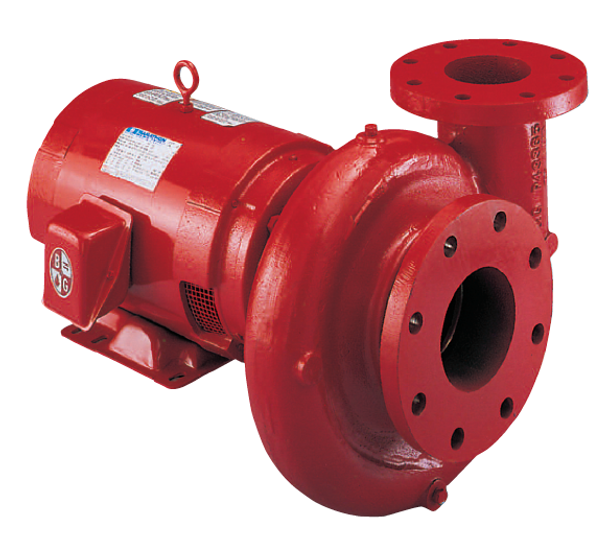

For heavy-duty industrial and large commercial applications requiring maximum durability and serviceability, the Bell & Gossett Series 1531 4BC base-mounted circulator delivers uncompromising performance. This robust 5 HP pump is engineered for continuous-duty operation in central plants, industrial processes, and large campus systems where reliability and easy maintenance are critical. The base-mounted design with separate motor and coupling provides exceptional service access, making it the preferred choice for applications where minimizing downtime is essential.
The pump features industrial-grade cast iron construction with a bronze impeller, built to withstand the most demanding operating conditions and extended service life. The 1750 RPM motor speed provides optimal balance between performance and longevity, delivering strong pumping capability while reducing wear on bearings and mechanical seals. Unlike inline circulators, the Series 1531’s coupled design allows for straightforward component replacement and maintenance without disturbing the hydraulic piping system. For system design guidance, read our blog on [Selecting Base-Mounted Pumps for Industrial Applications].
As part of Bell & Gossett’s heavy-duty Series 1531 line, this pump continues a tradition of industrial-grade performance that mechanical engineers and facility managers have trusted for critical infrastructure. From district energy systems and manufacturing processes to large institutional facilities, the 4BC model provides the reliable, serviceable circulation that keeps essential systems operating efficiently. Learn about its advantages in our article [The Role of Base-Mounted Pumps in Modern Industrial Facilities].
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bell & Gossett Series 1531 4BC |
| Motor Power | 5 HP (3.7 kW) |
| Speed | 1750 RPM |
| Connection Size | 3″ Flange x 3″ Flange |
| Impeller Material | Bronze |
| Housing Material | Cast Iron |
| Shaft Seal | Mechanical Seal |
| Max Head | 110 ft (33.5 m) |
| Max Flow | 500 US gpm (1893 L/min) |
| Max Operating Pressure | 175 psi (12.1 bar) |
| Max Fluid Temperature | 250°F (121°C) |
| Voltage | 208-230/460V, 3-Phase |
Comparison Table: B&G Series 1531 vs. Alternative Solutions
| Feature | B&G Series 1531 4BC | Large Inline Circulators | Vertical Turbine Pumps |
|---|---|---|---|
| Serviceability | Excellent (Easy Component Access) | Limited (Cartridge Replacement) | Poor (Requires Pulling) |
| Maintenance Cost | Low (Individual Component Repair) | Moderate (Complete Cartridge) | High (Specialized Service) |
| Footprint | Large Horizontal | Compact Inline | Small Floor Space |
| Motor Flexibility | Any NEMA Frame Motor | Fixed Motor Design | Integral Motor |
| Noise Level | Moderate | Quieter | Moderate |
| Initial Cost | Competitive for HP | Higher | Higher |
Frequently Asked Questions (FAQs)
Q1: What applications require a 5 HP base-mounted circulator like the Series 1531?
This pump is designed for large-scale applications including central utility plants, district heating/cooling systems, industrial process circuits, major institutional campus loops, and high-rise building primary systems where both substantial flow volume and high head pressure are required simultaneously.
Q2: What is the advantage of the 1750 RPM motor speed?
The 1750 RPM speed provides an optimal balance of performance and longevity. It delivers strong pumping capability while operating at a slower, quieter speed than 3500 RPM motors, which reduces wear on bearings, seals, and the impeller, leading to extended service life and reduced maintenance.
Q3: What supporting equipment is required for this pump?
Proper installation requires a substantial concrete pad or structural steel base, heavy-duty pipe supports to handle the weight and hydraulic forces, a motor starter with overload protection, and vibration isolation. The pump requires a coupling guard for safety compliance. For installation guidance, see our [Industrial Pump Installation and Commissioning Guide].
Q4: Can this pump be used with variable frequency drives (VFDs)?
Yes, the 3-phase motor is ideal for VFD operation. Pairing with a VFD allows for precise speed control to match system demand, resulting in significant energy savings, soft starting to reduce electrical stress, and enhanced system control. For optimized performance, consider a [Bell & Gossett VFD and Pump Package].
Q5: What maintenance does this industrial circulator require?
Routine maintenance includes motor bearing lubrication per manufacturer schedules, periodic coupling alignment checks, mechanical seal inspection, and vibration analysis. The separate motor and pump design makes all these maintenance tasks more accessible than with integral designs.
Pros and Cons
| Pros | Cons |
|---|---|
| Exceptional Serviceability with separate components | Large Footprint requires significant space |
| Industrial Durability for long service life | Higher Initial Cost than inline circulators |
| Flexible Motor Replacement with standard NEMA frames | Requires Precise Coupling Alignment |
| 3-Phase Efficiency for lower operating costs | Periodic Maintenance Required (lubrication, alignment) |
| Ideal for VFD Integration and energy optimization | Not for Small Commercial Buildings – significantly oversized |
| Proven B&G Hydraulic Performance | Heavy Weight requires structural support |
Conclusion & Ideal Use Cases
The Bell & Gossett Series 1531 4BC 5 HP base-mounted circulator represents the industrial-grade solution for applications where serviceability, durability, and continuous operation outweigh space and initial cost considerations. Its robust construction and accessible design ensure minimal lifetime cost for critical circulation duties.
This pump is essential for:
-
Central Utility Plants: Primary chilled and hot water circulation
-
Industrial Processes: Manufacturing and process cooling systems
-
District Energy Systems: Campus and community energy distribution
-
Large Institutional Facilities: Hospitals, universities, and government complexes
For standard commercial buildings with space constraints, a [Bell & Gossett e-Series Inline Circulator] may be more appropriate. However, for critical industrial and plant applications where minimizing future downtime is paramount, the Series 1531 provides unmatched serviceability and long-term value. For detailed performance data and installation requirements, consult the Bell & Gossett Series 1531 Engineering Manual (External Link).
Contact our industrial pump specialists today for application engineering, performance curve analysis, and to discuss complete package solutions including baseplate, coupling, and guard.
