Description
Product Overview

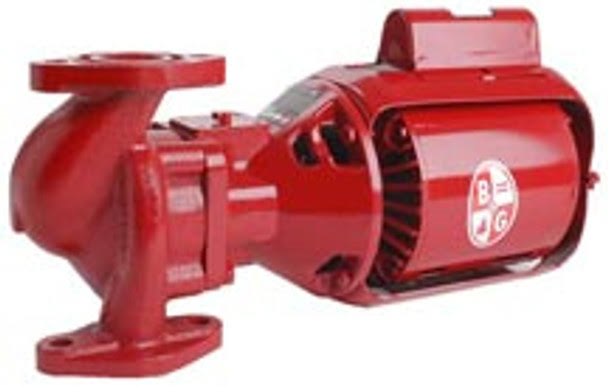

The Bell & Gossett 102210 is a compact, high-efficiency circulator from the Series HV NFI line, specifically engineered for low-flow, high-head applications in commercial and residential hydronic systems. This “Non-Flanged Inline” pump is perfect for tasks requiring precise fluid control, such as zone circulation, injection pumping, and heat exchanger loops where standard circulators are oversized.
Constructed with a durable bronze body and featuring a high-temperature mechanical seal, this circulator offers excellent corrosion resistance for long-term reliability. Its compact, inline design allows for easy installation in tight spaces, while the threaded connections simplify integration into existing piping systems. With a fractional 1/25 HP motor, this pump delivers just the right amount of power for specialized applications, ensuring energy-efficient operation without over-pumping the system.
For applications demanding precision, reliability, and compact design, the Bell & Gossett Series HV NFI circulator provides professional-grade performance in a space-saving package.
Technical Resources & Guides
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Part Number | 102210 |
| Series | Bell & Gossett Series HV |
| Model Type | NFI (Non-Flanged Inline) |
| Motor HP | 1/25 HP |
| Motor Speed | Single-Speed |
| Voltage | 120V, 1-Phase |
| Connection Size | 3/4″ Female NPT |
| Connection Type | Threaded |
| Maximum Working Pressure | 125 PSI / 8.6 Bar |
| Maximum Temperature | 240°F / 116°C |
| Construction – Body | Bronze |
| Construction – Impeller | Composite |
| Shaft Seal | Mechanical Seal |
| Mounting | Inline, pipe-mounted |
What’s Included
| Included | Not Included / Required Separately |
|---|---|
| ✓ Complete Circulator Assembly | ✗ Pipe Sealant/Teflon Tape |
| ✓ 3/4″ NPT Threaded Connections | ✗ Isolation Valves |
| ✓ Mechanical Seal | ✗ Power Cord |
| ✗ Mounting Support (if needed) |
🛠️ Recommended for a Complete Installation
-
Isolation: Bell & Gossett 3/4″ Union Isolation Valves
-
Control: Taco Zone Control Panel
-
Accessories: Circulator Mounting Bracket
Comparison Table: Series HV NFI vs. Alternative Pumps
| Feature | Bell & Gossett Series HV NFI | Standard Circulator | ECM Smart Circulator |
|---|---|---|---|
| Application | Low-Flow, High-Head Specialized | General Hydronic Circulation | High-Efficiency Systems |
| Size | Compact, Space-Saving | Standard Size | Standard Size |
| Efficiency | Good for Application | Standard | Excellent |
| Control | Single-Speed | Single/Multi-Speed | Variable Speed |
| Cost | Specialized Application Pricing | Budget-Friendly | Premium |
| Ideal For | Zone Control, Injection Pumping | Main System Circulation | Energy-Conscious Applications |
Frequently Asked Questions (FAQs)
Q1: What does “NFI” stand for in the model designation?
A: NFI stands for “Non-Flanged Inline,” indicating this pump features threaded (NPT) connections instead of flanged connections, making it ideal for smaller pipe sizes and simpler installations.
Q2: What are typical applications for this small circulator?
A: The Series HV NFI is perfect for:
-
Zone control in hydronic heating systems
-
Injection pumping for temperature control
-
Heat exchanger loops
-
Solar thermal systems
-
Small booster applications
Q3: Is this pump suitable for potable water systems?
A: While bronze construction is often used in potable water applications, you should verify NSF/ANSI 61 certification for this specific model before using in drinking water systems.
Q4: What maintenance does this circulator require?
A: Maintenance includes:
-
Periodic inspection for leaks at the mechanical seal
-
Ensuring proper system water quality
-
Checking electrical connections
-
Verifying proper operation through system monitoring
Q5: How do I determine if this pump is properly sized for my application?
A: Proper sizing requires calculating your system’s specific requirements:
-
Flow rate (GPM)
-
Head loss (feet)
-
Temperature parameters
Consult with a hydronic systems professional for accurate sizing.
Internal Link: Learn more about specialized pumping applications in our guide Injection Pumping Techniques.
Pros and Cons
| Pros | Cons |
|---|---|
| Compact Design: Ideal for space-constrained installations | Limited Application Scope: Designed for specific low-flow uses |
| Bronze Construction: Excellent corrosion resistance | Low HP: Not suitable for main system circulation |
| Energy Efficient: Right-sized power for specialized applications | Single-Speed: Lacks modern variable speed capabilities |
| Easy Installation: Threaded connections simplify integration | Specialized Use: May be overkill for general circulation needs |
| Professional Grade: Bell & Gossett quality and reliability | Cost: Higher than basic fractional HP circulators |
Conclusion & Ideal Use Case
The Bell & Gossett 102210 Series HV NFI circulator excels in specialized applications where precision, compact size, and reliability are paramount. It’s the ideal solution for sophisticated hydronic systems requiring accurate fluid control.
This pump is perfectly suited for:
-
Zone control in multi-zone heating systems
-
Injection pumping for temperature modulation
-
Heat exchanger primary/secondary loops
-
Solar thermal system circulation
-
Small commercial HVAC applications
If you need a precision circulator for specialized low-flow applications and value compact design and professional-grade quality, the Bell & Gossett Series HV NFI is an excellent choice.
🔗 Official Technical Resource
For complete technical specifications, performance curves, and installation instructions, visit the Bell & Gossett Product Documentation Portal for the most accurate and up-to-date information.
