Description

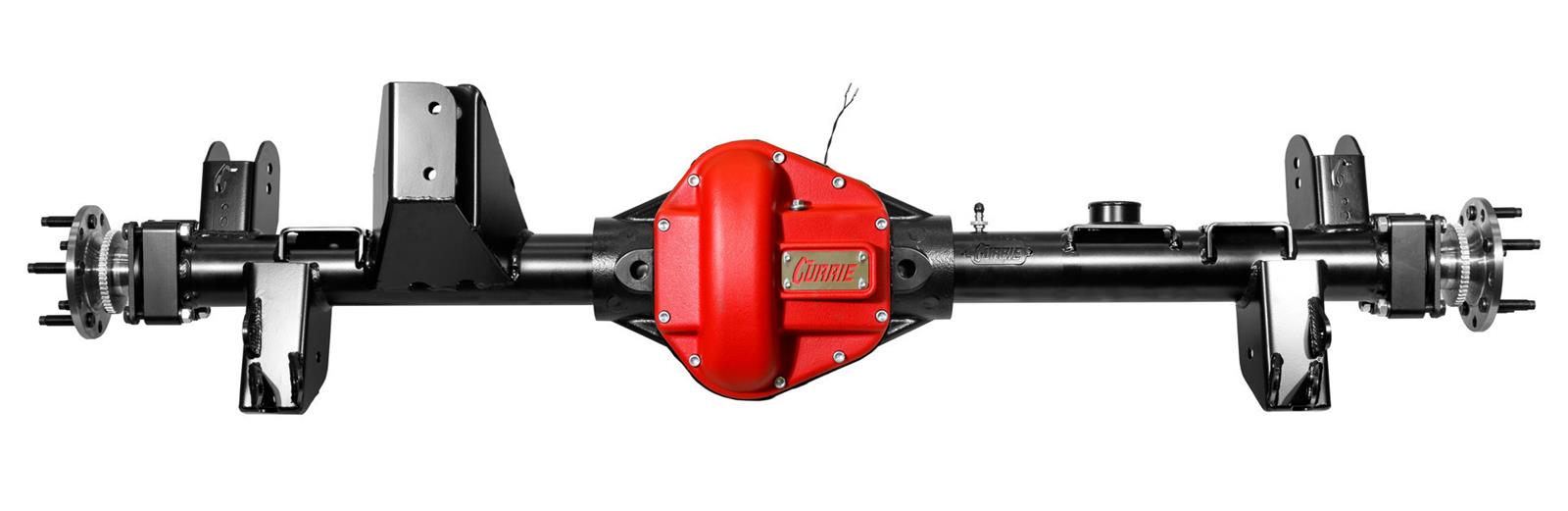

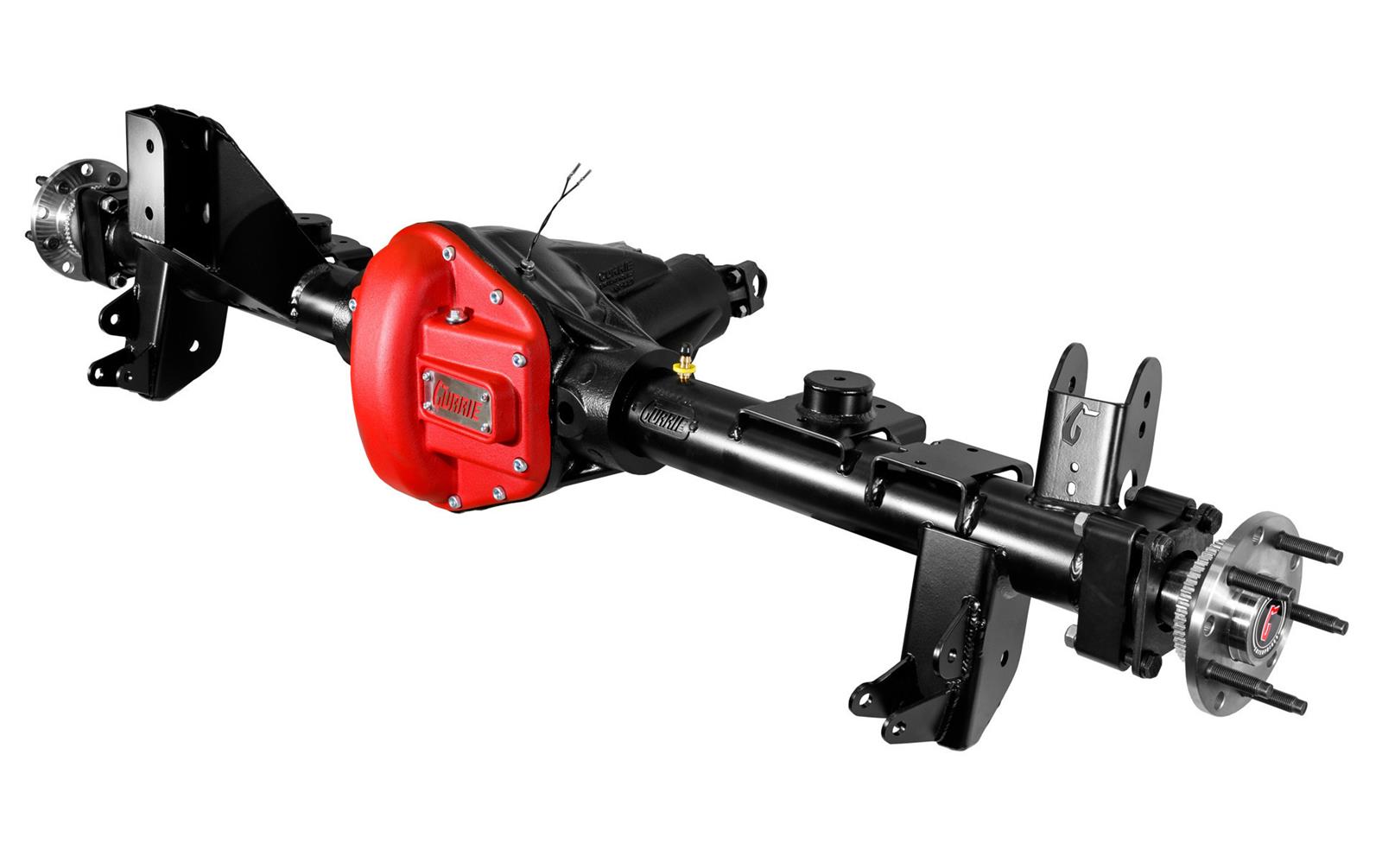

The Currie 60 Crate Axle Assembly (manufacturer part number CE-KR6100E48; Summit Racing part number CUR-CEKR6100E48) is a black, bolt-in axle package configured with a 4.88:1 ring and pinion. Currie’s 60 crate axles are designed for severe off-road use, V8 horsepower and tires up to 37 inches tall.
Currie’s design features a high-pinion nodular iron center section with a radius bottom to help slide over obstacles, plus heavy-duty 3-inch tubes. The crate axle lineup is offered for front and rear applications and is described as a direct bolt-in package. Its axle width is increased to 68.75 inches between wheel-mounting surfaces for clearance with larger tires.
- Overall length: 65.38 inches
- Axle shafts included; 40-spline configuration
- Third member, ring and pinion, bearings and seals included
- Ring and pinion ratio: 4.88:1
- Wheel stud pattern: 5 x 5.00 inches; 1/2-inch-20 thread size
- Disc-brake type; brakes and wheel studs are not included
- New, not remanufactured; sold as a kit
Currie describes its axle lineup as using full 35-spline inner and outer front axles and 40-spline semi-floating rear axles. The front configuration has a 5 x 5.5-inch lug pattern; the rear is dual-drilled for 5 x 5-inch and 5 x 5.5-inch patterns. The specifications listed for this assembly identify a 5 x 5.00-inch stud pattern.
