Description
Overview
Brand: Hughes Performance
Manufacturer’s Part Number: 28-3-69B2D
Part Type: Automatic Transmissions
Product Line: Hughes Performance Competition Transmissions
Summit Racing Part Number: HUP-28-3-69B2D
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,500
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Tailshaft Length (in.): 1.625 in.
Input Spline Quantity: 30
First Gear Ratio (Automatic Transmissions): 1.69
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Shield Built In: Yes
Flexplate Shield Built In: Yes
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1/30.1
Remanufactured: Yes
Quantity: Sold individually.
Notes: SFI 4.1 safety liner included. Long style. Billet planetary with 9310 gears.

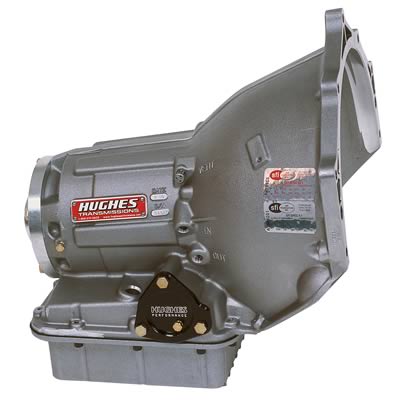

Hughes Performance Competition Transmissions
Hughes Performance competition transmissions deliver exceptional strength and reliability under the most demanding conditions. In addition, these units are built using state-of-the-art performance components to ensure maximum durability. Each transmission is carefully inspected and assembled to precise tolerances, resulting in consistent quality and dependable operation.
Furthermore, these transmissions are equipped with reverse-pattern or, in some cases, forward-pattern valve bodies to provide firm, quick, and accurate shifts. As a result, drivers benefit from improved control and performance on the track. They also feature Hughes “Pro III” trans-brake valve bodies, which enhance launch consistency and overall race performance.
Most importantly, these transmissions are engineered to withstand repeated high-stress runs. Therefore, they are an excellent choice for racers who demand durability, precision, and long-lasting performance under extreme conditions.
