Description
Product Overview

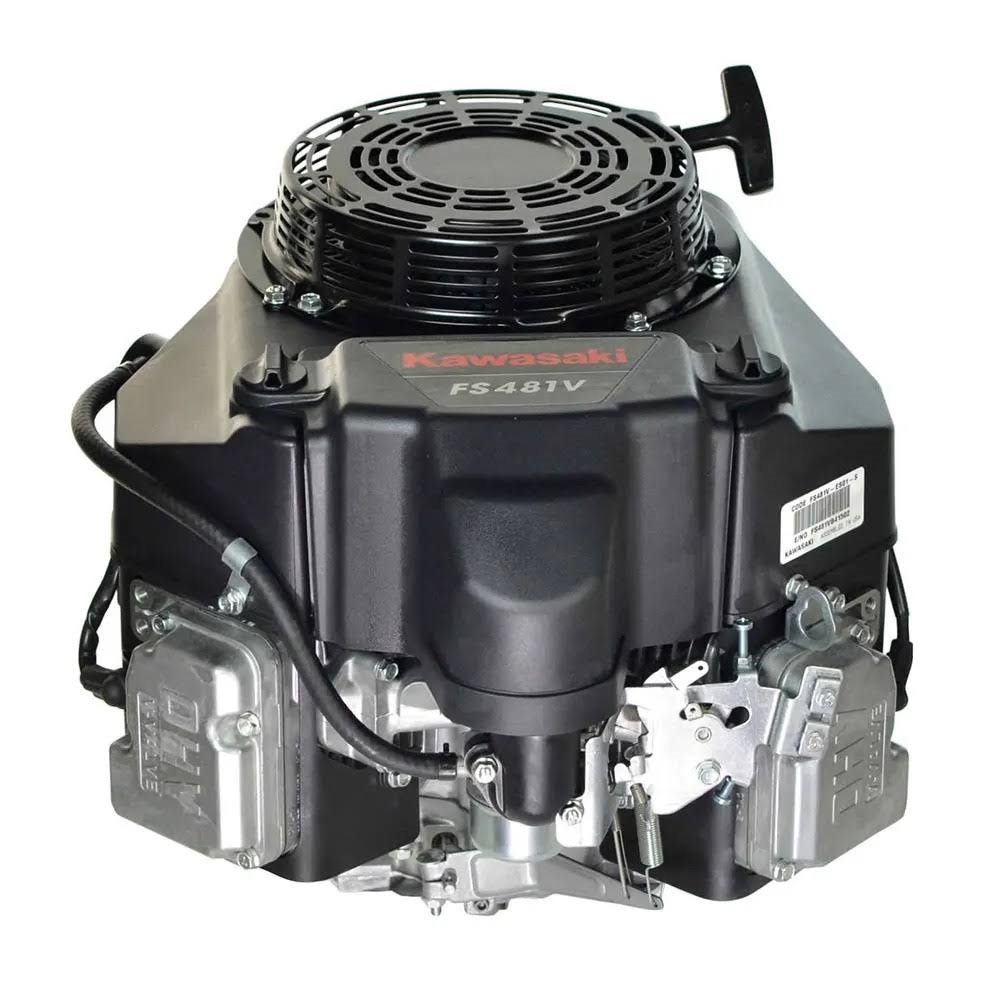

The Kawasaki FS481V S01/S (ES01S) is a premium commercial-grade, vertical shaft engine designed for demanding applications in the turf care industry. As a 16 HP V-twin powerhouse, it delivers the smooth, reliable performance that professional landscapers and golf course managers depend on for daily operation. This engine is a direct-fit replacement for high-end zero-turn mowers, commercial walk-behinds, and other heavy-duty turf equipment.
Built with Kawasaki’s renowned engineering excellence, the FS481V features a durable overhead valve (OHV) design that maximizes efficiency and engine life while reducing noise and emissions. The V-twin configuration provides exceptional torque and smooth operation, significantly reducing vibration for less operator fatigue. While this specific S01/S model is typically air-cooled, the FS481 platform also includes liquid-cooled variants, showcasing its advanced design for extreme-duty cycles.
When your equipment requires uncompromising power and legendary Kawasaki reliability, the FS481V ES01S engine delivers the performance needed to tackle the toughest mowing conditions season after season.
📚 Engine Resources & Guides
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Model Code | FS481V-S01-S (ES01S) |
| Engine Series | Kawasaki FR / FS V-Twin Series |
| Horsepower | 16 HP |
| Displacement | 481 cc |
| Cylinders | 2 (V-Twin Configuration) |
| Shaft Orientation | Vertical |
| Shaft Size & Type | 1-1/8″ Diameter, Keyway (Length varies – confirm application) |
| Cooling System | Air-Cooled (with pressurized oil system) |
| Valve System | Overhead Valve (OHV) |
| Starter Type | Electric Start (Standard) |
| Fuel Type | Unleaded Gasoline (87 Octane Minimum) |
| Oil Capacity | Approx. 1.9 Liters (2.0 US Quarts) |
| Governor Type | Mechanical |
| Standard Equipment | Oil Alert Low-Oil Shutdown, Dual Element Air Cleaner |
What’s Included (Typical Replacement Engine)
| Included | Not Included / Required Separately |
|---|---|
| ✓ Complete Long Block Assembly | ✗ Muffler / Exhaust System |
| ✓ Electric Starter Motor | ✗ Ignition Switch & Key |
| ✓ Carburetor & Air Cleaner Assembly | ✗ Wiring Harness |
| ✓ Fuel Pump | ✗ Engine Mounting Hardware |
| ✓ Oil Alert Sensor | �Spark Plugs |
🛠️ Recommended Replacement Parts & Accessories
-
Air Filter: Kawasaki 49065-7008 Dual Element Air Filter
-
Oil Filter: Kawasaki 49065-7006 Spin-On Oil Filter
-
Spark Plugs: NGK BPR5ES Spark Plug (Set of 2)
Comparison Table: Kawasaki FS481V vs. Common Competitors
| Feature | Kawasaki FS481V ES01S | Common Competitor V-Twin |
|---|---|---|
| Engine Design | V-Twin, OHV, Commercial Duty | V-Twin, OHV |
| Durability | Exceptional (Commercial Rated) | Good (Commercial/Heavy-Duty) |
| Vibration | Very Low (Smooth V-Twin operation) | Low |
| Parts Availability | Excellent (OEM & Aftermarket) | Good |
| Fuel Efficiency | Excellent (Advanced OHV design) | Good |
| Resale Value | High (Brand Reputation) | Moderate |
Frequently Asked Questions (FAQs)
Q1: What equipment uses the Kawasaki FS481V ES01S engine?
A: This engine is commonly found in commercial zero-turn riding mowers from brands like:
-
Scag (Turf Tiger, Liberty Z)
-
Gravely
-
Walker
-
Exmark
-
Other top-tier commercial mower manufacturers.
Q2: How do I confirm this is the correct replacement for my machine?
A: The best method is to:
-
Locate the model and spec number on your original engine’s sticker.
-
Match it exactly to the replacement engine (FS481V-S01-S).
-
Measure the vertical shaft length, diameter, and keyway size.
-
Verify the mounting bolt pattern and overall height.
Q3: Is this engine interchangeable with other FS481V models?
A: While the core engine may be similar, subtle differences in the S01/S suffix (like crankcase breather location, shaft length, or mounting bosses) are critical for a direct fit. Always match the exact model number.
Q4: What maintenance schedule does this engine require?
A: For commercial use, adhere to a strict schedule:
-
Oil & Filter Change: Every 50-100 hours
-
Air Filter Service: Check every 25 hours, replace as needed
-
Spark Plug Replacement: Every 200-300 hours
-
Valve Lash Adjustment: Every 500 hours or seasonally
Q5: What is the typical lifespan of this engine?
A: With proper maintenance and professional operation, a commercial-grade Kawasaki V-twin like the FS481V can reliably last 1,500 to 3,000+ hours before requiring major service.
Internal Link: Extend your engine’s life with our Commercial Small Engine Maintenance Checklist.
Pros and Cons
| Pros | Cons |
|---|---|
| Commercial Grade Durability: Built for heavy-duty, daily use. | Premium Price Point: Higher initial cost than consumer-grade engines. |
| Smooth V-Twin Power: 16 HP provides ample torque with low vibration. | Precise Fitment Required: Must match exact model suffix for compatibility. |
| Kawasaki Reliability: Industry-leading reputation for quality and longevity. | Complex Installation: May require integration of existing muffler, wiring, and controls. |
| Excellent Parts Support: Wide availability of OEM and aftermarket components. | |
| Overhead Valve Efficiency: Better fuel economy and longer service life than SV engines. |
Conclusion & Ideal Use Case
The Kawasaki FS481V S01/S (ES01S) is the definitive choice for professionals and serious property owners who cannot afford downtime. It is engineered to restore peak performance to high-end commercial mowing equipment.
This engine is perfectly suited for:
-
Commercial Landscaping Companies
-
Golf Course and Sports Turf Maintenance
-
Municipal and Government Grounds Crews
-
Replacing worn-out engines on Scag, Exmark, Gravely, and other premium mowers
-
Any application where commercial reliability and power are non-negotiable.
If you demand an engine that matches the quality of your commercial equipment and provides years of dependable service, the Kawasaki FS481V is the benchmark in its class.
🔗 Official Technical Resource
For detailed specifications, torque values, and official service manuals, always refer to the Kawasaki Engines USA Support Portal for the most accurate information.
