Description

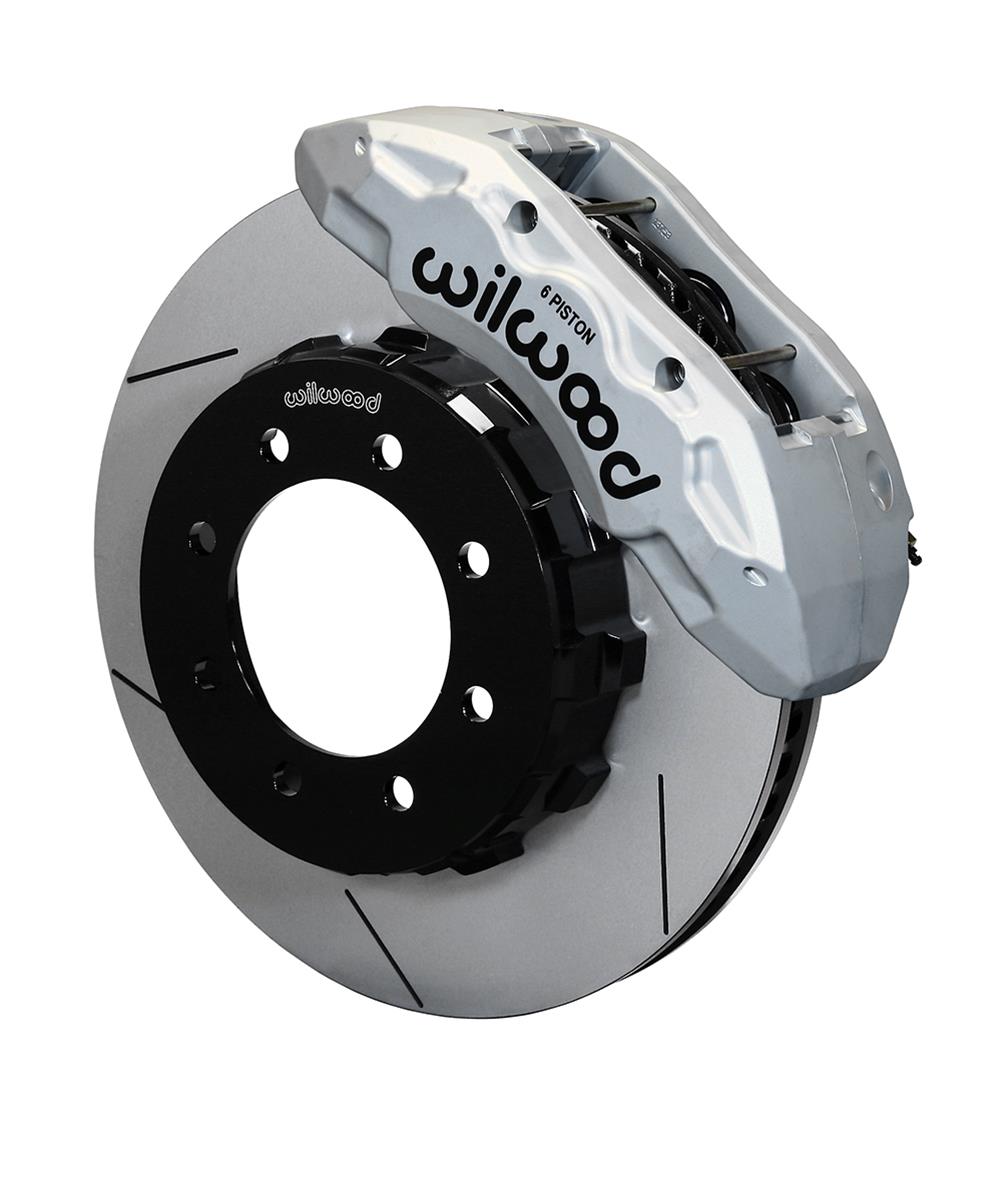

The Wilwood TX6R Big Brake Front Brake Kit (part number 140-13867-C; Summit Racing part number WIL-140-13867-C) is a front-axle disc brake kit with six-piston TX6R calipers and included front rotors. It is sold as a kit and is not remanufactured.
The kit includes 16.00-inch (406.40 mm) front rotors with a 1.50-inch thickness. The rotors are vented and have a slotted surface. Wilwood describes the TX6R kit family as using directional-vane GT-60 rotors made from Spec-37 alloy; the listed configuration specifies a 16-inch rotor.

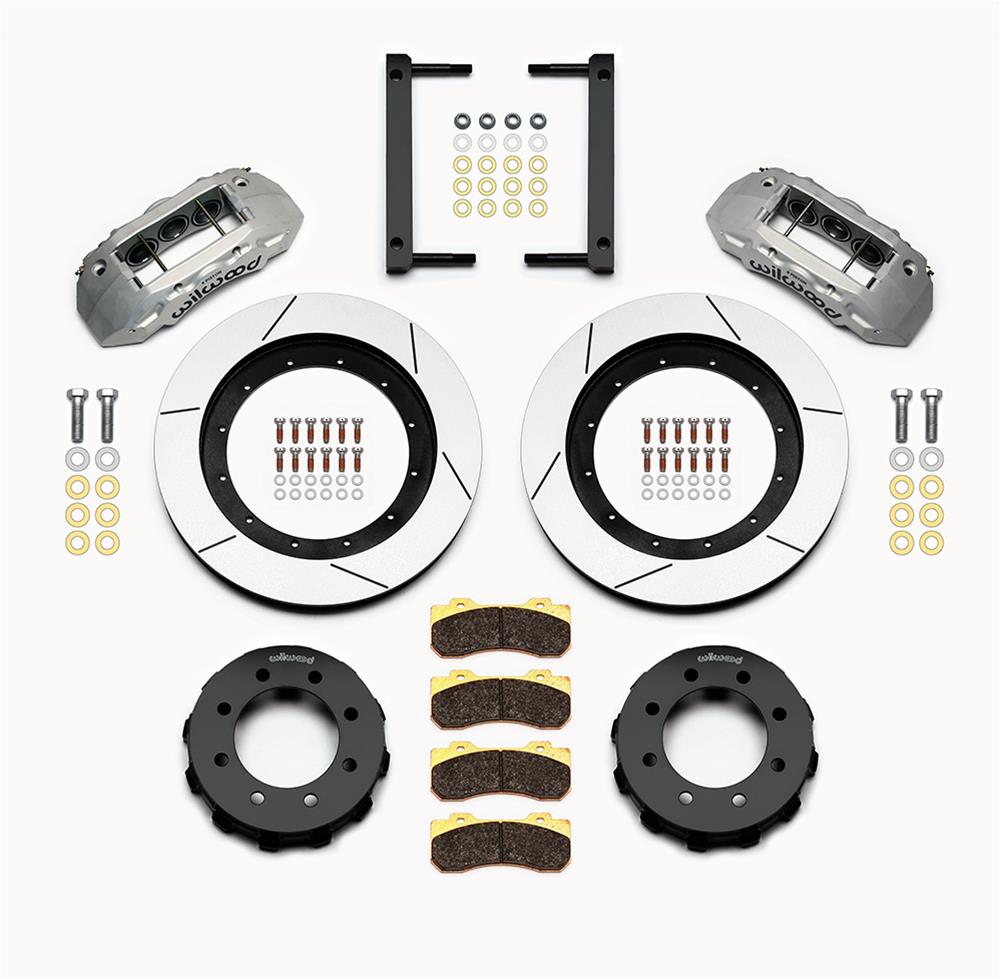

Each front caliper has six pistons and is made from forged billet aluminum, with a gray/silver finish. BP-10 brake pads are included. The kit also includes radial-mount caliper brackets and installation hardware. Wilwood says the calipers are volume matched for compatibility with OE power brake system output.
- Position: Front
- Rotor bolt pattern: 8 x 170.00 mm

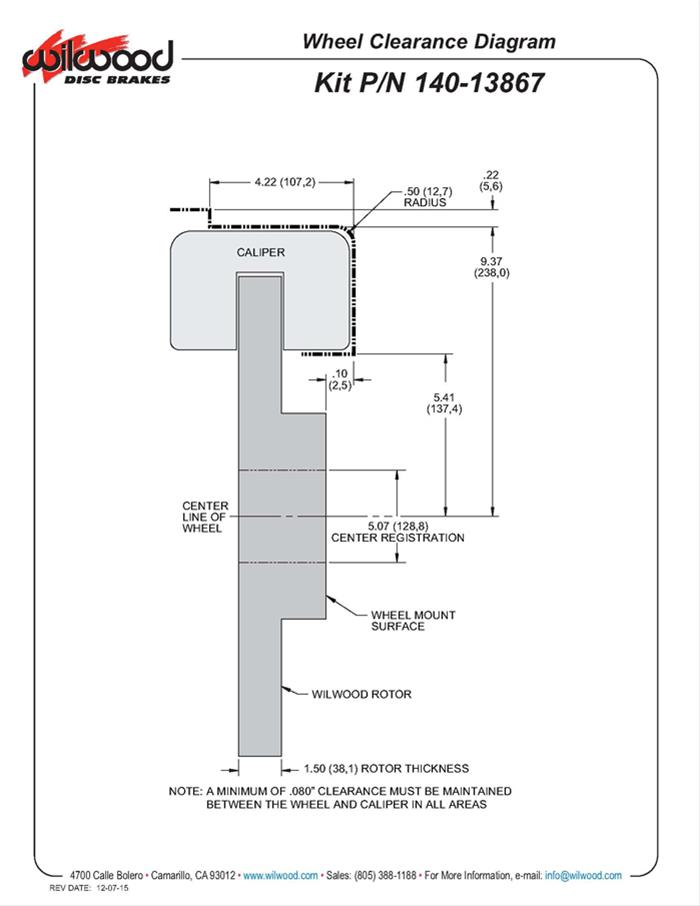

- Minimum recommended wheel diameter: 20 inches
- Parking brake provision: None
This kit does not include rear rotors or rear calipers, front spindles, a master cylinder, a brake booster, or brake hoses. Braided stainless steel flex lines may need to be purchased separately for some applications. Confirm application requirements, wheel clearance, and any additional hose needs before ordering.
