Performance Automatic C4 Coyote Drag Pack Transmission Systems PASS26108

Brand: Performance Automatic
Manufacturer’s Part Number: PASS26108
Part Type: Automatic Transmissions
Product Line: Performance Automatic C4 Coyote Drag Pack Transmission Systems
Summit Racing Part Number: PMA-PASS26108
UPC: 887753178251
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Ford
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,000
Torque Converter Included: Yes
Flexplate Included: Yes
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Torque Converter Diameter (in.): 10.000 in.
Advertised Flash Stall Rating: 3,000 rpm
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Input Spline Quantity: 26
First Gear Ratio (Automatic Transmissions): 2.46
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: Yes
SFI Rating: SFI 29.1
Remanufactured: Yes
Quantity: Sold as a kit.
Notes: Designed to fit Ford Modular 5.0L Coyote engines. Recommended for applications with 1,000 horsepower or less.

Performance Automatic C4 Coyote Drag Pack Transmission Systems

Overview

The Performance Automatic C4 Coyote Drag Pack Transmission System PASS26108 is purpose-built to complement Ford’s modern 5.0L Coyote engine, delivering race-ready performance and reliability. Designed for serious drag racing applications, this system provides a complete, matched solution that enhances power transfer and consistency. As a result, it offers the strength and precision required for high-horsepower builds.

Performance & Components

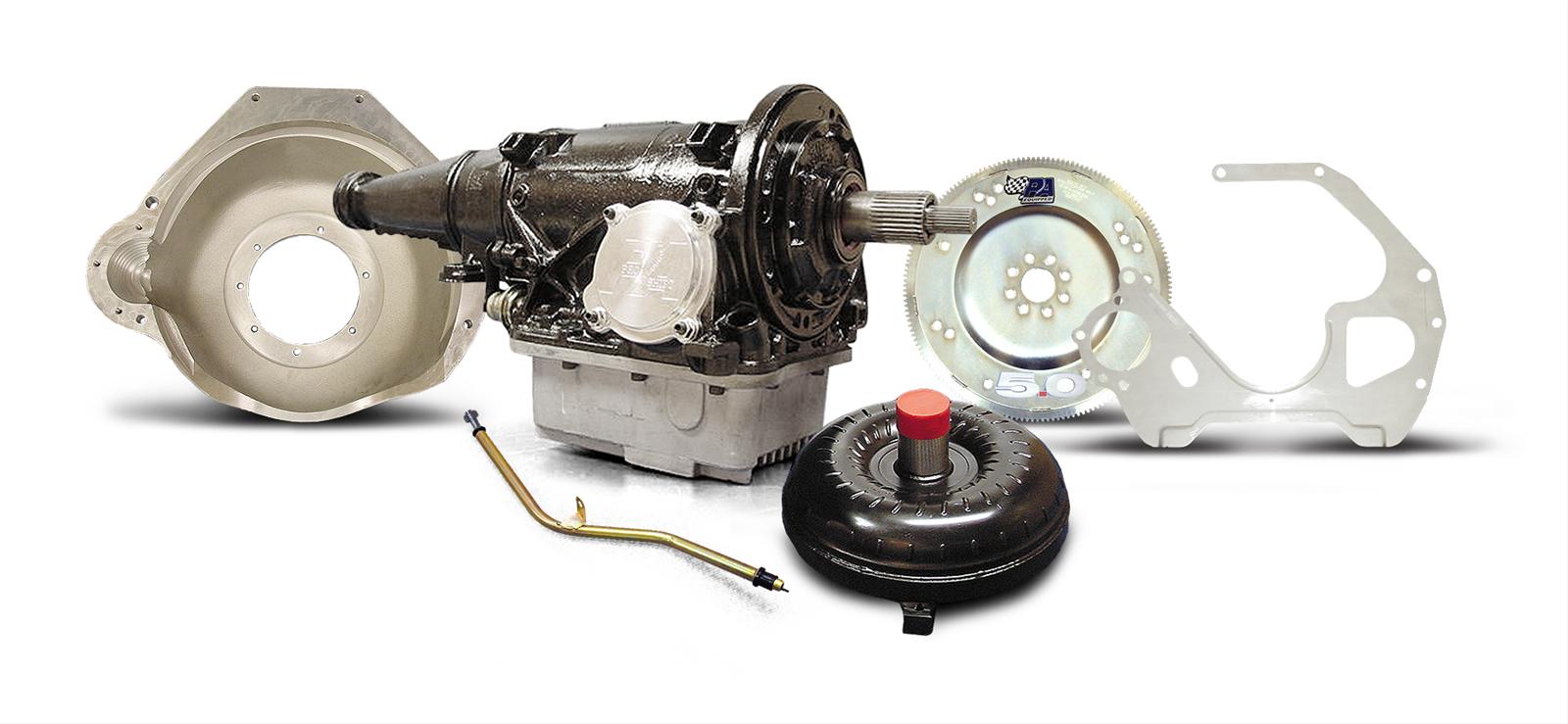

In addition, the system starts with a proven C4 Super Comp transmission rated for up to 1,000 horsepower and backed by a lifetime warranty. It also includes an SFI Pro Fit bellhousing, SFI-certified Coyote flexplate, and matching block plate for improved safety and durability. Because of this, users benefit from a fully integrated setup designed to handle extreme conditions. The included 10-inch Pro Launch torque converter is custom-built to match the Coyote engine’s performance characteristics, featuring anti-ballooning plates and a billet cover for added strength.

Engineering & Compatibility

Moreover, this drag pack system is engineered as a direct bolt-on solution, simplifying installation while ensuring proper fitment. High-quality components are carefully selected to work together, reducing guesswork and improving overall efficiency. For this reason, it is widely accepted in competitive racing environments, including NHRA, IHRA, NMRA, and NMCA classes (check specific regulations).

Application & Benefits

Finally, this system is ideal for racers seeking consistent launches, reliable performance, and long-term durability. Designed specifically for Ford Coyote-powered vehicles, it delivers the confidence needed for repeated passes on the track. Ultimately, it provides a complete, high-performance transmission solution built for serious competition.

Applications
Make: Ford
Engine Type: V8
Transmission Manufacturer Code: C4
Drivetrain: RWD
