Description

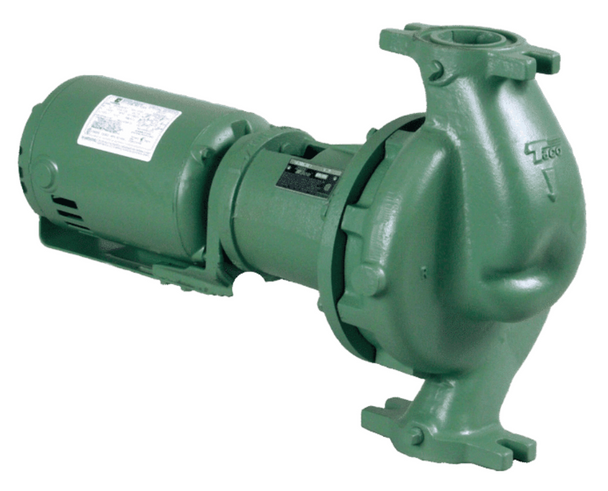

For robust commercial and industrial hydronic applications requiring reliable continuous operation, the Taco 1632E 1600 Series cast iron centrifugal pump delivers exceptional performance and durability. This versatile 3/4 HP circulator is engineered for medium-duty commercial HVAC systems, industrial processes, and larger residential applications where three-phase power availability and extended service life are paramount. Its heavy-duty construction and efficient design make it an ideal choice for system designers and facility managers seeking dependable circulation in demanding environments.
The pump features Taco’s proven wet-rotor technology, providing maintenance-free operation while eliminating coupling alignment issues and reducing energy consumption. The cast iron construction with bronze impeller ensures long-term durability in closed-loop heating and cooling systems, while the three-phase motor offers superior efficiency and torque characteristics compared to single-phase alternatives. With its compact inline configuration and standard flange connections, the 1632E installs easily in space-constrained mechanical rooms while delivering consistent, reliable fluid movement throughout your hydronic system.
As part of Taco’s respected 1600 series, this circulator continues a tradition of commercial-grade performance that mechanical professionals have trusted for decades. Whether serving in a school HVAC system, industrial process loop, or multi-building complex, the 1632E provides the robust circulation that keeps critical systems operating efficiently. Learn about its advantages in our article [The Benefits of Three-Phase Motors in Commercial Hydronic Systems].
Technical Specifications
| Specification | Details |
|---|---|
| Model | Taco 1632E 1600 Series |
| Motor Power | 3/4 HP (0.56 kW) |
| Motor Type | 3-Phase |
| Connection Size | 1-1/2″ Flange x 1-1/2″ Flange |
| Impeller Material | Bronze |
| Housing Material | Cast Iron |
| Max Head | 36 ft (11 m) |
| Max Flow | 120 US gpm (454 L/min) |
| Speed Settings | Single Speed |
| Max Operating Pressure | 125 psi (8.6 bar) |
| Max Fluid Temperature | 230°F (110°C) |
| Voltage | 208-230/460V, 3-Phase |
| Weight | 28 lbs (12.7 kg) |
Comparison Table: Taco 1632E vs. Alternative Circulators
| Feature | Taco 1632E (3-Phase) | Single-Phase Equivalent | Competitor 3-Phase Model |
|---|---|---|---|
| Motor Efficiency | Higher (3-Phase Advantage) | Standard | Higher |
| Starting Torque | Smooth, High Torque | Lower with Startup Surge | Smooth, High Torque |
| Motor Simplicity | No Start Capacitors Required | Requires Start/Run Capacitors | No Start Capacitors |
| Power Requirements | Requires 3-Phase Service | Standard Single-Phase | Requires 3-Phase Service |
| Long-Term Reliability | Excellent | Good | Good |
| Operating Cost | Lower | Higher | Lower |
Frequently Asked Questions (FAQs)
Q1: What is the primary advantage of a 3-phase circulator like the 1632E?
Three-phase motors offer several key advantages: they’re more efficient, providing lower operating costs; they have higher starting torque for reliable operation; and they’re simpler in design with no start capacitors to fail, resulting in greater long-term reliability and reduced maintenance.
Q2: Can this pump be used with a Variable Frequency Drive (VFD)?
Yes, the 3-phase motor is ideal for VFD operation. Pairing with a VFD allows for precise speed control to match system demand, resulting in significant energy savings, soft starting to reduce electrical stress, and enhanced system control. For optimized performance, consider a [Taco VFD Control Package].
Q3: What type of applications is this 3/4 HP circulator best suited for?
The 1632E excels in medium-duty commercial applications including:
-
School and office building HVAC systems
-
Large residential complex heating systems
-
Industrial process cooling circuits
-
Snow melt systems for commercial properties
-
Secondary loop pumping in larger hydronic systems
Q4: What maintenance does this circulator require?
The wet-rotor design is essentially maintenance-free. The rotor is lubricated and cooled by the system fluid, requiring no periodic lubrication. Routine maintenance typically involves only ensuring clean system water and occasionally checking for unusual noises or vibrations.
Q5: Is this pump suitable for both heating and cooling applications?
Yes, the 1632E is designed for closed-loop hydronic systems operating with water or glycol solutions within its published temperature and pressure ratings. It performs effectively in both heating systems up to 230°F and chilled water cooling applications.
Pros and Cons
| Pros | Cons |
|---|---|
| Higher Efficiency with 3-phase motor operation | Requires 3-Phase Power – not for residential use |
| Excellent Reliability with simple motor design | Higher Initial Cost than single-phase models |
| Maintenance-Free Operation with wet-rotor design | Single-Speed Operation limits flexibility |
| Robust Construction for long service life | Heavier Weight requires proper pipe support |
| Ideal for VFD Integration for energy optimization | Not for Potable Water applications |
| Commercial-Grade Durability | Limited Availability in some markets |
Conclusion & Ideal Use Cases
The Taco 1632E 1600 Series cast iron circulator represents a professional-grade solution for commercial and industrial applications where three-phase power availability and operational efficiency are key considerations. Its robust construction and efficient motor design make it an excellent value for facilities seeking reliable performance with minimal maintenance requirements.
This circulator is ideally specified for:
-
Commercial Buildings: Office buildings, retail centers, and schools
-
Multi-Family Residential: Apartment complexes and condominiums
-
Light Industrial Facilities: Manufacturing plants and process systems
-
Institutional Applications: Government buildings and healthcare facilities
For applications with only single-phase power available, consider the [Taco 1600 Series Single-Phase Circulators]. However, for facilities with three-phase service, the 1632E offers superior efficiency, reliability, and long-term value that justifies the initial investment.
Contact our commercial HVAC specialists today for application engineering, performance curve analysis, and competitive pricing on this reliable workhorse circulator.
