Product Overview

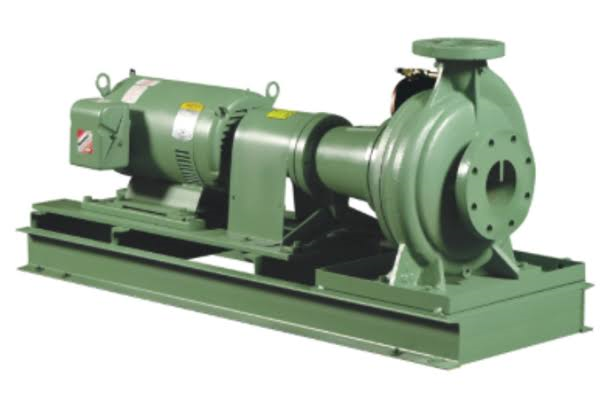

The Taco FI-1507 is a heavy-duty, end-suction centrifugal pump from the robust FI Series, engineered for demanding commercial and industrial applications. With a powerful 2 HP, 1800 RPM motor and 2.5-inch suction by 1.5-inch discharge flanged connections, this pump is built to handle high-capacity fluid transfer in HVAC systems, industrial processes, water supply, and circulation services.
🖼️ IMAGE: [taco-fi-1507-pump-installed-mechanical-room.jpg]
Alt-text: *Taco FI-1507 industrial pump installed in a commercial mechanical room, showing its base-mounted design and flanged pipe connections.*
Constructed with a durable cast iron casing and featuring a bronze-fitted impeller and wear ring, the FI-1507 offers superior corrosion resistance and long-term reliability. Its flexible-coupled, base-mounted design separates the pump and motor, facilitating easier maintenance, alignment, and potential motor replacement without disturbing the wet end or piping. This pump is a true workhorse, designed for continuous duty in closed or open-loop systems where reliability and serviceability are critical.
For engineers and facility managers who need industrial-grade performance for large buildings, manufacturing processes, or municipal applications, the Taco FI-1507 delivers the power, durability, and service-friendly design required for the most challenging environments.
📚 Industrial Pumping Resources
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Part Number | FI-1507 |
| Series | Taco FI Series |
| Horsepower | 2 HP |
| Motor Speed | 1800 RPM |
| Voltage/Phase | Typically 208-230/460V, 3-Phase (Confirm specific model) |
| Suction Size | 2.5 inch |
| Discharge Size | 1.5 inch |
| Connection Type | Flanged (Standard 125# or 250#) |
| Maximum Working Pressure | 175 PSI / 12.1 Bar |
| Maximum Temperature | 250°F / 121°C |
| Construction – Casing | Cast Iron |
| Construction – Impeller | Bronze |
| Construction – Wear Ring | Bronze |
| Shaft Seal | Mechanical Seal (Standard) |
| Bearing Type | Heavy-Duty Roller Bearings |
| Coupling | Flexible Coupling |
| Mounting | Horizontal Base Mounted |
🖼️ IMAGE: [taco-fi-1507-technical-specifications-diagram.png]
Alt-text: *Technical diagram of the Taco FI-1507 pump showing dimensions, flange sizes, and key component locations with callouts.*
What’s Included (Pump Only)
| Included | Not Included / Required Separately |
|---|---|
| ✓ Pump Casing with Impeller | ✗ Motor (Specified separately) |
| ✓ Baseplate | ✗ Coupling Guard |
| ✓ Shaft and Bearings | ✗ Isolation Valves & Strainer |
| ✓ Mechanical Seal | �* Mounting Bolts / Grout |
| ✓ Coupling (Spider Insert) | ✗ Alignment Services |
🛠️ Recommended for a Complete System
-
Coupling: Falk Steelflex Grid Coupling
-
Isolation: 2.5″ & 1.5″ Flanged Isolation Valves
Comparison Table: FI Series vs. Alternative Pumps
| Feature | Taco FI-1507 (Base Mounted) | Close-Coupled Circulator | Vertical In-Line Pump |
|---|---|---|---|
| Serviceability | Excellent (Easy motor/service access) | Poor (Unit Replacement) | Moderate |
| Durability | Heavy-Duty Industrial Grade | Commercial Grade | Commercial Grade |
| Maintenance Cost | Lower (Individual component repair) | Higher (Full unit replacement) | Moderate |
| Footprint | Larger Horizontal | Compact | Vertical Space |
| Flexibility | High (Various motor options) | Limited | Limited |
| Ideal For | Large Systems, Continuous Duty | Space-constrained applications | Limited floor space |
Frequently Asked Questions (FAQs)
Q1: What does the “FI” series designation indicate?
A: The “FI” series represents Taco’s line of Flexible-Coupled, Iron-bodied pumps. These are heavy-duty, base-mounted centrifugal pumps designed for industrial and large commercial applications where serviceability and durability are paramount.
Q2: Is the motor included with the FI-1507 pump?
A: No. The FI-1507 is typically sold as a pump-only assembly. The motor must be purchased separately. This allows for flexibility in selecting the exact motor specifications (horsepower, RPM, voltage, enclosure) required for your specific application.
Q3: What are the key advantages of a base-mounted, flexible-coupled design?
A: Key advantages include:
-
Easy Maintenance: The motor can be serviced or replaced without disturbing the pump or piping.
-
Better Heat Dissipation: Separation between pump and motor reduces heat transfer.
-
Flexible Motor Selection: Various motor manufacturers and specifications can be used.
-
Vibration Damping: The baseplate helps isolate and dampen vibrations.
🖼️ IMAGE: [base-mounted-pump-alignment-procedure.jpg]
Alt-text: Technician performing laser alignment on a base-mounted pump and motor, showing the importance of precise shaft alignment.
Q4: What type of applications is this pump suited for?
A: The FI-1507 is ideal for:
-
Large commercial building HVAC systems
-
Industrial process water circulation
-
Boiler feed and condenser water systems
-
Municipal water transfer and boosting
-
Cooling tower circulation
Q5: How critical is proper alignment during installation?
A: Extremely critical. Improper alignment is a leading cause of premature failure in base-mounted pumps. Precision alignment using methods like the reverse indicator technique or laser alignment tools is essential for long bearing, seal, and coupling life.
Internal Link: Ensure a successful installation with our Pump Alignment Best Practices Guide.
Pros and Cons
| Pros | Cons |
|---|---|
| Excellent Serviceability: Motor and pump can be serviced independently. | Motor Not Included: Requires separate purchase and mounting. |
| Heavy-Duty Construction: Cast iron and bronze components for long life. | Larger Footprint: Requires significant floor space. |
| High Flexibility: Compatible with various motor brands and specifications. | Complex Installation: Requires precise alignment and base preparation. |
| Superior Vibration Damping: Baseplate design reduces vibration transmission. | Higher Skill Required: Maintenance personnel need alignment expertise. |
| Ideal for High-HP Applications: Designed for 2 HP and larger applications. | Higher Initial Cost: More expensive than close-coupled equivalents. |
🖼️ IMAGE: [taco-fi-pump-maintenance-access.jpg]
Alt-text: Close-up view of the Taco FI series pump’s split coupling, showing easy access for seal and bearing maintenance without disassembling piping.
Conclusion & Ideal Use Case
The Taco FI-1507 is engineered for industrial and large commercial applications where reliability, serviceability, and continuous operation are non-negotiable. Its robust design makes it suitable for the most demanding pumping services.
This pump is perfectly suited for:
-
Central Plant HVAC Systems
-
Industrial Manufacturing Processes
-
Municipal Water and Wastewater Applications
-
Large Boiler and Chiller Systems
-
Any critical application where pump failure is not an option
If your application requires industrial-grade reliability, easy maintenance access, and continuous high-capacity performance, the Taco FI-1507 base-mounted pump delivers proven performance for the most challenging environments.
🔗 Official Technical Resource
For complete performance curves, dimensional drawings, and installation manuals, visit the Taco Commercial Systems Product Documentation for the most accurate and up-to-date technical data.
