Description
The Wilwood AERO4 Big Brake Rear Brake Kit (manufacturer part number 140-10941-R; Summit Racing part number WIL-140-10941-R) is a rear disc brake kit for qualifying 5-lug applications. It is designed for GM 8.5- and 8.875-inch (12-bolt) truck differential cases with a large C10 axle housing flange measuring 3.396 x 2.65 inches.

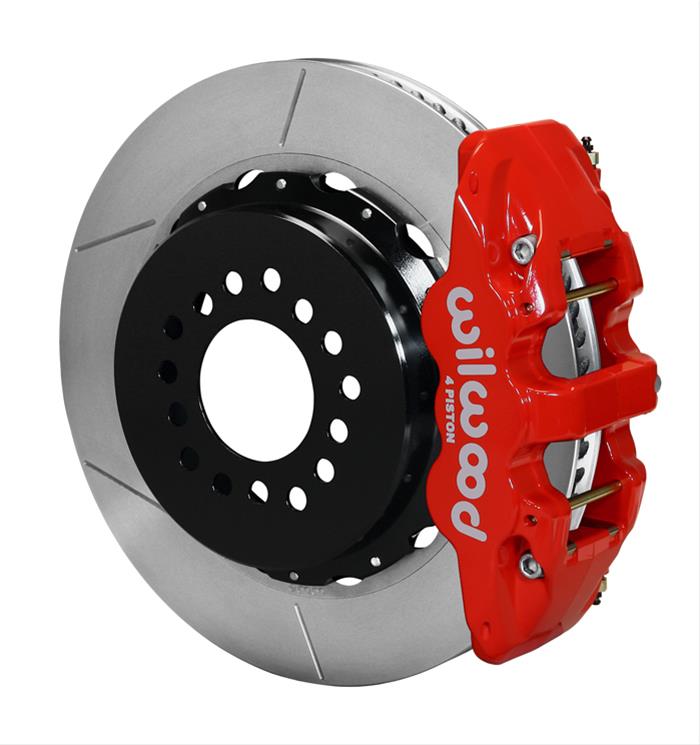

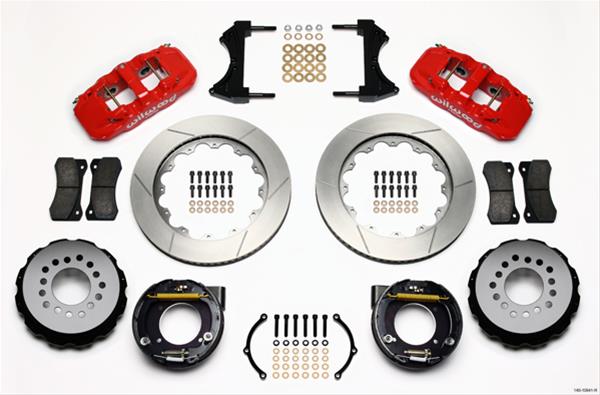

The kit includes a 14.00-inch (355.60 mm), 1.10-inch-thick vented rear rotor with a slotted surface, plus a red forged-billet-aluminum rear caliper with four pistons. BP-10 brake pads are included. The parking brake provision uses a concealed internal-drum shoe system.
- Rotor bolt patterns: 5 x 4.50, 5 x 4.75, or 5 x 5.00 inches (5 x 114.30, 5 x 120.65, or 5 x 127.00 mm)

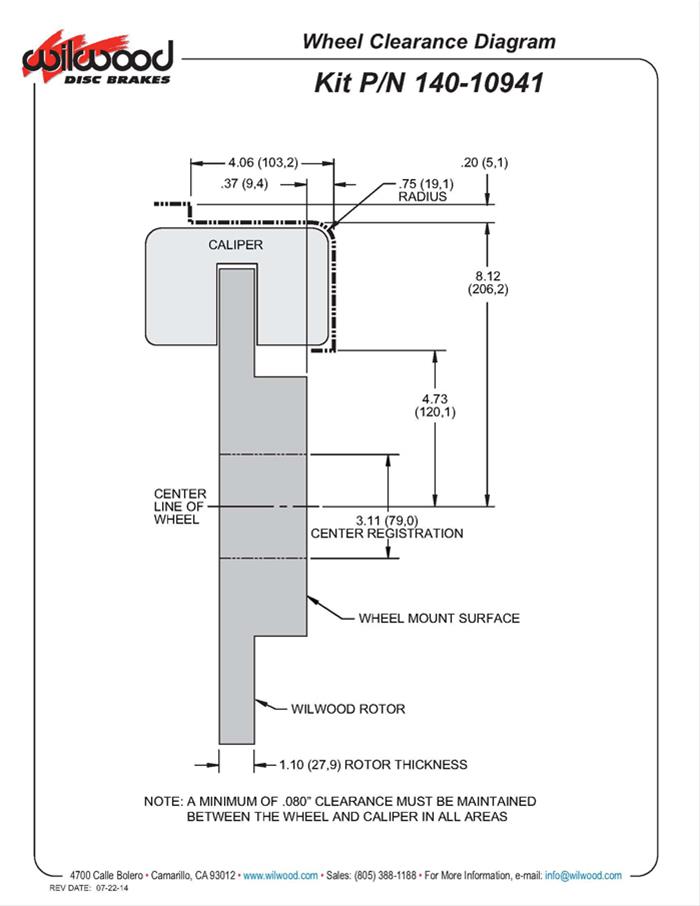

- Caliper offset: 2.420 inches
- Minimum recommended wheel diameter: 18 inches
- Quantity: Sold as a kit
This is a rear-only kit: no front rotor, front caliper, or front spindles are included. A master cylinder, brake booster, and brake hoses are also not included. Confirm your axle case, flange dimensions, 5-lug bolt pattern, and wheel clearance before ordering. This kit is not remanufactured. UPC: 889545010916.
