Description
The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (part number 140-16458-D; Summit Racing part number WIL-140-16458-D) is a front disc brake upgrade for specified 6-lug applications. It is designed to fit vehicles equipped with CPP 2-inch drop spindles CP30106-2, CP30106-3 or CP30106-4, or Ridetech 2-inch drop spindles 11349300, 11359300 or 11369300.

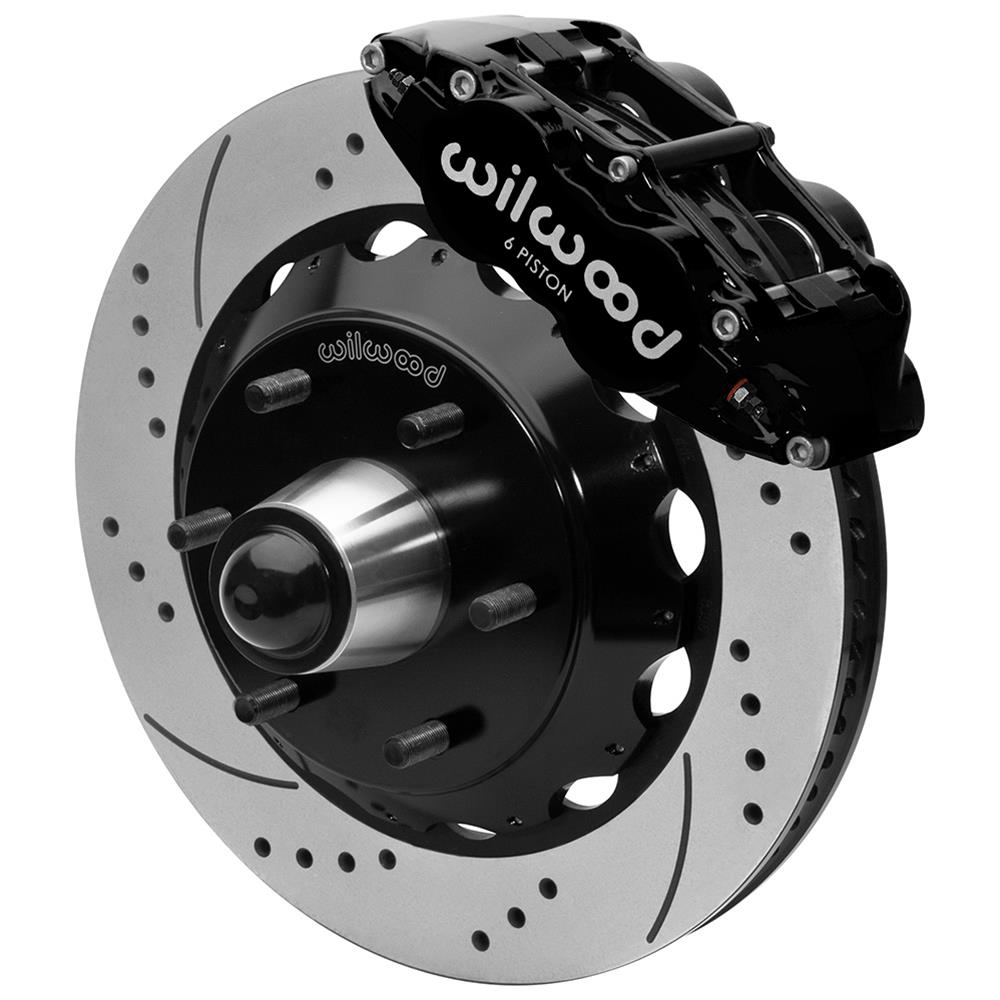

The kit uses forged billet aluminum, black-finish, six-piston front calipers and vented 14-inch rotors. The rotors have a cross-drilled and slotted surface, are 1.25 inches thick, and use a 6 x 5.50-inch (6 x 139.70 mm) bolt pattern. BP-20 brake pads are included. The caliper design is intended to provide increased braking capacity; the kit is described as compatible with OE master-cylinder output and ABS functions where those systems are used.
- Position: Front; suitable for manual or power-assist brake systems
- Minimum recommended wheel diameter: 18 inches
- Included: Front rotors, front calipers and brake pads
- Not included: Rear rotors or calipers, front spindles, master cylinder, brake booster or brake hoses
- No parking-brake provision
Sold as one kit. Verify your vehicle’s 6-lug configuration and spindle part number before ordering. This kit is not remanufactured.
