Description
The Wilwood AERO6 Big Brake Front Brake Kit (manufacturer part number 140-10920-DR; Summit Racing part number WIL-140-10920-DR; UPC 889545010862) is a matched front-brake package for vehicles configured to accept this kit. Wilwood describes the AERO6 range for show vehicles, dual-purpose street and track cars, towing trucks, and off-road SUVs. Confirm the kit’s fitment for your vehicle before ordering.

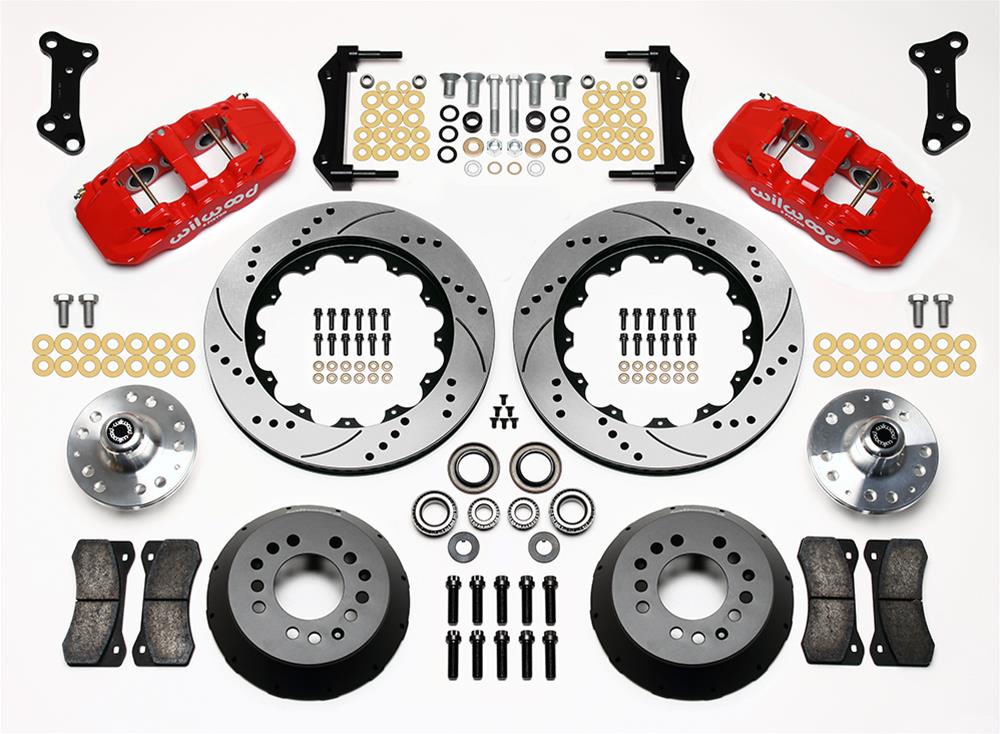

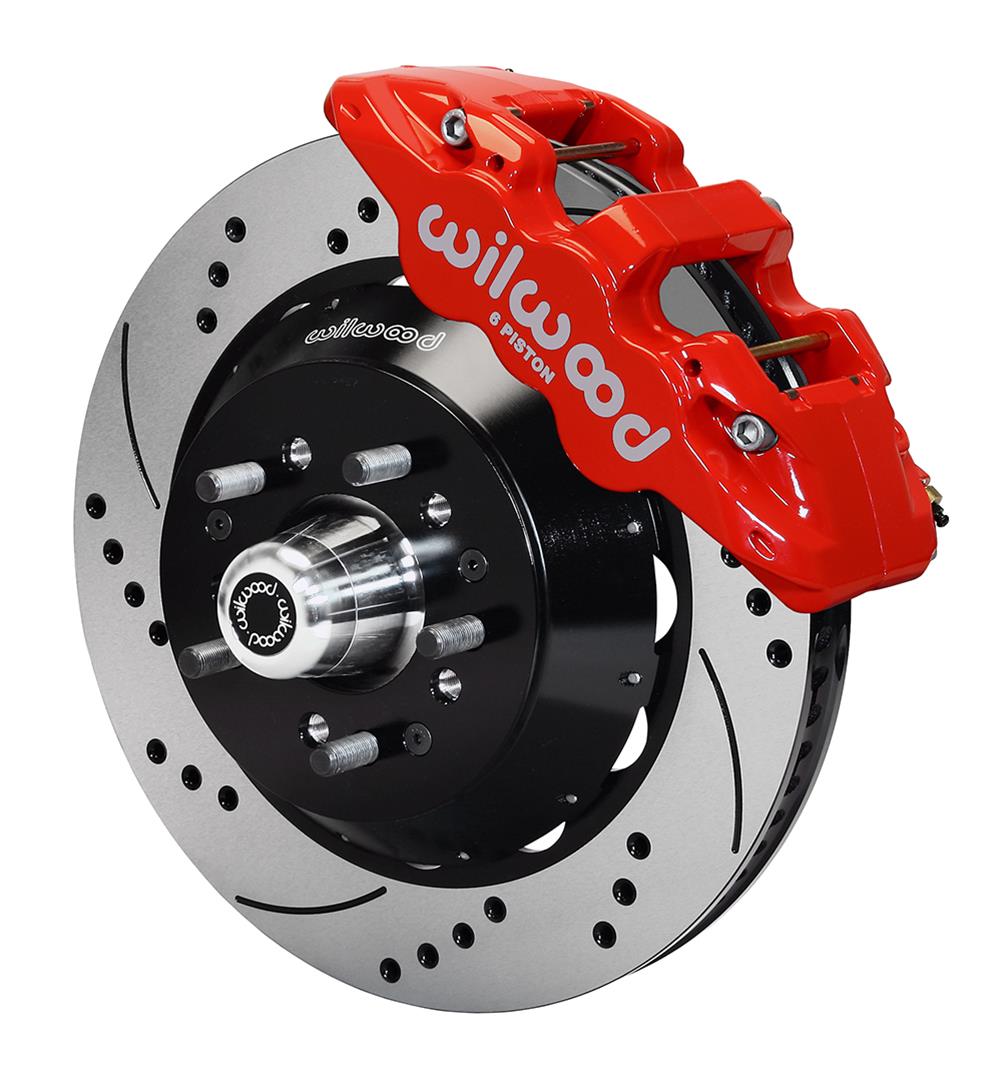

The package pairs forged billet-aluminum AERO6 front calipers, finished in red and fitted with six pistons, with vented 14.00-inch (355.60 mm) cross-drilled/slotted front rotors. The rotors are 1.25 inches thick and use a dual bolt pattern: 5 x 4.50 or 5 x 4.75 inches (5 x 114.30 or 5 x 120.65 mm). BP-20 brake pads are included.
- Position: Front
- Minimum recommended wheel diameter: 18 inches
- Offset: 0.380 inch
- Wheel studs: 1/2-inch-20 studs included
- Quantity: Sold as a kit
This is a front-only brake kit: rear rotors and rear calipers are not included. It has no parking-brake provision. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit is not remanufactured.

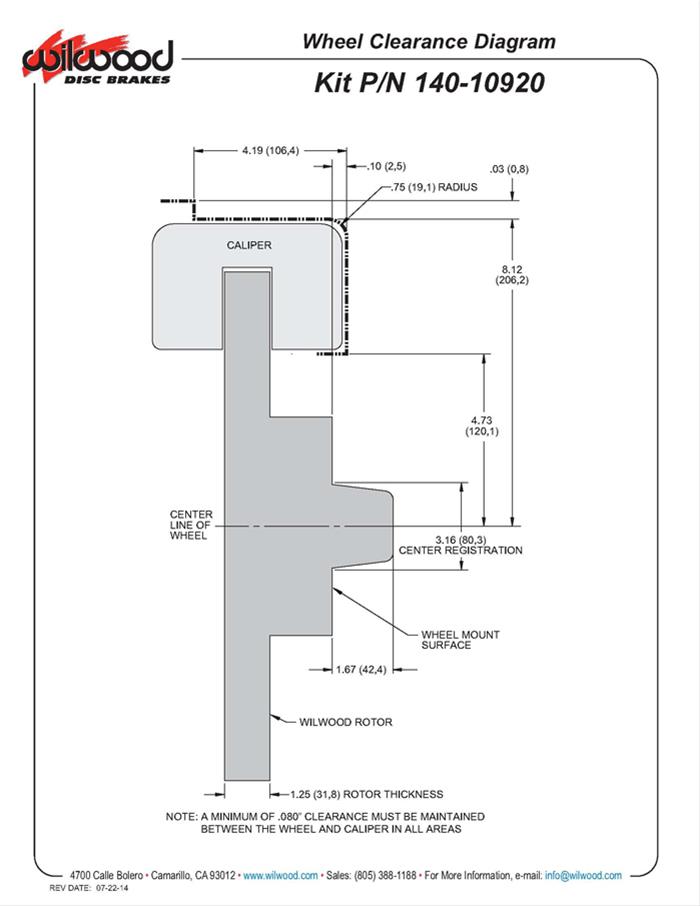

Select the kit designed for your vehicle’s fitment and verify wheel clearance, including the 18-inch minimum recommended wheel diameter, before purchase.
