Description

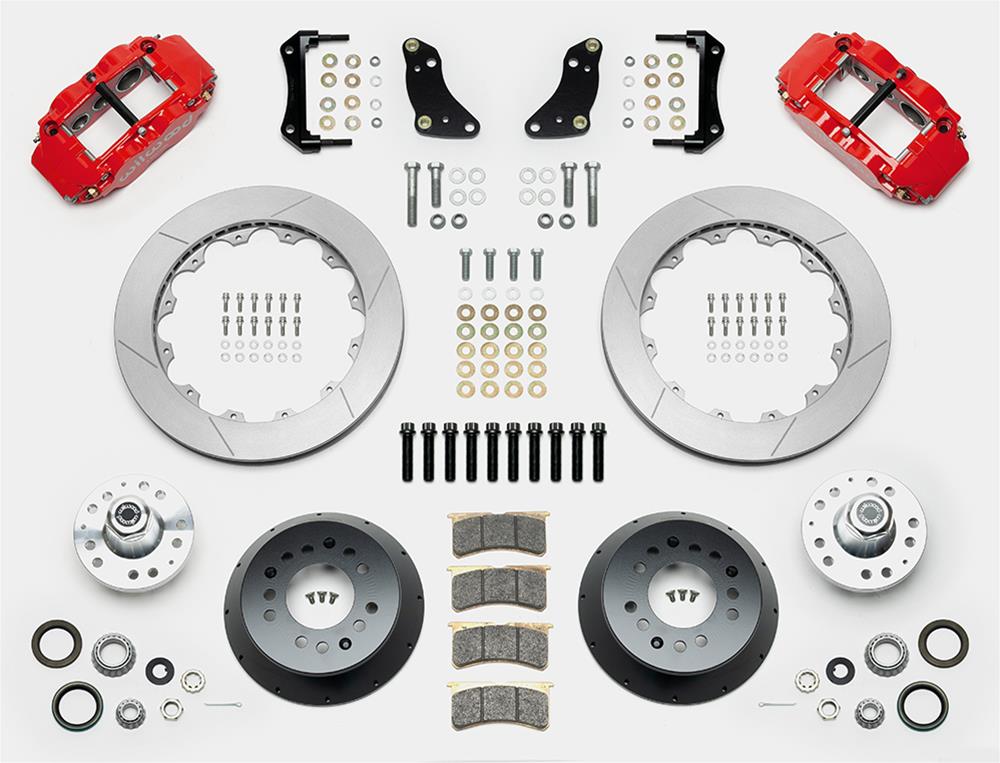

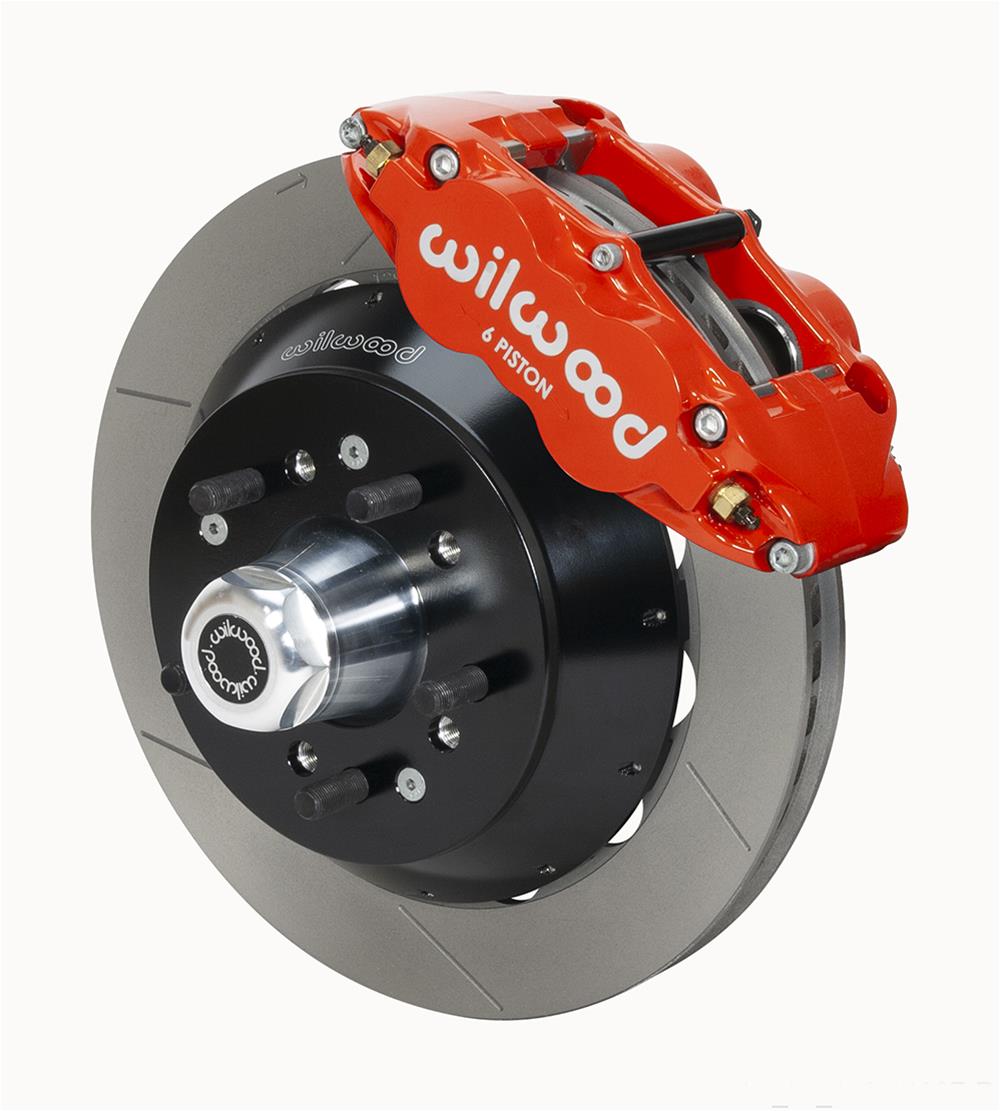

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-14837-R; Summit Racing part number WIL-140-14837-R) is a front disc brake kit. It includes forged billet aluminum six-piston front calipers finished in red, front rotors, and brake pads with BP-20 friction material.

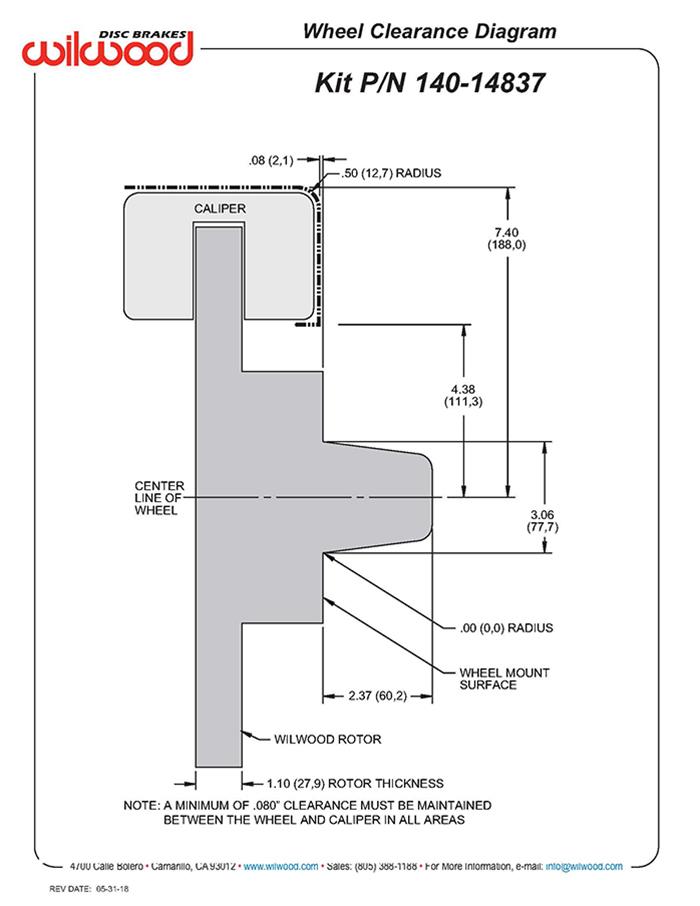

The included vented rotors have a slotted surface and measure 12.88 in. (327.20 mm) in diameter and 1.10 in. thick. They have a dual bolt pattern: 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm).
- Front calipers and rotors included; rear calipers and rotors are not included.
- Minimum recommended wheel diameter: 17 in.
- No parking brake provision.
- Front spindles, master cylinder, brake booster, and brake hoses are not included.
- Sold as a kit; not remanufactured.
This is an application-specific kit. The product information states compatibility with OE master cylinder output and ABS functions where used; confirm the kit’s application for your vehicle before ordering. UPC: 889545083705.
