Description
The Wilwood AERO6 Big Brake Front Brake Kit (manufacturer part number 140-16197-R; Summit Racing part number WIL-140-16197-R; UPC 889545098617) is a matched front brake package with red six-piston AERO6 calipers. Wilwood describes its AERO6 kits for applications including show vehicles, dual-purpose street and track cars, towing trucks, and off-road SUVs; select the kit designed for your vehicle.

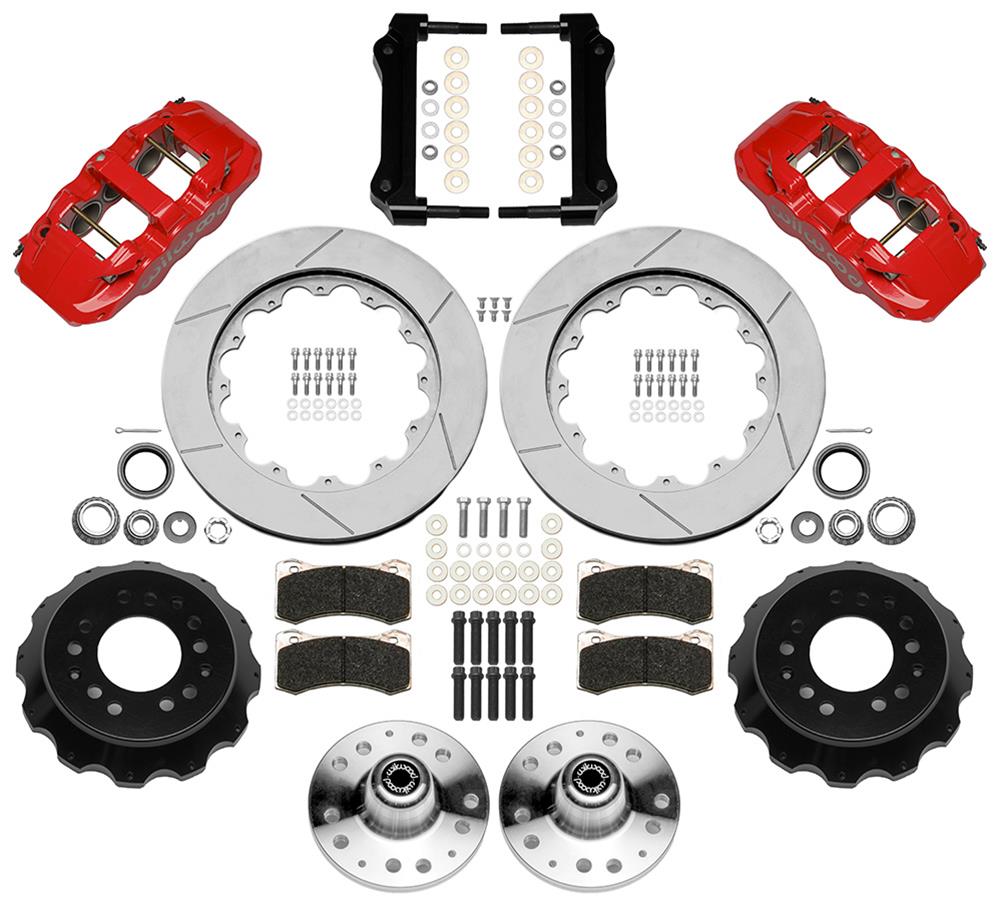

This kit includes forged billet aluminum front calipers, slotted and vented front rotors, and BP-20 brake pads. The rotors measure 14.00 in. (355.60 mm) in diameter and 1.25 in. thick, with a dual bolt pattern for 5 x 4.50 in. (5 x 114.30 mm) or 5 x 4.75 in. (5 x 120.65 mm) applications. Rotor offset is 0.660 in.
- Position: Front

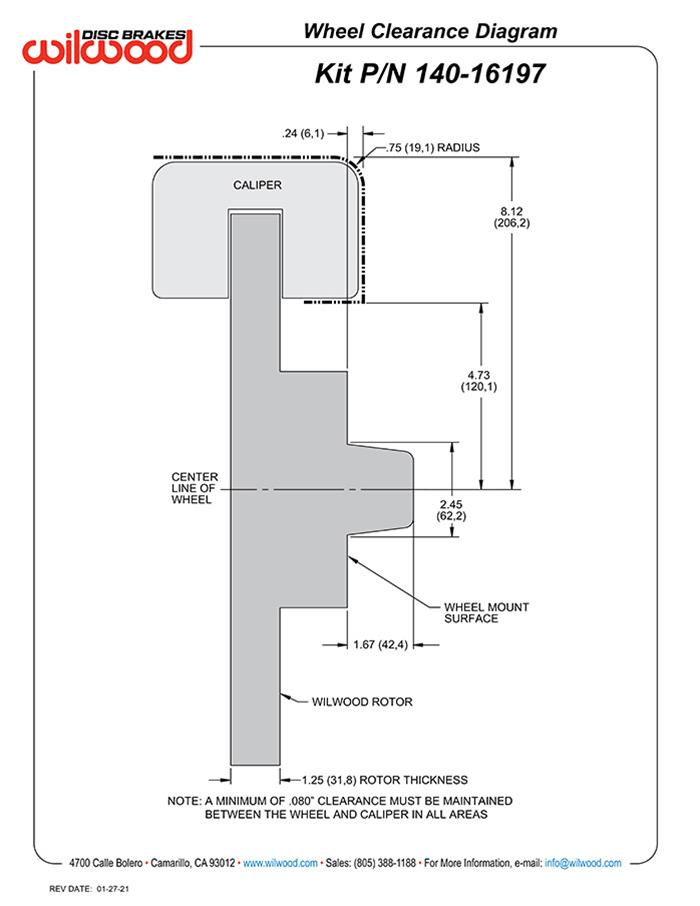

- Minimum recommended wheel diameter: 18 in.
- Parking brake provision: No
- Quantity: Sold as a kit
Rear rotors and rear calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit is not remanufactured. Use with Wilwood Gen II AFX Pro Spindles.
