Description
The Wilwood AERO6 Big Brake Front Brake Kit, part number 140-16459-DR (Summit Racing part number WIL-140-16459-DR), is a matched front disc brake package for specified 6-lug vehicle applications. It is designed for use with the listed 2-inch drop spindles; verify the spindle and vehicle fitment before ordering.
The kit includes red, six-piston AERO6 front calipers made from forged billet aluminum, BP-20 brake pads, and vented front rotors with cross-drilled and slotted surfaces. The rotors measure 14.00 inches (355.60 mm) in diameter and 1.25 inches thick, with a 6 x 5.50-inch (6 x 139.70 mm) bolt pattern.
- Front disc brake kit for manual or power-assist systems
- Minimum recommended wheel diameter: 18 inches
- Designed for CPP 2-inch drop spindles CP30106-2, CP30106-3, and CP30106-4, or Ridetech 2-inch drop spindles 11349300, 11359300, and 11369300
- Sold as a kit; not remanufactured

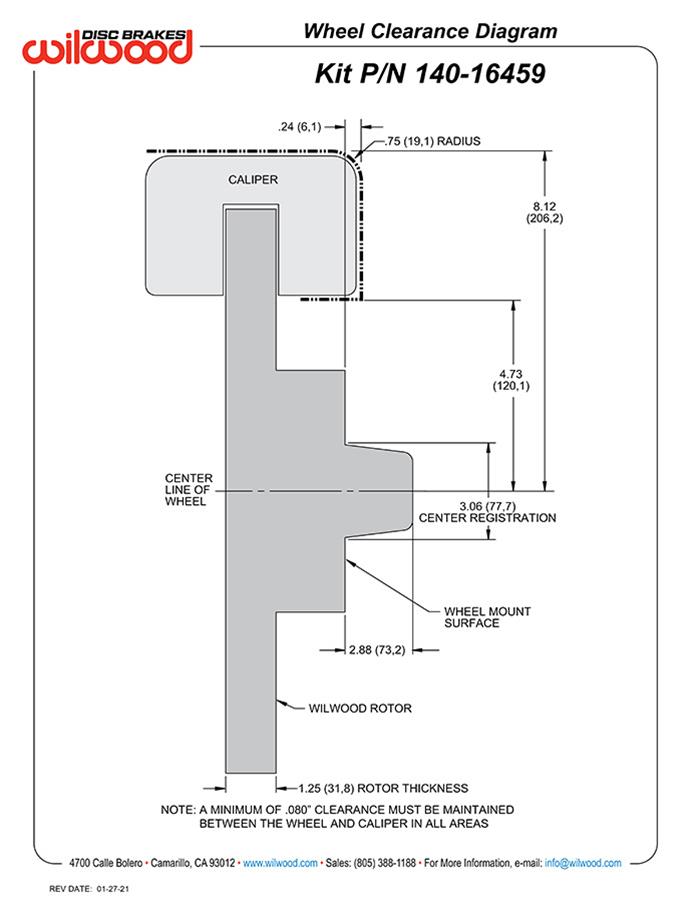

Rear rotors and calipers are not included. The kit also does not include front spindles, a master cylinder, brake booster, or brake hoses, and it has no parking brake provision. Confirm that your vehicle uses one of the specified spindle applications and meets the wheel-clearance requirement before purchase.
