Description

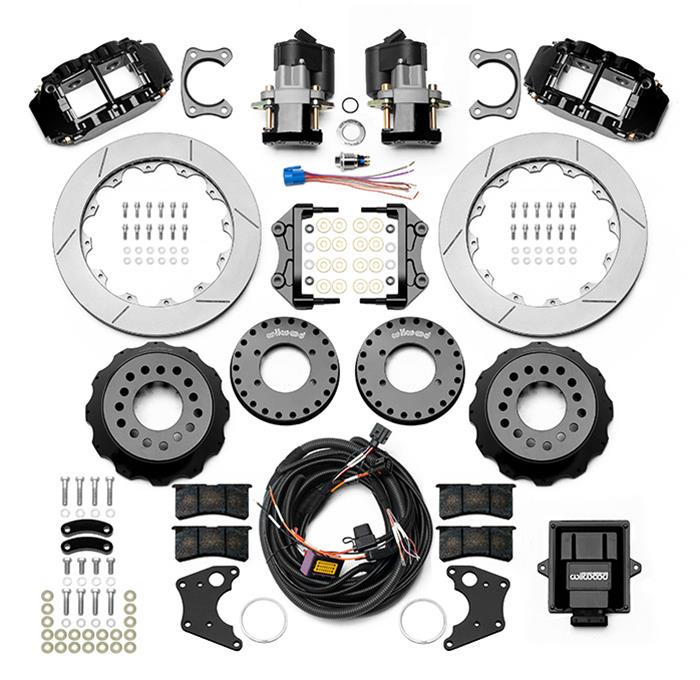

The Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit (part number 140-16131) is a rear disc brake kit configured for a Ford 9-inch differential and a Big Ford New Style/Torino axle housing flange. The flange dimensions are 3.562 x 2.00 inches. Confirm these dimensions and the listed rotor bolt pattern against your axle before ordering.
- Rear rotor: Included; 12.88 in. (327.15 mm) diameter, 1.10 in. thick, vented construction with a solid surface
- Rotor bolt patterns: Triple pattern: 5 x 4.50, 5 x 4.75, and 5 x 5.00 in.; metric equivalents are 5 x 114.30, 5 x 120.65, and 5 x 127.00 mm
- Rear caliper: Included; four-piston, forged billet aluminum, black
- Pads: Included; BP-10 friction material
- Parking brake provision: Yes; electric caliper style
Plan for a minimum recommended wheel diameter of 17 inches and a 2.360-inch offset. This kit does not include a front rotor, front or rear spindles, front calipers, master cylinder, brake booster, or brake hoses. It is not remanufactured and is sold as one kit.
Wilwood manufacturer part number: 140-16131. Summit Racing part number: WIL-140-16131. UPC: 889545096323. Verify axle, flange, bolt pattern, and wheel-clearance requirements for your application before purchase.
