Description

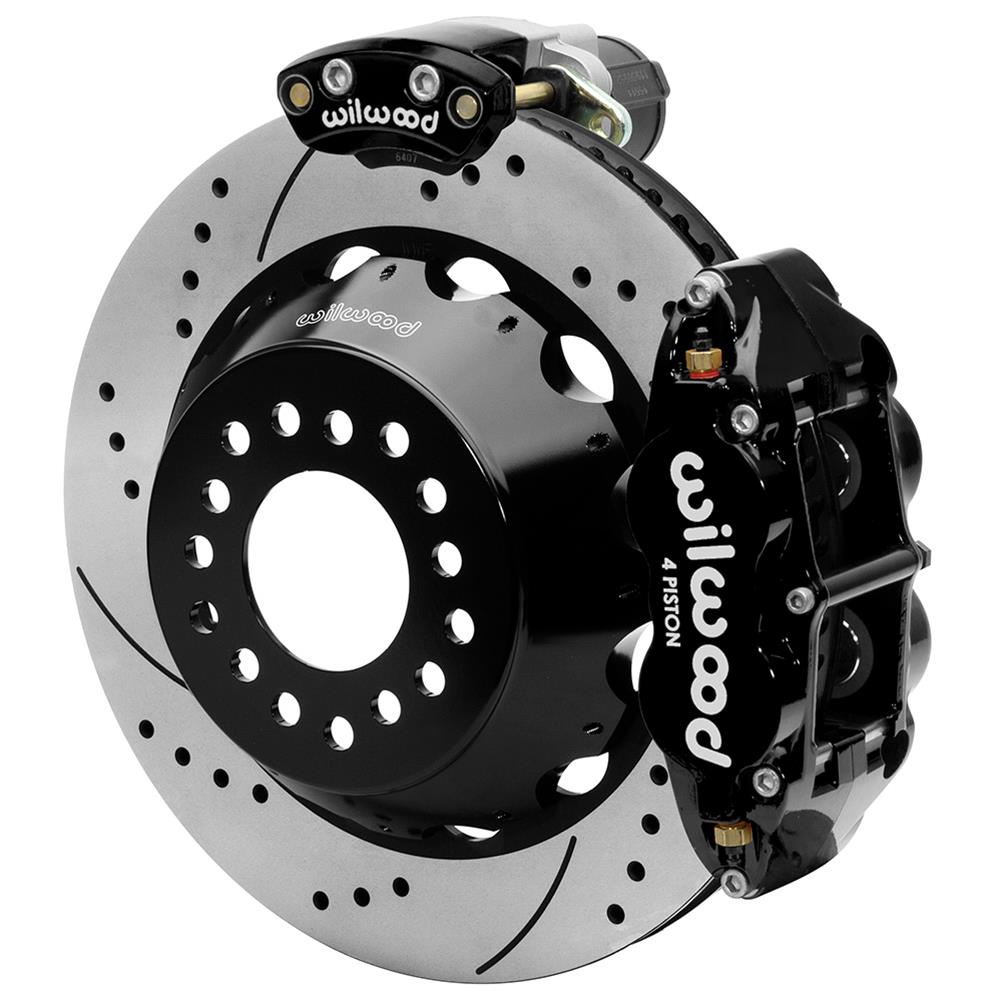

Wilwood part 140-16152-D is a rear disc brake and parking brake kit for applications with a Ford 9-inch differential and a small Ford axle housing flange measuring 3.336 x 2.00 inches. It includes a 14-inch (355.60 mm) vented rear rotor with a cross-drilled and slotted surface, plus a black forged billet aluminum rear caliper.
The Forged Narrow Superlite 4R caliper has four pistons. BP-10 brake pads are included, and the kit provides an electric-caliper-style parking brake provision.
- Rotor thickness: 1.10 inches
- Rotor bolt patterns: triple pattern for 5 x 4.50, 5 x 4.75 and 5 x 5.00 inches; equivalent listed metric patterns are 5 x 114.30, 5 x 120.65 and 5 x 127.00 mm
- Minimum recommended wheel diameter: 18 inches
- Offset: 2.500 inches
This is a rear kit; no front rotors, front calipers or front spindles are included. A master cylinder, brake booster and brake hoses are also not included. The kit is sold as a kit and is not remanufactured. Confirm that the axle housing, flange, wheel bolt pattern and wheel clearance match your application before ordering.
