Description

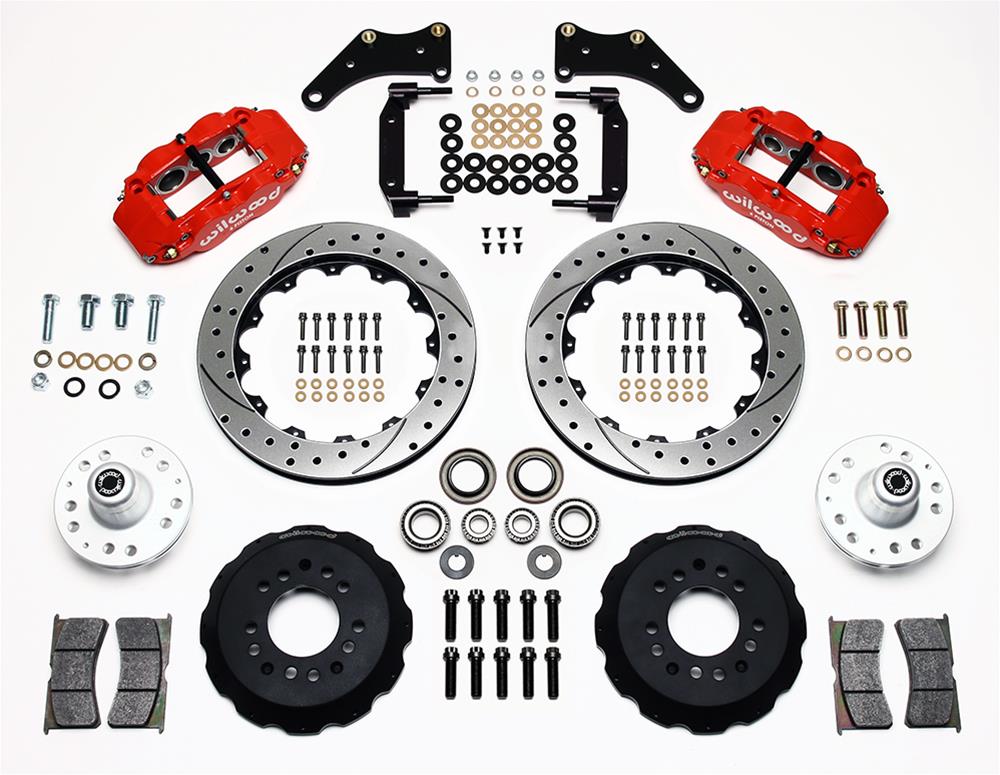

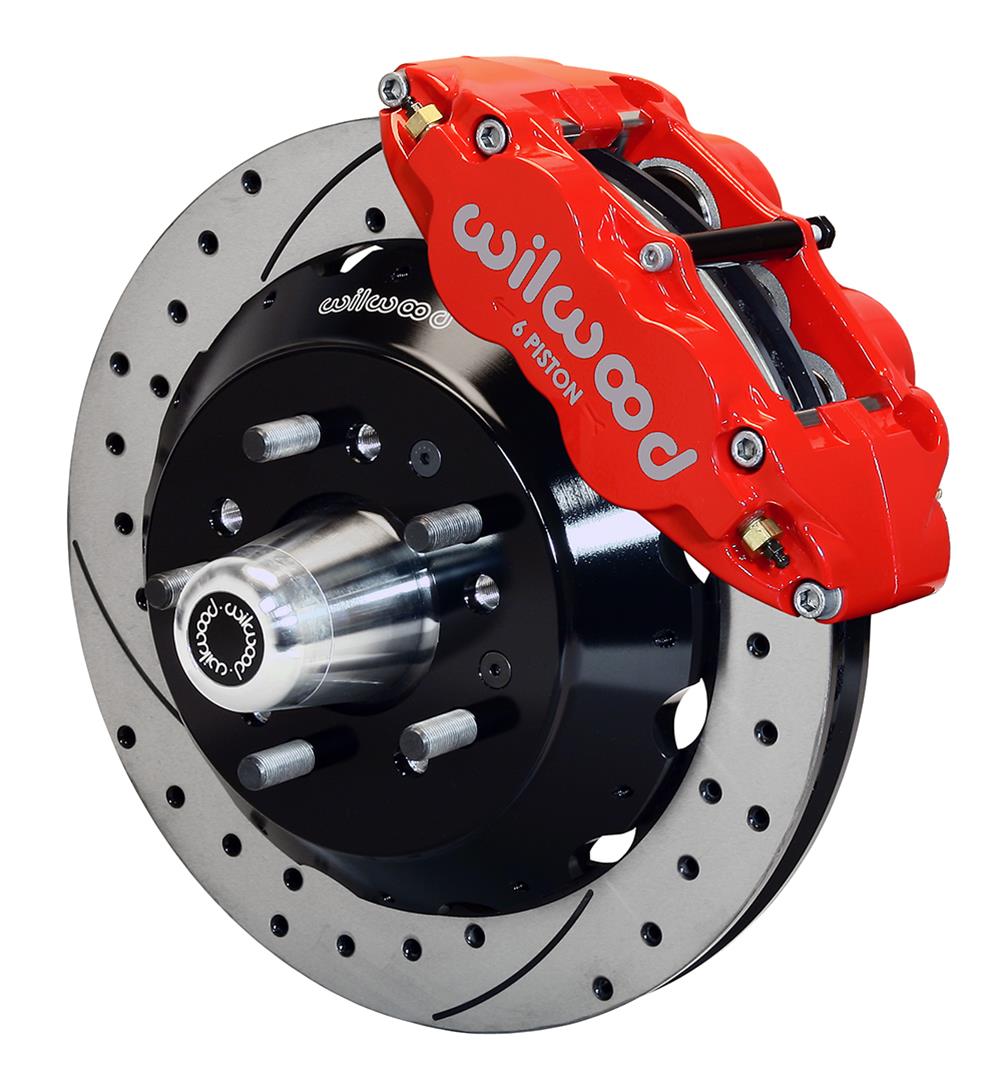

Upgrade the front brakes with the Wilwood Forged Narrow Superlite 6R Big Brake Kit, part number 140-10238-DR (Summit Racing part number WIL-140-10238-DR; UPC 889545009149). This kit includes forged billet-aluminum, six-piston front calipers finished in red, along with BP-10 brake pads.
The kit’s vented front rotors measure 12.88 in. (327.20 mm) in diameter and 1.10 in. thick, with a cross-drilled and slotted surface. The rotors have a dual bolt pattern: 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm).
- Position: Front
- Minimum recommended wheel diameter: 17 in.
- Wheel studs: 1/2 in.-20 included
- Fitment: Designed to fit Classic Performance Products 2 in. drop spindles only
- Parking brake provision: None
This is a front brake kit only; rear rotors and rear calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit is not remanufactured. The source states compatibility with OE master-cylinder output and ABS functions where used.
Sold as a kit. Confirm the specified spindle fitment and wheel clearance before ordering.
