Description
The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-10493-DR; Summit Racing part number WIL-140-10493-DR; UPC 889545009644) is an application-specific front brake upgrade. It is designed for applications with 11-inch factory brake rotor spindles. Wilwood states that these kits are designed for compatibility with OE master cylinder output and ABS functions where used.

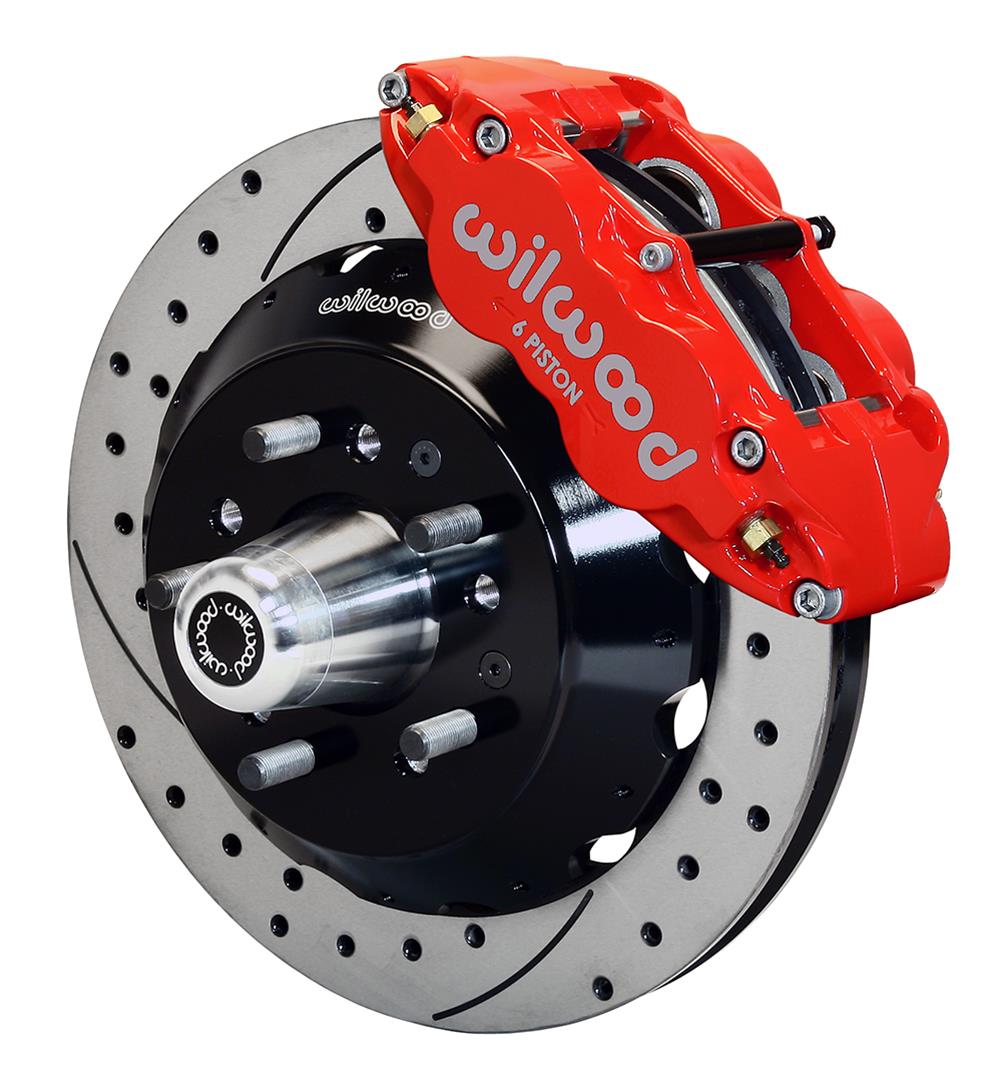

The kit pairs forged billet aluminum, red-finished six-piston front calipers with 14.00-inch (355.60 mm) vented rotors. Rotor faces are cross-drilled and slotted, and rotor thickness is 1.10 inches. The rotors have a dual bolt pattern: 5 x 4.50 and 5 x 4.75 inches (5 x 114.30 and 5 x 120.65 mm).

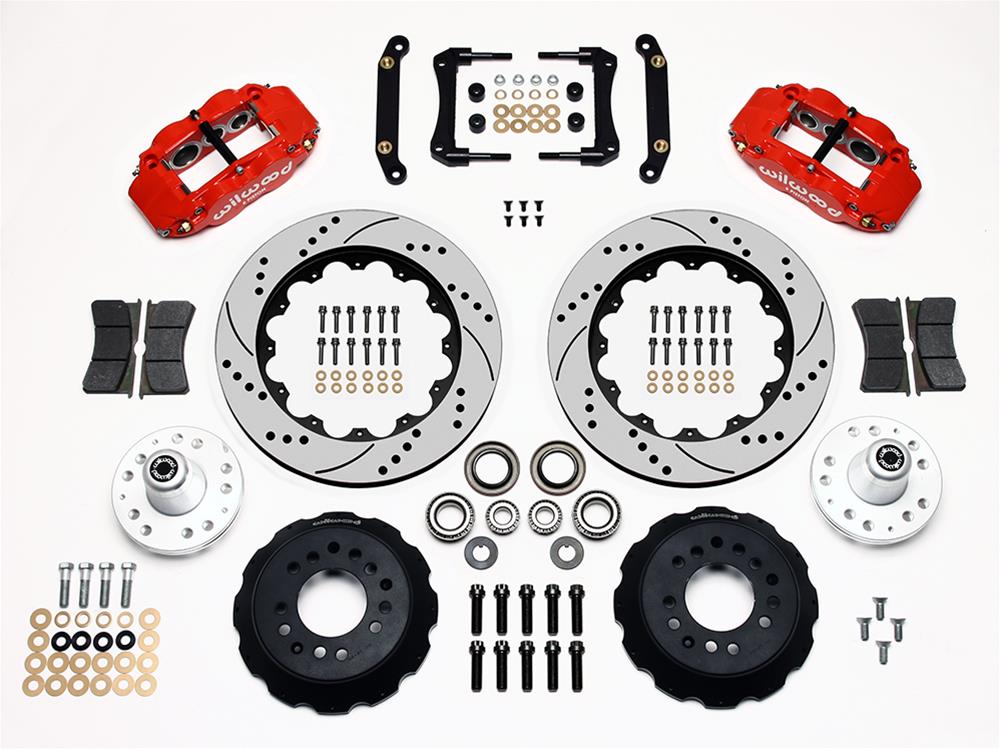

- Included: Front rotors, front calipers, BP-10 brake pads and 1/2-inch-20 wheel studs.
- Not included: Rear rotors or calipers, front spindles, master cylinder, brake booster or brake hoses.

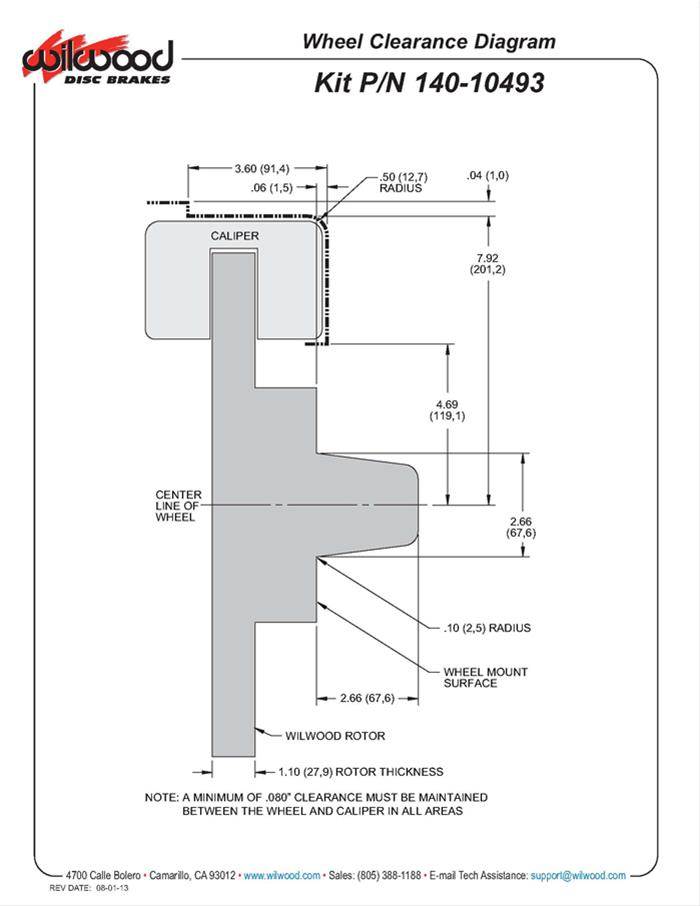

- Fitment requirement: Minimum recommended wheel diameter is 18 inches.
- Other details: No parking brake provision; not remanufactured.
Sold as one kit for the front axle. Confirm that your vehicle application uses 11-inch factory brake rotor spindles and has adequate wheel clearance before ordering.
