Description

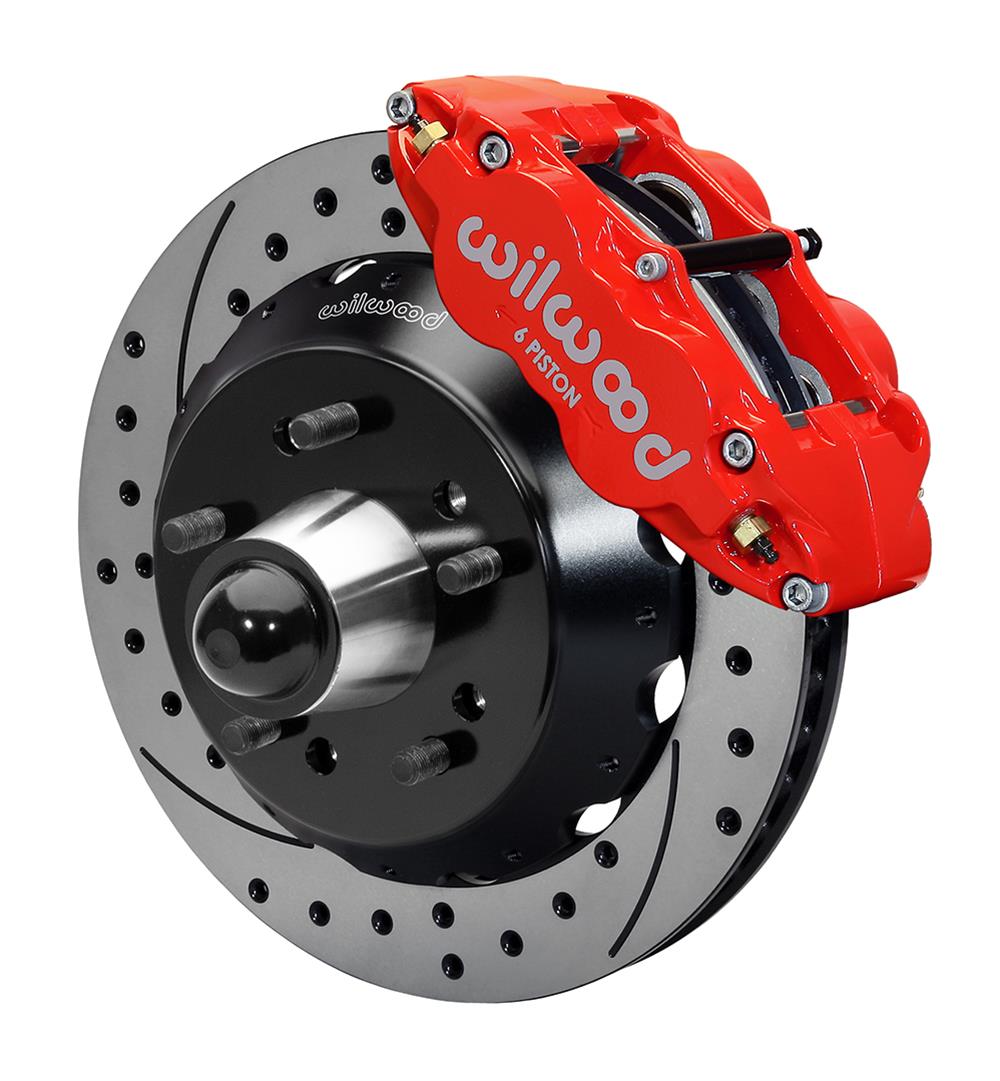

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit, part number 140-10775-DR (Summit Racing part number WIL-140-10775-DR; UPC 889545010367), is a front disc brake upgrade built around forged, six-piston Superlite 6R calipers. The kit is sold as a kit and is not remanufactured.

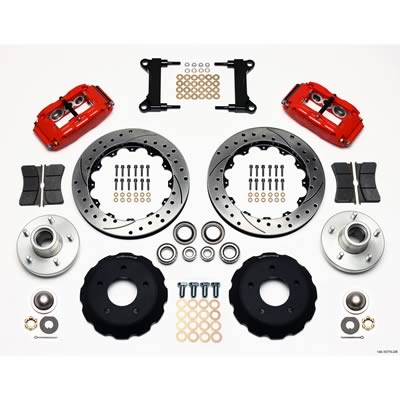

It includes red forged billet-aluminum front calipers, BP-10 brake pads and vented front rotors with a cross-drilled/slotted surface. The rotors measure 13.06 in. (331.70 mm) in diameter and 1.25 in. thick, with a dual bolt pattern for 5 x 4.75 in. and 5 x 5.00 in. applications (5 x 120.65 mm and 5 x 127.00 mm). The kit also includes 1/2 in.-20 wheel studs.
- Position: Front
- Minimum recommended wheel diameter: 17 in.
- Required fitment note: Kit must be used with a CPP or Ridetech drop spindle.

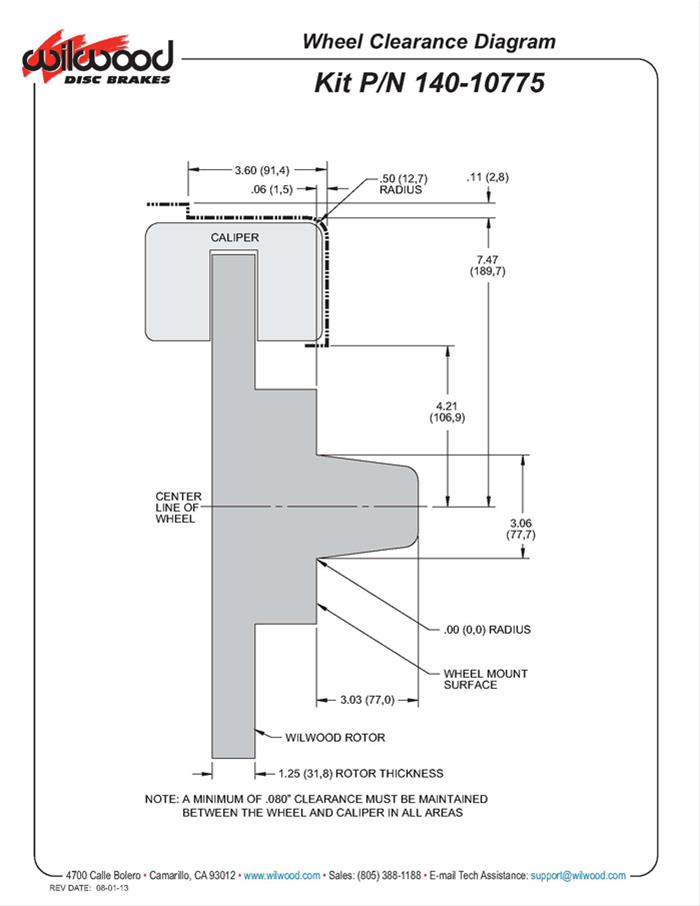

Rear rotors and rear calipers are not included. Front spindles, master cylinder, brake booster and brake hoses are also not included. There is no parking-brake provision. Check the required spindle and wheel clearance for your application before ordering.
Wilwood describes these application-specific kits as designed to work with OE master-cylinder output and ABS functions, where used. Confirm vehicle application details before purchase; the supplied kit does not include the listed vehicle-side components.
