Description
The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-9804-DR; Summit Racing part number WIL-140-9804-DR) is an application-specific front brake kit. Wilwood describes the design as compatible with OE master cylinder output and ABS functions where those systems are used.

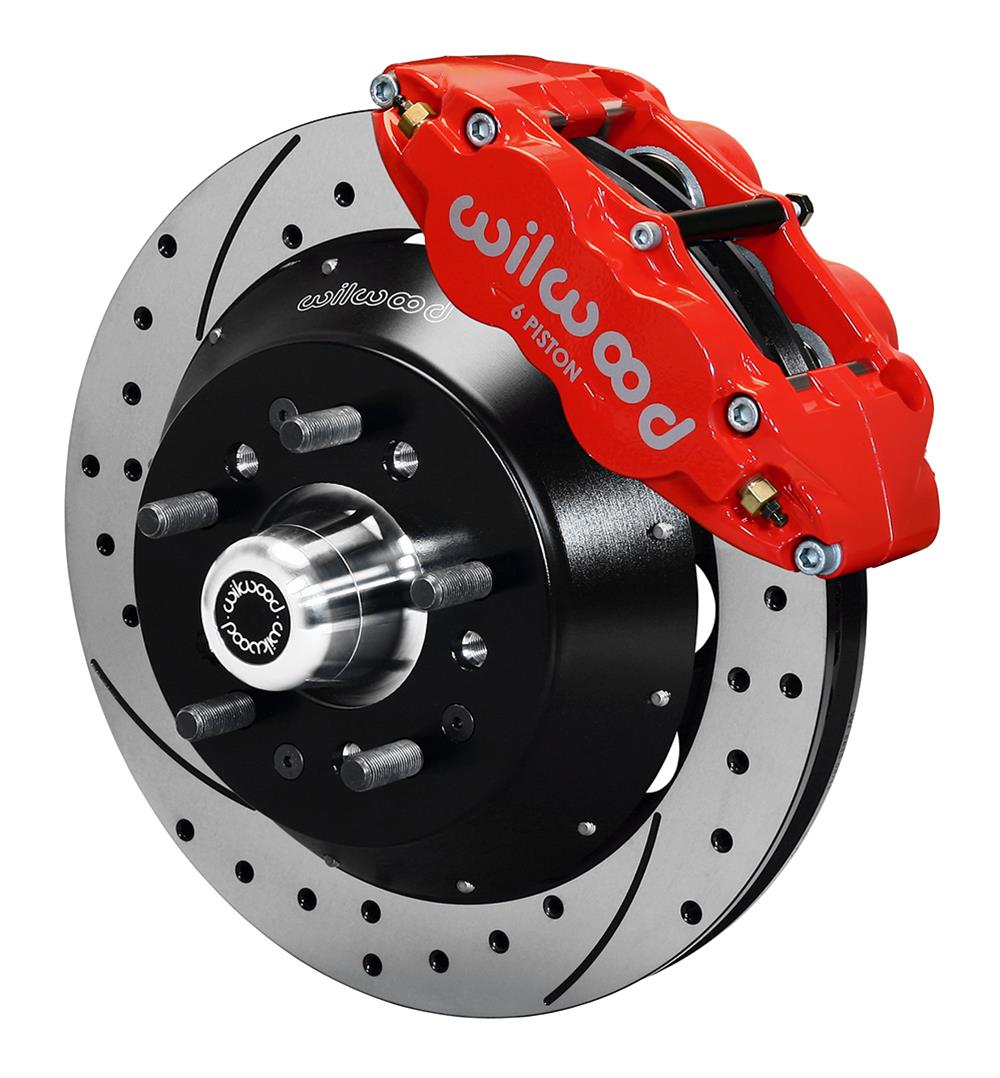

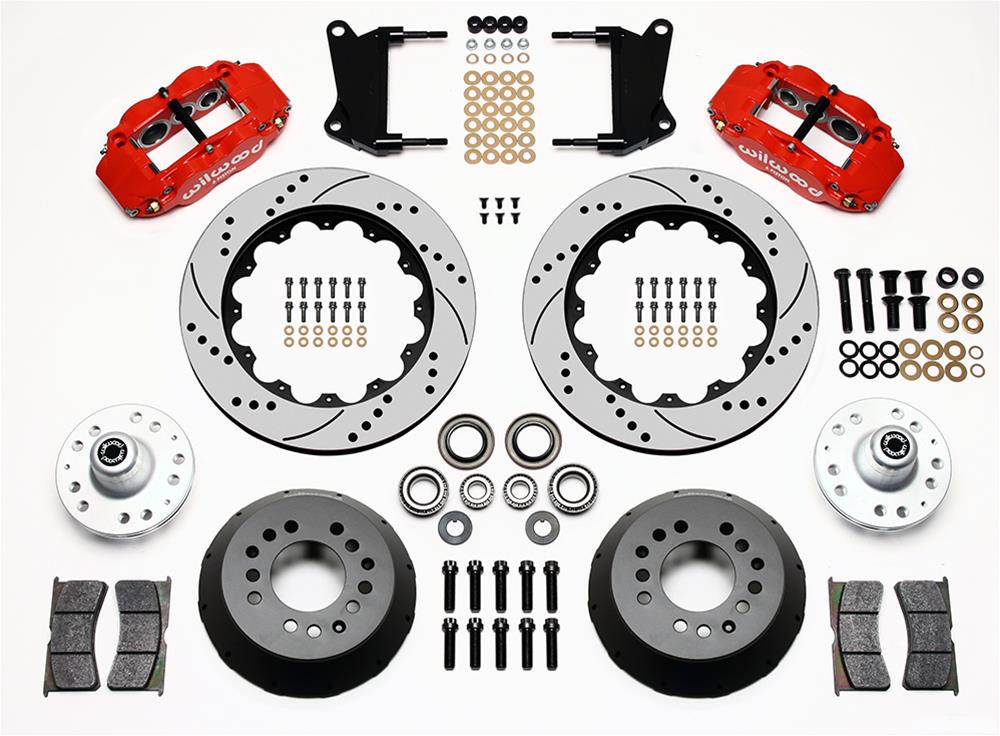

The kit includes red forged-billet-aluminum front calipers with six pistons, front rotors, and BP-10 brake pads. The rotors are vented, with cross-drilled and slotted surfaces, and measure 14.00 in. (355.60 mm) in diameter by 1.10 in. thick. They use a dual bolt pattern: 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm).
- Position: Front
- Minimum recommended wheel diameter: 18 in.
- Wheel studs: 1/2 in.-20 studs included
- Quantity: Sold as a kit
This kit does not include rear rotors or calipers, front spindles, a master cylinder, a brake booster, or brake hoses. It has no parking-brake provision and is not remanufactured.
UPC: 889545032291
