Description

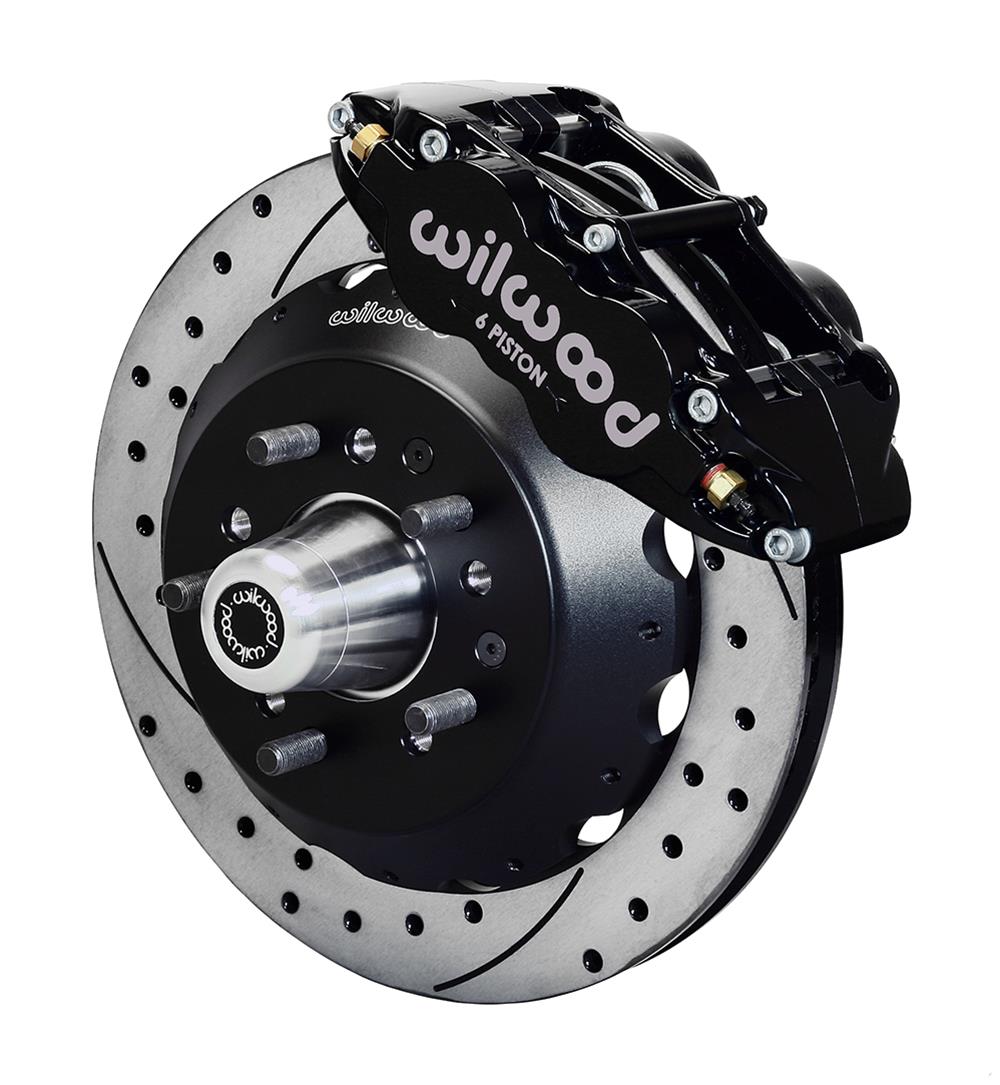

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-12637-D; Summit Racing part number WIL-140-12637-D) is a front-axle disc brake kit featuring forged, narrow six-piston Superlite 6R calipers. The calipers are made from forged billet aluminum and finished in black.
The kit includes a pair of front rotors with a vented, cross-drilled and slotted surface. Each rotor measures 12.88 in. (327.20 mm) in diameter and 1.10 in. thick. The rotors have a dual bolt pattern for 5 x 4.50 in. / 5 x 4.75 in. or 5 x 114.30 mm / 5 x 120.65 mm applications, and are finished with Black Electro Coat.
- Front calipers and BP-10 brake pads included
- Includes 1/2 in.-20 wheel studs
- Minimum recommended wheel diameter: 17 in.
- Caliper offset: 0.250 in.
- Sold as a kit; UPC: 889545017205
This is a front brake kit only. Rear rotors and calipers, brake hoses, front spindles, master cylinder and brake booster are not included. The kit has no parking-brake provision and is not remanufactured. Confirm vehicle and wheel fitment before ordering.
