Upgrade your rear braking system with the Wilwood Forged Narrow Superlite 6R Big Brake Rear Disc Brake Kit, part number 140-13866 (Summit Racing part number WIL-140-13866; UPC 889545071306). This application-specific kit is designed to work with OE master cylinder output and ABS functions where used.

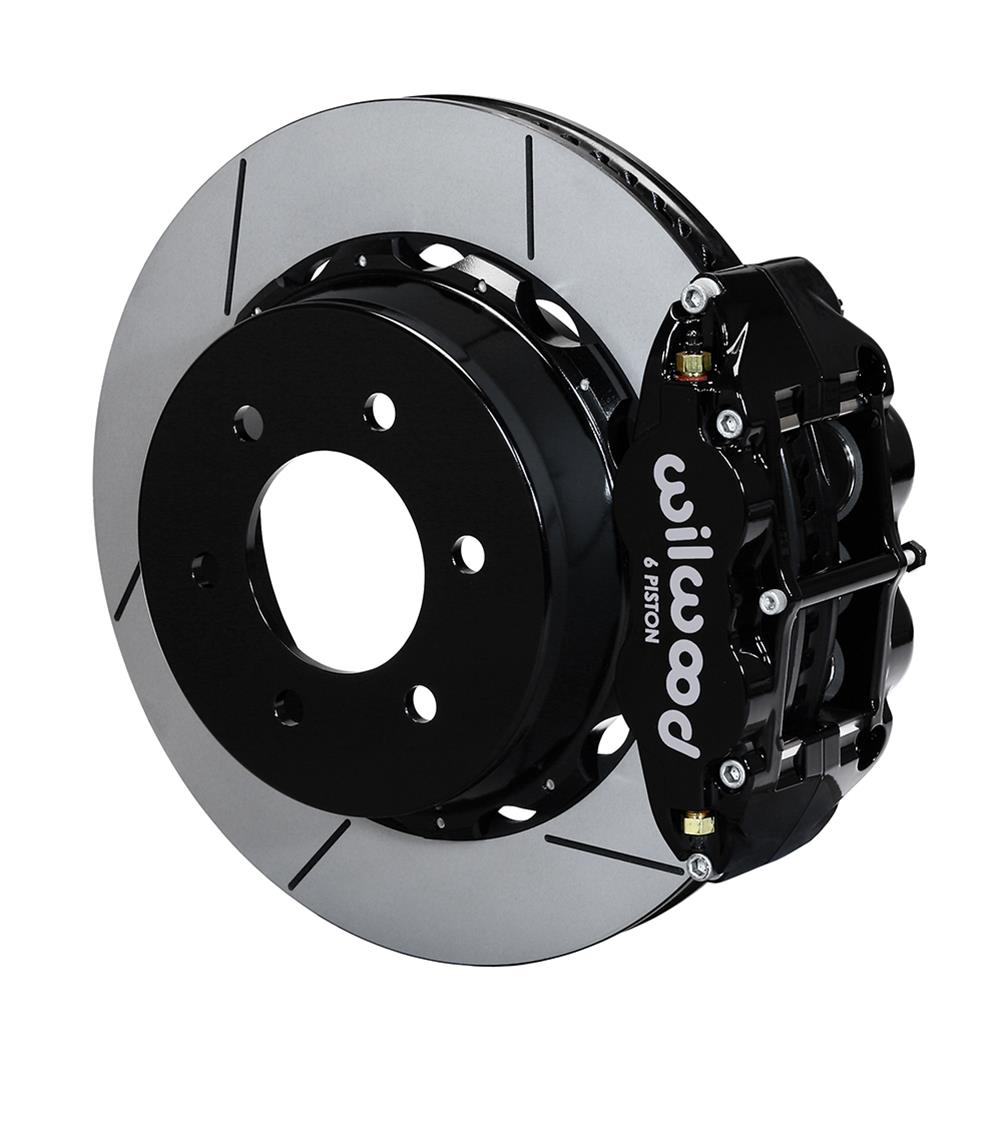

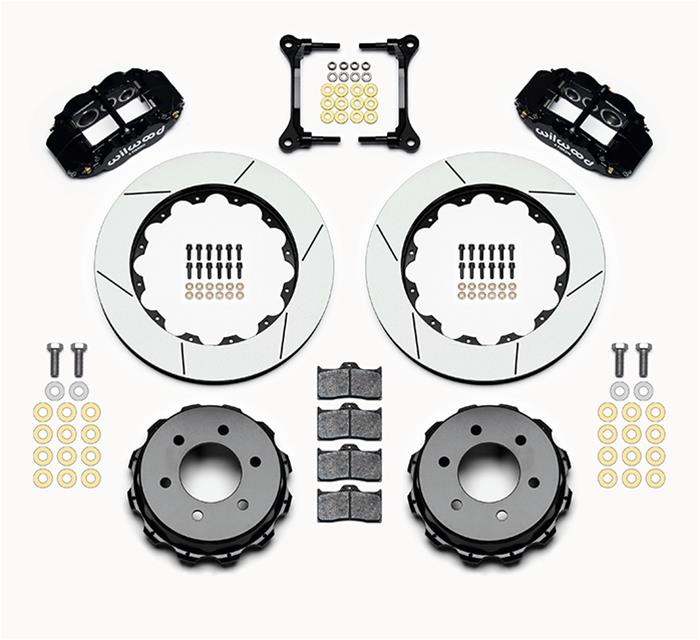

The kit includes black forged billet-aluminum six-piston rear calipers and BP-20 brake pads, along with vented rear rotors featuring a slotted surface. Rotor diameter is 14.25 inches (361.95 mm), thickness is 1.25 inches, and the bolt pattern is 6 x 135.00 mm. Caliper offset is 0.000 inch.
- Rear disc brake kit; power-assist type
- Parking brake provision: internal drum style
- Minimum recommended wheel diameter: 18 inches
- Sold as a kit
Front rotors, front calipers, front spindles, master cylinder, brake booster, and brake hoses are not included. The kit is not remanufactured. It will not fit vehicles with electric parking brakes or 7-lug wheels; it is for 6-lug wheels only. The brake line kit will not fit 2014-and-newer models with SVT-width track.
