Description

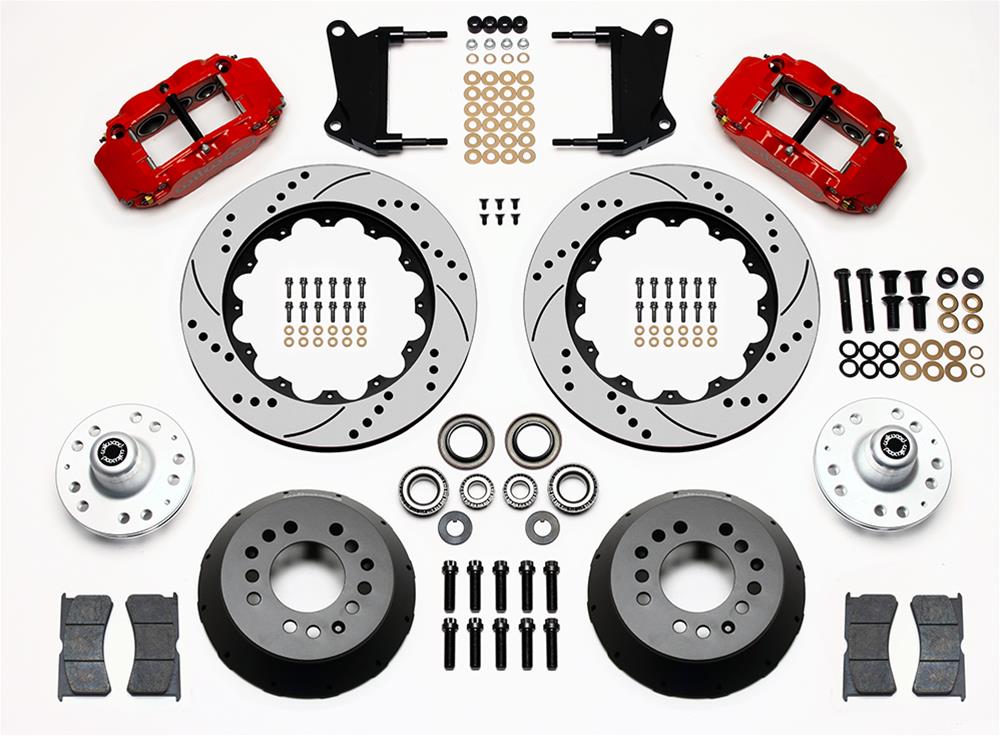

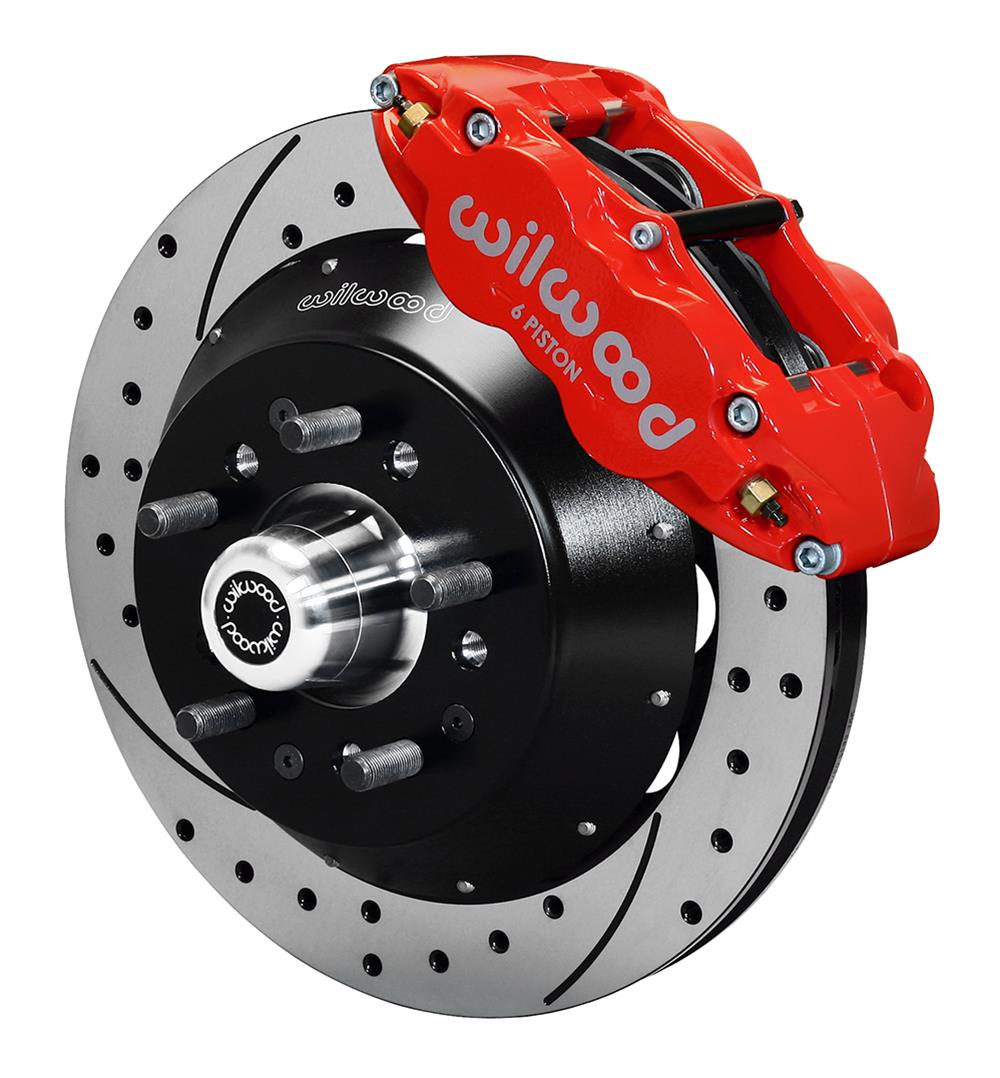

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-15409-DR; Summit Racing part number WIL-140-15409-DR) is a front brake upgrade built around forged billet-aluminum, six-piston calipers. The calipers are finished in red, and the kit is application-specific. Wilwood states that the design is compatible with OE master-cylinder output and ABS functions where used.
The kit includes vented front rotors measuring 14.00 in. (355.60 mm) in diameter and 1.10 in. thick. Their friction surfaces are cross-drilled and slotted. The rotors use a dual bolt pattern: 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm).
- Front calipers: forged billet aluminum, six pistons, red
- Brake pads: included; BP-10 friction material
- Wheel studs: 1/2 in.-20 included
- Minimum recommended wheel diameter: 18 in.
- Parking-brake provision: none
This is a front-only kit. Rear rotors and rear calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit is not remanufactured and is sold as one kit.

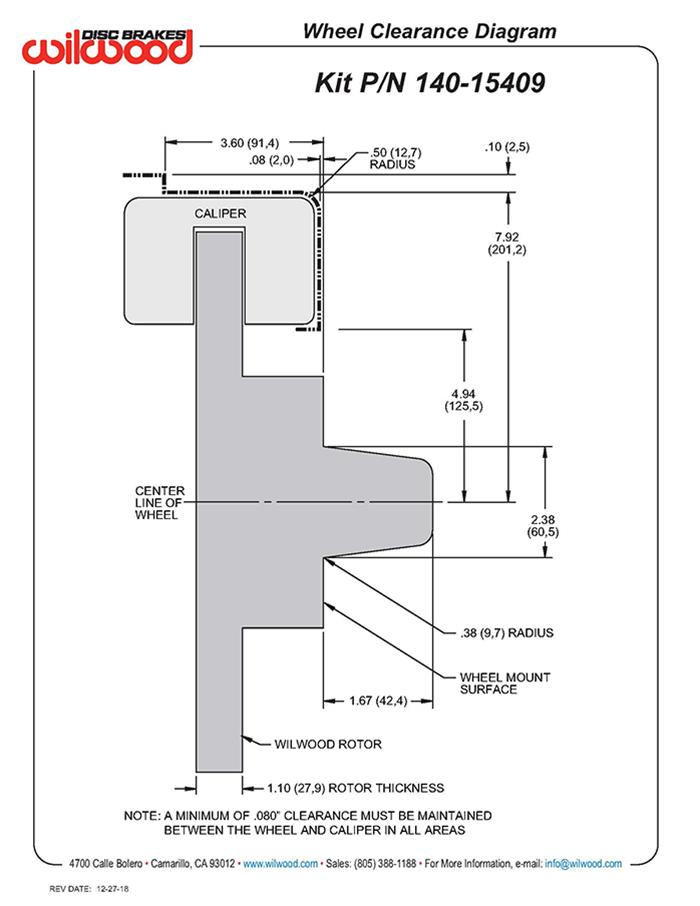

Verify the application and wheel clearance before ordering. Product identifiers: UPC 889545087772.
