Description

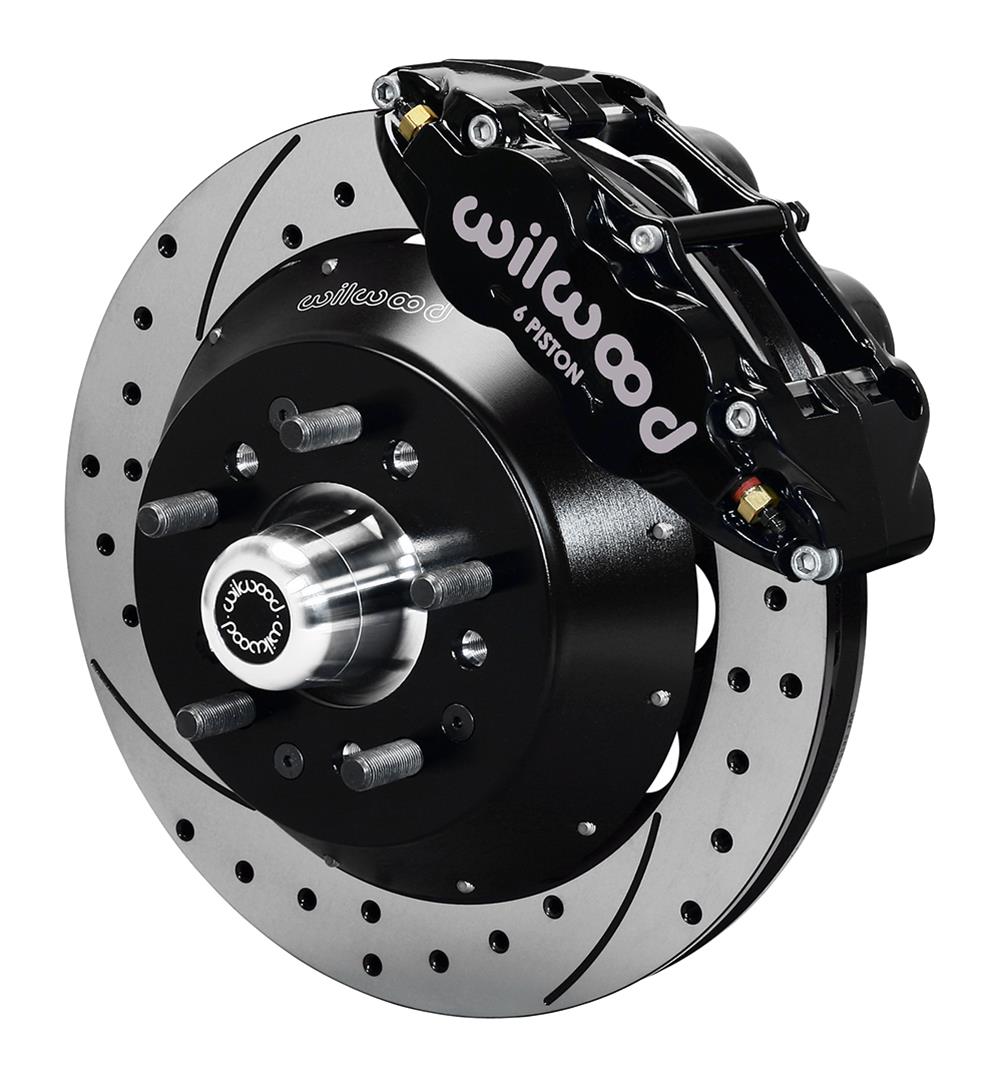

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (part number 140-9804-D; Summit Racing part number WIL-140-9804-D) is a front disc brake kit with forged billet-aluminum, six-piston calipers finished in black. It is application-specific; confirm that this part number matches your vehicle before ordering.
The kit includes a pair of 14.00-inch (355.60 mm) vented front rotors with cross-drilled and slotted surfaces. Rotors are 1.10 inches thick and have a dual bolt pattern for 5 x 4.50-inch (5 x 114.30 mm) or 5 x 4.75-inch (5 x 120.65 mm) applications. BP-10 brake pads and 1/2-inch-20 wheel studs are included.
- Position: Front
- Calipers: Forged billet aluminum, six pistons, black finish
- Minimum recommended wheel diameter: 18 inches
- Quantity: Sold as a kit
No rear rotors or rear calipers are included. The kit also does not include front spindles, a master cylinder, a brake booster or brake hoses, and it has no parking-brake provision. The product is not remanufactured.

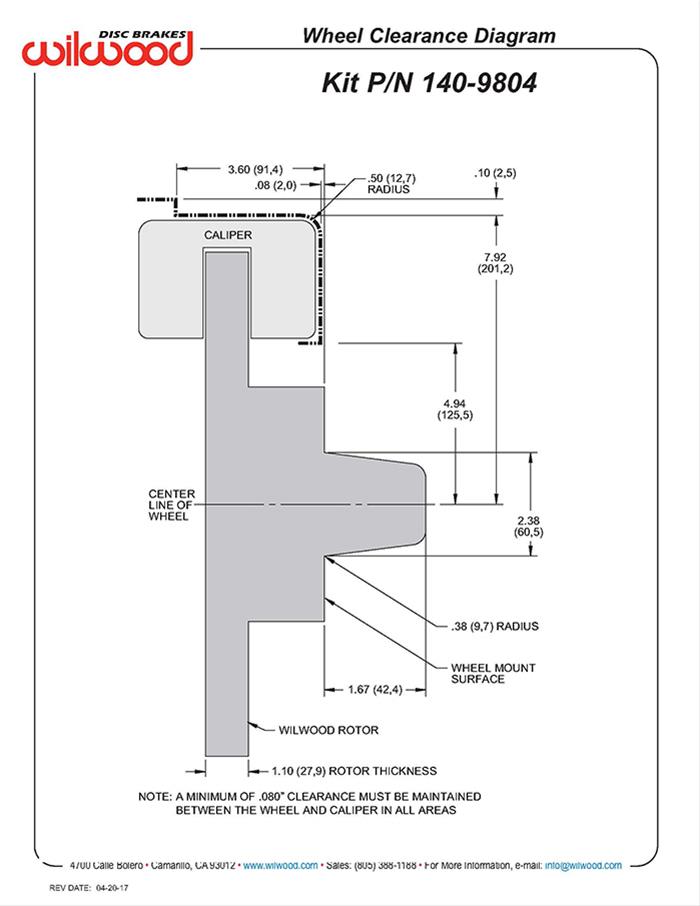

Wilwood describes the application-specific kit design as compatible with OE master-cylinder output and ABS functions where used. Check your vehicle’s application requirements and wheel clearance before purchase.
