Description

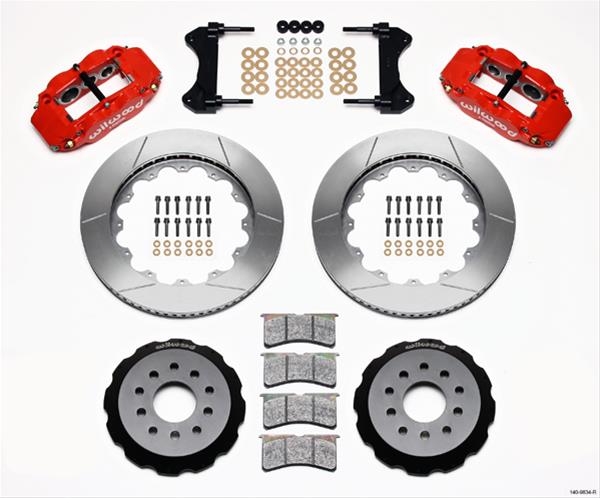

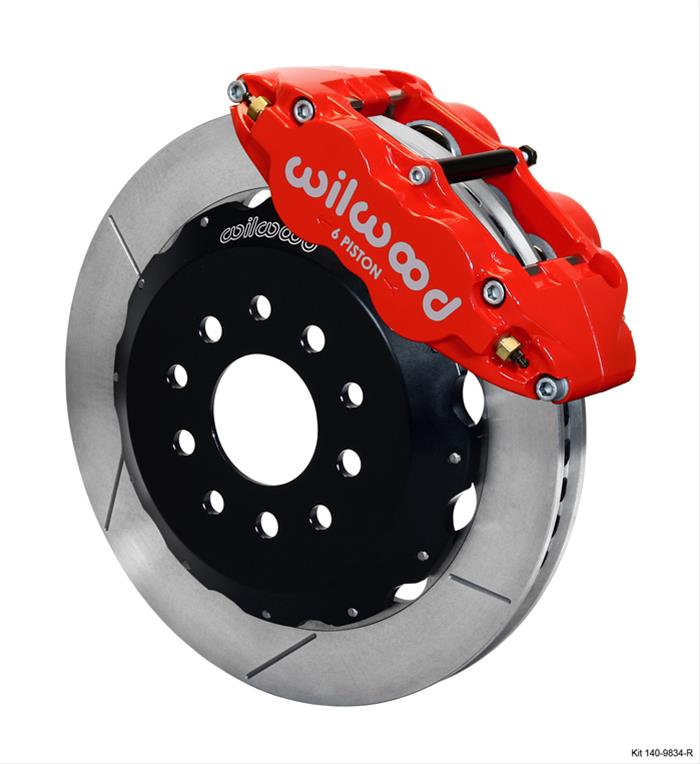

Upgrade the front brakes with the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit, part number 140-9834-R. This application-specific kit includes forged billet aluminum six-piston front calipers in red, slotted vented rotors, and brake pads with BP-10 friction material. Wilwood describes the design as compatible with OE master cylinder output and ABS functions where used.
- Rotor size: 14.00 in. (355.60 mm) diameter and 1.25 in. thick
- Rotor bolt patterns: dual 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm)
- Minimum recommended wheel diameter: 18 in.
- Position: Front; sold as a kit
The kit is for front-brake installation only. No rear rotors or rear calipers are included, and there is no parking brake provision. Front spindles, master cylinder, brake booster, and brake hoses are also not included.

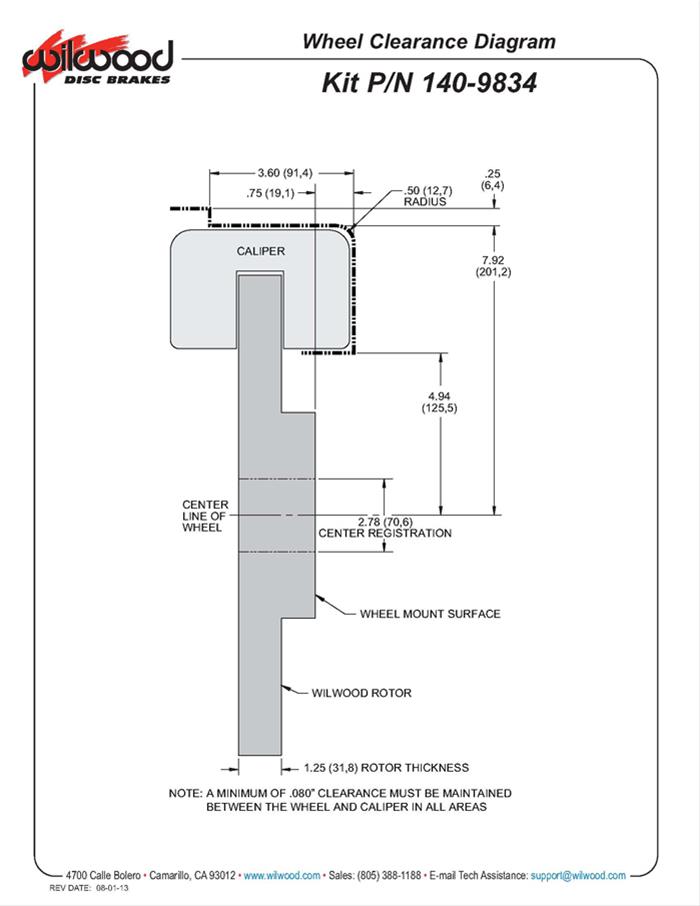

This kit is new, not remanufactured. Manufacturer: Wilwood Disc Brakes. Summit Racing part number: WIL-140-9834-R; UPC: 889545032475. Confirm the kit’s application and wheel clearance for your vehicle before ordering.
