Description

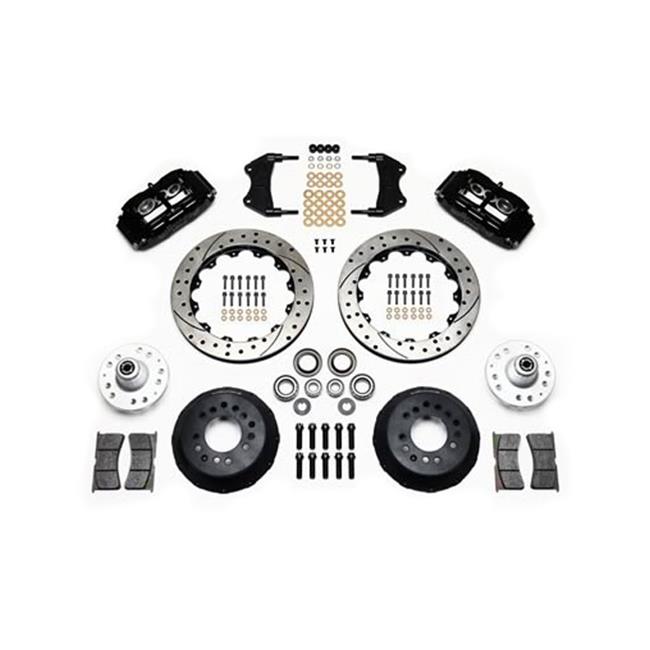

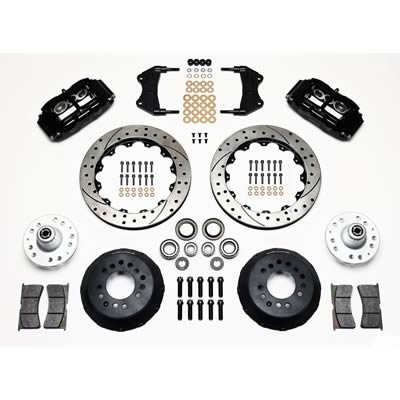

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-9919-D) is an application-specific front brake package featuring forged billet aluminum six-piston calipers and vented rotors. It is designed for use with Wilwood Pro Spindles only; check the Required Parts tab for additional information before ordering.
- Front rotors: 12.88 in. (327.20 mm) diameter, 1.10 in. thick, vented, with a cross-drilled/slotted surface
- Rotor bolt patterns: dual 5 x 4.50 in./5 x 4.75 in. (5 x 114.30 mm/5 x 120.65 mm)
- Front calipers: forged billet aluminum, six pistons, black finish
- Brake pads: included; BP-10 friction material

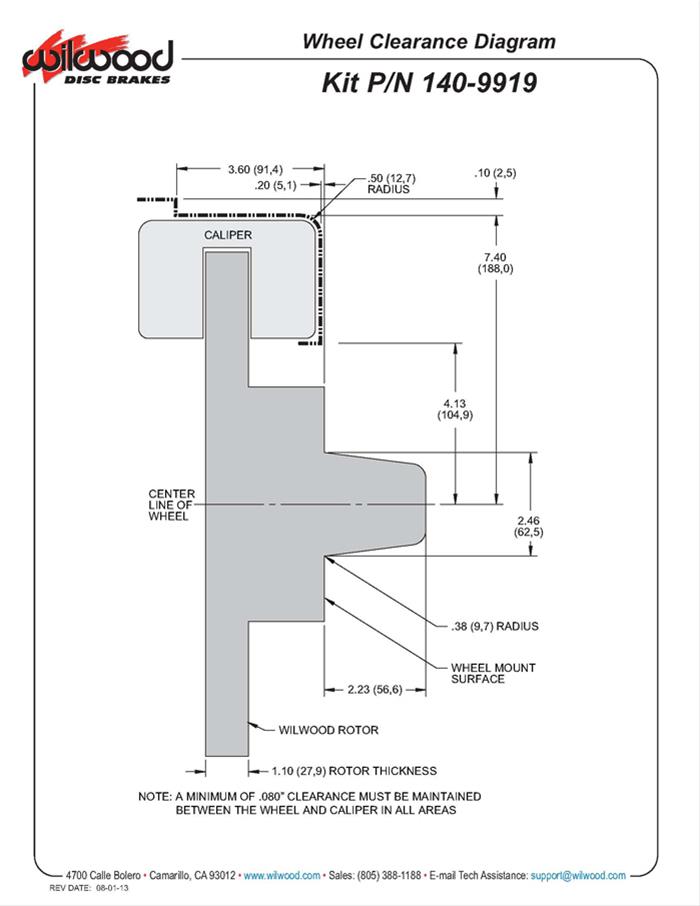

- Minimum recommended wheel diameter: 17 in.; offset: 0.680 in.
The kit is intended to provide increased front braking capacity and is described as compatible with OE master cylinder output and ABS functions, where used. It includes 1/2 in.-20 wheel studs. The kit is sold as a front set; no rear rotors or rear calipers are included.
Front spindles, master cylinder, brake booster, and brake hoses are not included. There is no parking brake provision. This is not a remanufactured kit. Confirm application requirements and any additional required parts before purchase.
