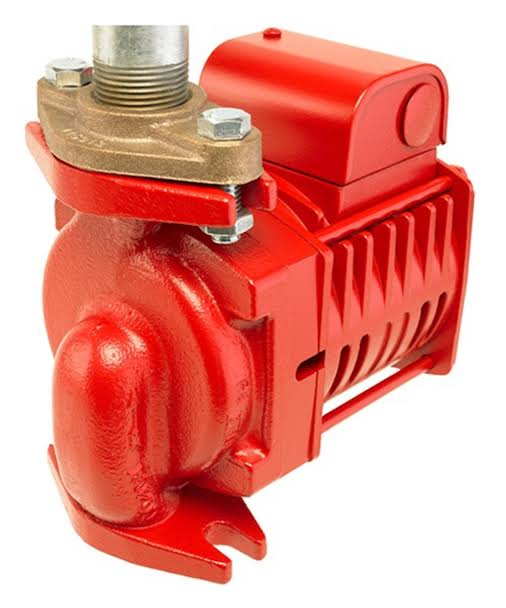

Armstrong 182212-653 E24.2 Cast Iron Circulator Pump
Product Overview
The Armstrong 182212-653 E24.2 is a heavy-duty, end-suction centrifugal pump built for demanding commercial and industrial circulation applications. Featuring robust cast iron construction and designed for continuous operation, this circulator pump delivers reliable performance in HVAC systems, industrial processes, and municipal water applications where durability and long service life are essential.
Engineered with a flexible-coupled, base-mounted design, the E24.2 separates the pump and motor for enhanced serviceability and maintenance access. This configuration allows for straightforward motor replacement or service without disturbing the pump casing or piping connections. The pump’s heavy-duty construction includes precision-machined components and industrial-grade bearings, ensuring smooth operation and extended service intervals even in the most challenging environments.
For mechanical engineers, facility managers, and contractors who demand industrial-grade reliability for large-building systems or process applications, the Armstrong E24.2 provides the performance and durability needed for critical circulation duties.
Commercial Pumping Resources
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Part Number | 182212-653 |
| Series | Armstrong E24 Series |
| Model | E24.2 |
| Construction | Cast Iron |
| Mounting | Base-Mounted, Horizontal |
| Coupling | Flexible Coupling |
| Shaft Seal | Mechanical Seal |
| Maximum Pressure | 175 PSI / 12.1 Bar |
| Maximum Temperature | 250°F / 121°C |
| Connection Type | Flanged |
| Motor Mount | Standard NEMA Frame |
What’s Included (Pump Only)
| Included | Not Included / Required Separately |
|---|---|
| ✓ Pump Casing & Volute | ✗ Motor (Required separate purchase) |
| ✓ Heavy-Duty Baseplate | ✗ Coupling Guard |
| ✓ Shaft & Bearing Assembly | ✗ Isolation Valves |
| ✓ Mechanical Seal | ✗ Suction Diffuser |
| ✓ Impeller | ✗ Installation Hardware |
| ✓ Coupling Half | ✗ Alignment Services |
🛠️ Recommended for Complete System
-
Motor: Baldor Industrial Motor
-
Isolation: Flanged Isolation Valve Set
-
Protection: Industrial Coupling Guard
Comparison Table: E24 Series vs. Alternative Pumps
| Feature | Armstrong E24.2 | Close-Coupled Circulator | Vertical In-Line Pump |
|---|---|---|---|
| Serviceability | Excellent (Easy motor access) | Poor | Moderate |
| Maintenance Cost | Low (Component-level repair) | High (Unit replacement) | Moderate |
| Vibration Control | Excellent (Base-mounted) | Fair | Good |
| Footprint | Large Horizontal | Compact | Vertical |
| Motor Flexibility | High (Any manufacturer) | Limited | Limited |
| Ideal Applications | Large Systems, Continuous Duty | Space-limited | Limited floor space |
Frequently Asked Questions (FAQs)
Q1: What applications is the E24.2 pump designed for?
A: This pump is ideal for:
-
Large commercial building HVAC systems
-
Industrial process water circulation
-
Municipal water distribution
-
Boiler feed and condenser water systems
-
Primary/secondary pumping applications
Q2: What are the advantages of a base-mounted design?
A: Base-mounted pumps offer:
-
Easy Maintenance: Motor can be serviced independently
-
Better Heat Dissipation: Separation reduces heat transfer
-
Flexible Motor Selection: Various manufacturers can be used
-
Vibration Damping: Baseplate isolates vibration
-
Alignment Access: Easier to achieve proper alignment
Q3: What motor size is required for this pump?
A: Motor selection depends on your system’s flow and head requirements. The E24.2 frame accommodates various motor sizes, but you must consult the pump performance curve and system calculations to determine the exact horsepower needed.
Q4: What maintenance does this pump require?
A: Regular maintenance includes:
-
Periodic bearing lubrication
-
Mechanical seal inspection/replacement
-
Coupling alignment verification
-
Vibration monitoring
-
Performance testing against original curves
Q5: How critical is proper installation alignment?
A: Extremely critical. Misalignment is a leading cause of premature failure in base-mounted pumps. Laser alignment or reverse indicator methods are recommended during installation and routine maintenance.
Internal Link: Learn proper techniques in our Pump Alignment Guide.
Pros and Cons
| Pros | Cons |
|---|---|
| Excellent Serviceability: Easy access to all components | Motor Not Included: Requires separate purchase |
| Heavy-Duty Construction: Cast iron built for industrial service | Large Footprint: Requires significant floor space |
| Superior Vibration Control: Base-mounted design reduces noise | Complex Installation: Requires precise alignment |
| High Flexibility: Compatible with various motor brands | Higher Skill Required: Needs alignment expertise |
| Ideal for Continuous Duty: Designed for 24/7 operation | Higher Initial Cost: More than close-coupled units |
Conclusion & Ideal Use Case
The Armstrong 182212-653 E24.2 cast iron circulator pump is engineered for commercial and industrial applications where reliability, serviceability, and continuous operation are essential requirements.
This pump is perfectly suited for:
-
Large Commercial HVAC Systems
-
Industrial Process Cooling Circuits
-
Municipal Water Applications
-
Central Utility Plants
-
High-Rise Building Mechanical Systems
If your application demands industrial-grade construction with the serviceability needed to minimize downtime in critical operations, the Armstrong E24.2 delivers the performance and reliability expected from a world-class pump manufacturer.
🔗 Official Technical Resource
For performance curves, installation manuals, and engineering data, visit the Armstrong Fluid Handling Technical Hub for the most accurate and up-to-date information.
