Description

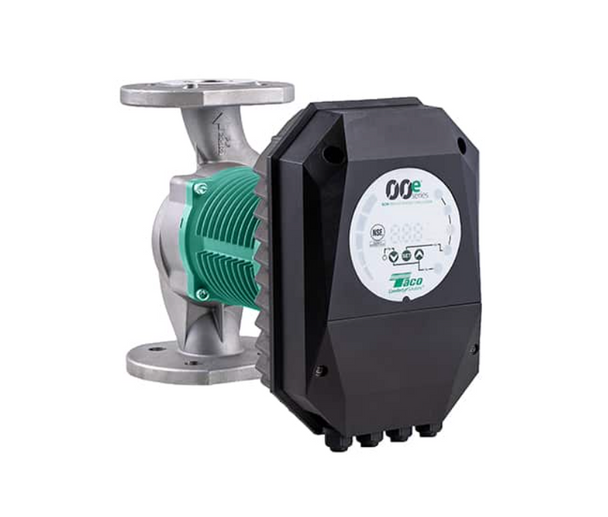

For the most demanding commercial and industrial applications requiring superior corrosion resistance and intelligent performance, the Taco VR20H-SF VR Series Stainless Steel ECM Circulator sets a new standard. This advanced high-head circulator combines variable speed ECM technology with all 316L stainless steel wetted parts, delivering unprecedented efficiency and durability in aggressive fluid environments. Engineered for complex hydronic systems with significant pressure drop, this circulator automatically adjusts its speed to match exact system demand, reducing energy consumption by up to 80% compared to fixed-speed models.
The pump features Taco’s innovative “R” platform design with a removable cartridge for easy serviceability without disturbing piping connections. The 316L stainless steel construction provides maximum resistance to chlorides and aggressive water chemistry, making it ideal for coastal installations, chemical processes, and high-purity water systems. With built-in differential pressure and power measurement capabilities, the VR20H-SF offers sophisticated control options for building automation system integration and advanced system diagnostics. For system design guidance, read our blog on [Optimizing Commercial Hydronic Systems with Variable Speed Circulators].
As part of Taco’s premium VR series, this circulator represents the cutting edge of pumping technology for critical applications where energy efficiency, material compatibility, and smart control are non-negotiable. From large commercial buildings with complex zoning to industrial processes requiring precise temperature control, the VR20H-SF delivers the intelligent, reliable performance that modern mechanical systems demand. Learn about its advanced features in our article [The Evolution of Smart Pumping in Commercial HVAC Systems].
Technical Specifications
| Specification | Details |
|---|---|
| Model | Taco VR20H-SF 00e |
| Motor Technology | Electronically Commutated (ECM) |
| Motor Power | Equivalent to 1/12 – 1/2 HP Range |
| Connection Size | 1-1/4″ FIPT x 1-1/4″ FIPT |
| Wetted Parts | 316L Stainless Steel |
| Impeller Material | 316L Stainless Steel |
| Housing Material | 316L Stainless Steel |
| Max Head | 42 ft (12.8 m) |
| Max Flow | 44 US gpm (167 L/min) |
| Control Options | Constant Pressure, Constant Speed, Proportional Pressure |
| Max Operating Pressure | 150 psi (10.3 bar) |
| Max Fluid Temperature | 230°F (110°C) |
| Voltage | 115/208-230V, 1-Phase |
| Communication | Taco Connect, BACnet MS/TP, Modbus RTU |
Comparison Table: Taco VR20H-SF vs. Traditional Circulators
| Feature | Taco VR20H-SF (ECM/Variable) | Standard Fixed-Speed Circulator | Competitor ECM Circulator |
|---|---|---|---|
| Motor Technology | ECM Variable Speed | Fixed Speed PSC Motor | ECM Variable Speed |
| Energy Efficiency | Up to 80% Savings | Standard Efficiency | Up to 70% Savings |
| Material Construction | 316L Stainless Steel | Typically Cast Iron/Bronze | 304 Stainless or Bronze |
| Control Flexibility | Multiple Smart Control Modes | Manual Speed Settings | Limited Control Options |
| Communication | BACnet & Modbus Capable | None | Proprietary Protocols |
| Serviceability | Removable Cartridge | Limited Service Access | Varies |
Frequently Asked Questions (FAQs)
Q1: What is the primary advantage of ECM technology in this circulator?
ECM technology allows the VR20H-SF to precisely match its speed and power consumption to the exact system demand, eliminating the energy waste of fixed-speed operation. This typically reduces energy consumption by 50-80% while providing superior system control and protection against dead-head conditions.
Q2: What applications is this high-head circulator best suited for?
The VR20H-SF is ideal for commercial buildings with multi-zone heating/cooling, radiant systems with long pipe runs, snow melt applications, domestic water recirculation in high-rises, and industrial processes requiring consistent pressure despite varying flow demands.
Q3: What is the difference between 316L and 304 stainless steel?
316L stainless contains molybdenum, which provides significantly better corrosion resistance, particularly against chlorides and industrial chemicals. This makes the VR20H-SF with 316L construction suitable for coastal environments, swimming pool systems, and chemical applications where 304 stainless might corrode.
Q4: Can this circulator be integrated with building automation systems?
Yes, with built-in BACnet MS/TP and Modbus RTU protocols, the VR20H-SF can be seamlessly integrated into most building management systems for centralized monitoring, control, and alarm management. For integration guidance, see our [Taco VR Series BAS Integration Guide].
Q5: What maintenance does this circulator require?
The pump is essentially maintenance-free thanks to its wet-rotor design and stainless steel construction. The primary maintenance involves ensuring clean system water to prevent seal damage. The removable cartridge design allows for easy replacement if service is ever needed.
Pros and Cons
| Pros | Cons |
|---|---|
| Exceptional Energy Efficiency with ECM technology | Premium Initial Investment required |
| Superior Corrosion Resistance with 316L stainless steel | Complex Programming may require technical expertise |
| Smart Control Capabilities with multiple operating modes | Higher Cost than fixed-speed stainless circulators |
| Building Automation Integration with open protocols | Electronic Complexity may require specialized service |
| Removable Cartridge for easy serviceability | Requires Clean System Water for optimal longevity |
| High-Head Capability for demanding applications | Specific Voltage Requirements need verification |
Conclusion & Ideal Use Cases
The Taco VR20H-SF VR Series Stainless Steel ECM Circulator represents the pinnacle of intelligent, efficient fluid handling for corrosive and high-head applications. While requiring a significant initial investment, its combination of advanced motor technology, premium materials, and smart controls delivers exceptional long-term value through dramatically reduced operating costs and extended service life.
This advanced circulator is ideally specified for:
-
Large Commercial Buildings: Multi-zone HVAC systems with varying demand
-
Coastal & Corrosive Environments: Buildings in marine climates requiring maximum corrosion resistance
-
High-Rise Buildings: Domestic water recirculation and HVAC systems with significant static head
-
Smart Building Projects: New construction with integrated building automation systems
-
Industrial Applications: Processes requiring precise pressure control with corrosive fluids
For less demanding corrosive applications, consider the [Taco 1600 Series Stainless Steel Circulators], while for standard-efficiency high-head applications, the [Taco 00-R Series Cast Iron Circulators] may be sufficient. The VR20H-SF occupies the premium position for applications where energy efficiency, material compatibility, and intelligent control are all critical requirements.
Contact our commercial HVAC specialists today for energy savings analysis, control strategy development, and specification support for your next high-performance pumping application.
