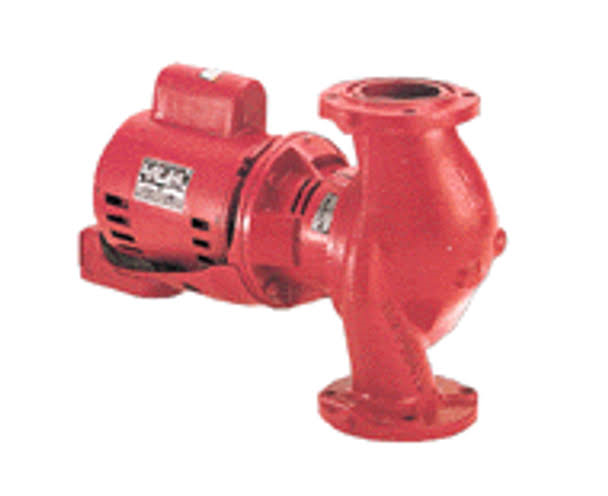

Bell & Gossett 105098 PD37S BI Circulator Pump with 3/4 HP Motor
Product Overview
The Bell & Gossett 105098 PD37S BI is a high-quality, bronze-constructed circulator pump designed for reliable performance in residential and light commercial hydronic heating systems. This complete package comes equipped with a robust 3/4 HP motor, making it an ideal drop-in replacement or upgrade for circulating hot water in boilers, radiant floor systems, and other closed-loop applications.
Featuring durable bronze construction and a compact, inline design, this circulator offers excellent corrosion resistance and easy installation in space-constrained locations. The “BI” designation indicates a “Built-In” design with a removable cartridge assembly, allowing for quick and easy service without disturbing the piping connections. As a complete close-coupled unit, it arrives ready for installation, minimizing downtime and labor costs.
For homeowners, HVAC technicians, and contractors seeking Bell & Gossett quality in a versatile, service-friendly circulator, the PD37S BI delivers proven performance and long-term reliability.
Hydronic System Resources
Technical Specifications
| Specification Category | Detail |
|---|---|
| Manufacturer Part Number | 105098 |
| Series | Bell & Gossett PD37S |
| Model Type | BI (Built-In) |
| Motor HP | 3/4 HP |
| Motor Speed | Single-Speed |
| Voltage | 120V, 1-Phase |
| Connection Size | 1-1/4″ Female NPT |
| Connection Type | Threaded |
| Maximum Working Pressure | 125 PSI / 8.6 Bar |
| Maximum Temperature | 240°F / 116°C |
| Construction – Body | Bronze |
| Construction – Impeller | Composite |
| Shaft Seal | Mechanical Seal |
| Serviceability | Removable Cartridge |
🖼️ IMAGE: [bell-gossett-pd37s-dimension-diagram.png]
Alt-text: Technical dimension diagram of Bell & Gossett PD37S circulator showing flange sizes, mounting points, and overall measurements.
What’s Included
| Included | Not Included / Required Separately |
|---|---|
| ✓ Complete Circulator Assembly | ✗ Isolation Valves |
| ✓ 3/4 HP Motor | ✗ Pipe Sealant/Teflon Tape |
| ✓ Bronze Body with Removable Cartridge | ✗ Power Connection |
| ✓ Mechanical Seal | ✗ Mounting Bracket (if needed) |
| ✓ Installation Guide |
🛠️ Recommended for a Complete Installation
-
Isolation: Bell & Gossett 1-1/4″ Union Isolation Valves
-
Control: Circulator Relay and Controller
-
Maintenance: Replacement Cartridge Assembly
Comparison Table: PD37S vs. Alternative Circulators
| Feature | Bell & Gossett PD37S BI | Standard Cast Iron Circulator | Basic Residential Circulator |
|---|---|---|---|
| Construction | Bronze (Corrosion Resistant) | Cast Iron | Mixed Materials |
| Serviceability | Excellent (Removable Cartridge) | Good | Poor |
| Application | Residential/Light Commercial | Residential | Residential Only |
| Durability | High (Bronze Construction) | Good | Standard |
| Motor Quality | Commercial Grade | Light Commercial | Residential Grade |
| Life Expectancy | 15+ Years | 10-15 Years | 5-10 Years |
Frequently Asked Questions (FAQs)
Q1: What is the advantage of the removable cartridge design?
A: The BI (Built-In) cartridge system allows for:
-
Quick service without disconnecting piping
-
Easy replacement of wear components
-
Minimal downtime during maintenance
-
Cost-effective repairs versus full unit replacement
Q2: What applications is this 3/4 HP circulator suitable for?
A: The PD37S BI is ideal for:
-
Residential boiler systems
-
Hydronic zone control applications
-
Radiant floor heating systems
-
Small commercial heating systems
-
Snow melt applications
🖼️ IMAGE: [pd37s-cartridge-replacement.jpg]
Alt-text: Technician demonstrating easy cartridge replacement in Bell & Gossett PD37S circulator without disconnecting pipes.
Q3: Is this pump self-lubricating?
A: Yes, the wet-rotor design uses the system fluid for lubrication and cooling, eliminating the need for routine lubrication maintenance.
Q4: Can this pump be used with potable water systems?
A: While bronze construction is often used in potable water applications, you should verify NSF/ANSI 61 certification for this specific model before using in drinking water systems.
Q5: What maintenance does this circulator require?
A: Maintenance is minimal:
-
Annual visual inspection for leaks
-
Ensuring clean system fluid
-
Checking for unusual noises
-
Periodic cartridge inspection/replacement
Internal Link: Learn proper installation in our Circulator Pump Installation Guide.
Pros and Cons
| Pros | Cons |
|---|---|
| Easy Serviceability: Removable cartridge for quick maintenance | Single-Speed Operation: Lacks variable speed capability |
| Bronze Construction: Excellent corrosion resistance | Not for Potable Water: Verify certification if needed |
| Complete Package: Motor included and assembled | Higher Initial Cost: More than basic residential circulators |
| Quiet Operation: Wet-rotor design minimizes noise | Limited Flexibility: Fixed performance characteristics |
| Bell & Gossett Quality: Industry-leading reputation | Professional Installation: Recommended for optimal performance |
Conclusion & Ideal Use Case
The Bell & Gossett 105098 PD37S BI circulator pump is an excellent choice for residential and light commercial hydronic applications where reliability, serviceability, and quality construction are important considerations.
This pump is perfectly suited for:
-
Residential Hydronic Heating Systems
-
Boiler Replacement and Retrofit Projects
-
Zone Control Applications
-
Radiant Floor Heating Systems
-
Light Commercial Building HVAC
If you need a durable, service-friendly circulator from a trusted manufacturer for your heating system, the Bell & Gossett PD37S BI delivers reliable performance with the convenience of easy maintenance.
🔗 Official Technical Resource
For complete installation instructions and warranty information, visit the Bell & Gossett Product Support page for the most accurate and up-to-date information.
