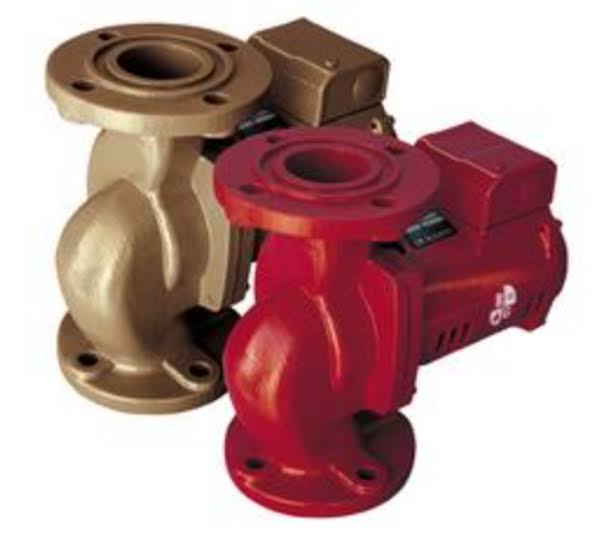

Bell & Gossett PL-130B/3″ Bronze Pump 1BL072LF | Ultimate Product Guide

The Bell & Gossett 1BL072LF, part of the PL-130B series, is a high-performance, all-bronze circulator pump engineered specifically for demanding residential and light commercial applications. This model is designed for both potable (domestic) water systems and hydronic heating, offering exceptional versatility and material safety. Its powerful 2/5 HP, 3250 RPM motor delivers robust flow and pressure, outperforming many competitors with a claimed 25% higher efficiency.

Built for longevity and zero maintenance, the pump features a permanently lubricated bearing system and a durable, dry-motor design. The all-bronze construction ensures superior corrosion resistance, while advanced engineering like the solid “Stiff-Shaft” and carbon/silicon carbide seal make the Bell & Gossett PL-130B a reliable, set-and-forget solution for critical water circulation tasks.

Detailed Technical Specifications

Key Engineering Features

• All-Bronze Construction: Certified for potable water applications and highly resistant to corrosion.

• Permanently Lubricated XL-11 Bearing System: Sealed for life, requiring zero maintenance.

• Solid “Stiff-Shaft” Design: Made from high-strength alloy steel to prevent cracking from thermal stress.

• Durable Seal System: Features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life.

• High-Efficiency Motor: Delivers 25% more efficiency than many comparable pumps, reducing operating costs.

• Double-Sided Stainless Steel Neck Ring: Optimizes hydraulic efficiency and reduces wear.

B&G PL-130B vs. Other Circulators: Comparison Table

This table highlights the advantages of this specific model for domestic water.

Frequently Asked Questions (FAQ)

Q1: Is this pump definitely safe for drinking water?
A: Yes, absolutely. The all-bronze construction is the key feature that makes this pump completely safe and certified for use in potable (drinking) water systems. It will not rust or contaminate the water supply.

Q2: What does “permanently lubricated” mean?
A: It means the motor bearings are sealed and lubricated at the factory with a sufficient amount of high-quality lubricant to last the entire operational life of the pump. No additional lubrication or maintenance is ever required.

Q3: Why a 3250 RPM motor instead of 1725 RPM?
A: A 3250 RPM motor operates at a higher speed, which allows a smaller pump (like this 2/5 HP model) to generate higher flow and pressure (head) than a similarly sized 1725 RPM pump could. This makes it ideal for applications requiring more forceful circulation or pressure boosting.

Q4: What are typical applications for this pump?
A: This pump is extremely versatile for its size:

• Domestic Water Pressure Boosting

• Potable Water Recirculation Lines

• Residential and Light Commercial Hydronic Heating Systems

• Water Transfer from Storage Tanks

• Solar Heating Loops

Q5: Are the 3″ flanges included?
A: The product name and description indicate this model (PL-130B/3″) includes the 3″ flanges, making it a complete package ready for installation. Always confirm with the supplier.

Q6: What is the advantage of the “Stiff-Shaft” design?
A: The solid, high-strength alloy steel shaft is far more resistant to bending and “whip” at high speeds compared to hollow or lesser-grade shafts. This prevents imbalance, reduces vibration, and eliminates a potential point of failure caused by thermal stress, greatly enhancing reliability.

Pros and Cons

Pros:

• Potable Water Safe: All-bronze construction is ideal for domestic water applications.

• High Efficiency: Engineered to be 25% more efficient than many competitors, saving on electricity costs.

• Zero Maintenance: Permanently lubricated bearings mean no scheduled maintenance is ever needed.

• Powerful Performance: The 2/5 HP, 3250 RPM motor delivers high flow and head for its frame size.

• Exceptional Durability: Features like the “Stiff-Shaft” and carbon/silicon carbide seal are designed for a long service life.

• Trusted Brand: Backed by the reliability and engineering of Bell & Gossett.

Cons:

• Higher Noise Level: The 3250 RPM operating speed is inherently louder than a slower 1725 RPM circulator.

• Potential for Higher Wear: Higher RPM can lead to increased wear on the impeller and seal over time compared to slower pumps, though this is mitigated by the premium materials.

• Specific Use Case: Its high-speed, high-output design may be overkill for very small, low-flow circulation loops where a smaller pump would suffice.

• Energy Comparison: While efficient for its class, a 3250 RPM pump will generally consume more energy than a correctly sized variable-speed ECM pump at part-load conditions.

Conclusion & Best Applications

The Bell & Gossett 1BL072LF PL-130B/3″ is a robust, high-output circulator that doesn’t compromise on material safety or longevity. It is the ideal choice for applications that demand both the corrosion resistance of bronze and the powerful performance of a high-speed motor.

You should choose this pump if:

• You need a powerful pump for domestic water pressure boosting or recirculation.

• Material compatibility with drinking water is a mandatory requirement.

• You want a maintenance-free product from a top-tier manufacturer.

• Your application requires higher flow and pressure than a standard 1725 RPM circulator can provide.

For homeowners and professionals who need reliable, powerful, and safe water circulation, the B&G PL-130B series represents a premium and efficient solution.

Disclaimer: Professional installation is recommended to ensure proper wiring, support, and alignment. Always confirm that the pump’s performance curve (GPM & Head) matches your system’s requirements.
