Description
Product Overview

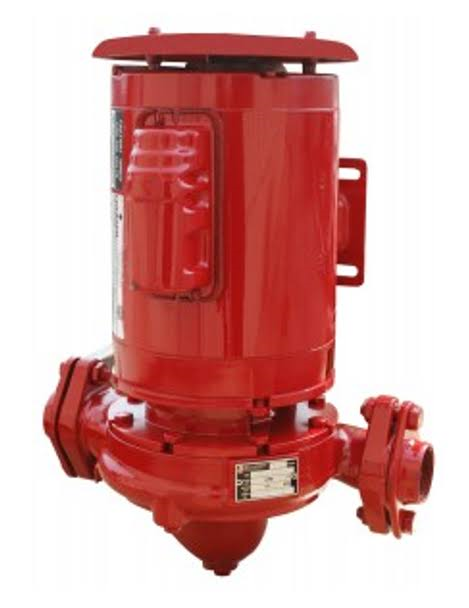

For the most demanding industrial and large-scale commercial hydronic applications, the Bell & Gossett 90-14T (179021LF) stands as a pillar of strength and reliability. This heavy-duty 5 HP inline circulator is engineered to move massive volumes of water or glycol solutions against significant head pressure in central plants, industrial processes, and large campus-style hydronic systems. Its robust construction is built to deliver decades of continuous, trouble-free operation where system failure is not an option.
The pump features a legendary cast iron construction with a bronze impeller, designed to withstand the most challenging operating conditions. The separate motor and pump design, connected by a durable coupling and guard, allows for straightforward maintenance and potential motor replacement without disturbing the hydronic piping. With three manual speed settings, this pump provides the flexibility to fine-tune system performance for optimal efficiency and flow characteristics. For engineers designing these critical systems, our blog on [Specifying Pumps for Industrial Hydronic Applications] provides essential guidance.
As part of the industry-standard Bell & Gossett Series 90 line, this pump carries a legacy of proven performance that mechanical engineers and facility managers have trusted for generations. It represents not just a component, but a long-term investment in the operational integrity of your most critical hydronic infrastructure. Learn about its role in maximizing efficiency in our article [Optimizing Large-Scale Hydronic Systems for Peak Performance].
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bell & Gossett 90-14T (179021LF) |
| Motor Power | 5 HP (3.7 kW) |
| Connection Size | 3″ Flange x 3″ Flange |
| Impeller Material | Bronze |
| Housing Material | Cast Iron |
| Max Head | 95 ft (29 m) |
| Max Flow | 550 US gpm (2,082 L/min) |
| Speed Settings | 3-Speed (Manual) |
| Max Operating Pressure | 175 psi (12.1 bar) |
| Max Fluid Temperature | 250°F (121°C) |
| Voltage | 460V, 3-Phase |
| Shaft Seal | Mechanical Seal |
Comparison Table: B&G 90-14T vs. Alternative Heavy-Duty Pumps
| Feature | B&G 90-14T 5 HP | Competitor A (Base-Mounted) | Competitor B (Vertical Inline) |
|---|---|---|---|
| Design & Serviceability | Inline, Separate Motor | Base-Mounted, Coupled | Vertical Inline, Integral Motor |
| Maintenance Accessibility | Excellent (Easy Motor Access) | Good | Moderate |
| Footprint | Compact Inline | Larger Footprint | Vertical Space Required |
| Motor Replacement | Simple – No Pipe Disassembly | Requires Coupling Alignment | Complex – Often Requires Full Removal |
| System Compatibility | Industry Standard Flanges | May Require Adaptors | Standard Flanges |
| Initial Cost | Competitive | Lower | Higher |
Frequently Asked Questions (FAQs)
Q1: What type of applications require a 5 HP circulator like the 90-14T?
This pump is designed for large-scale applications including central plant chilled and hot water circulation, district energy systems, large industrial process cooling, high-rise building primary loops, and campus-style hydronic systems where both high flow and high head pressure are required.
Q2: How does the coupled design differ from wet-rotor circulators?
Unlike wet-rotor designs where the motor is cooled by system fluid, the 90-14T uses a standard NEMA-frame motor with a mechanical coupling. This design allows for easier motor replacement and typically provides longer service life in clean system environments, though it requires periodic lubrication. For a detailed comparison, see our guide [Coupled vs. Wet-Rotor Circulators: Selecting the Right Technology].
Q3: What maintenance is required for this pump?
Routine maintenance includes motor bearing lubrication per manufacturer schedules, periodic inspection of the coupling alignment and condition, and monitoring of the mechanical seal for leakage. The separate motor design makes these tasks more accessible than with many integral designs.
Q4: Can this pump be used with variable frequency drives (VFDs)?
Yes, when paired with a compatible 3-phase motor (typically TEFC design), the 90-14T can be operated with a VFD for energy savings and precise flow control. For VFD-driven applications, consider our [Bell & Gossett VFD-Ready Pump Packages] for optimized system integration.
Q5: Is this pump suitable for high-temperature applications?
With its cast iron construction and high-temperature mechanical seal options, the 90-14T can handle fluid temperatures up to 250°F (121°C), making it suitable for high-temperature hot water systems and industrial process applications.
Pros and Cons
| Pros | Cons |
|---|---|
| Exceptional Durability with industrial-grade construction | Requires Regular Maintenance (lubrication, alignment checks) |
| Easy Motor Serviceability without piping disassembly | Larger Footprint than wet-rotor designs of similar capacity |
| High-Temperature Capability up to 250°F | Higher Noise Levels than modern wet-rotor circulators |
| Proven Track Record with decades of field performance | Initial Cost Higher than smaller commercial circulators |
| Flexible Motor Options with standard NEMA frames | Coupling Alignment critical for proper operation and longevity |
Conclusion & Ideal Use Cases
The Bell & Gossett 90-14T 5 HP inline circulator represents the industrial workhorse standard for large-scale hydronic systems where reliability, serviceability, and long-term performance are paramount. Its traditional coupled design may require more maintenance than modern alternatives, but offers unparalleled service accessibility and proven durability in demanding environments.
This pump is ideally specified for:
-
Central Utility Plants: Primary chilled and hot water circulation
-
Industrial Processes: Cooling towers, process heat transfer
-
Large Campus Systems: University, hospital, or corporate campus loops
-
High-Rise Buildings: Primary system circulation and pressure boosting
For smaller commercial applications, the [Bell & Gossett e90 Series Circulator] offers a maintenance-free alternative, while for the most severe duty applications, the [Bell & Gossett Series 1510 Base-Mounted Pumps] provide even greater durability. The 90-14T occupies a critical performance niche where traditional reliability and easy service access outweigh the benefits of modern maintenance-free designs. For comprehensive engineering data and system design support, consult the Hydraulic Institute’s standards for rotodynamic pumps (External Link).
Contact our industrial pump specialists today for application engineering, performance curve analysis, and specification support for your large-scale hydronic system requirements.
