Description
Overview

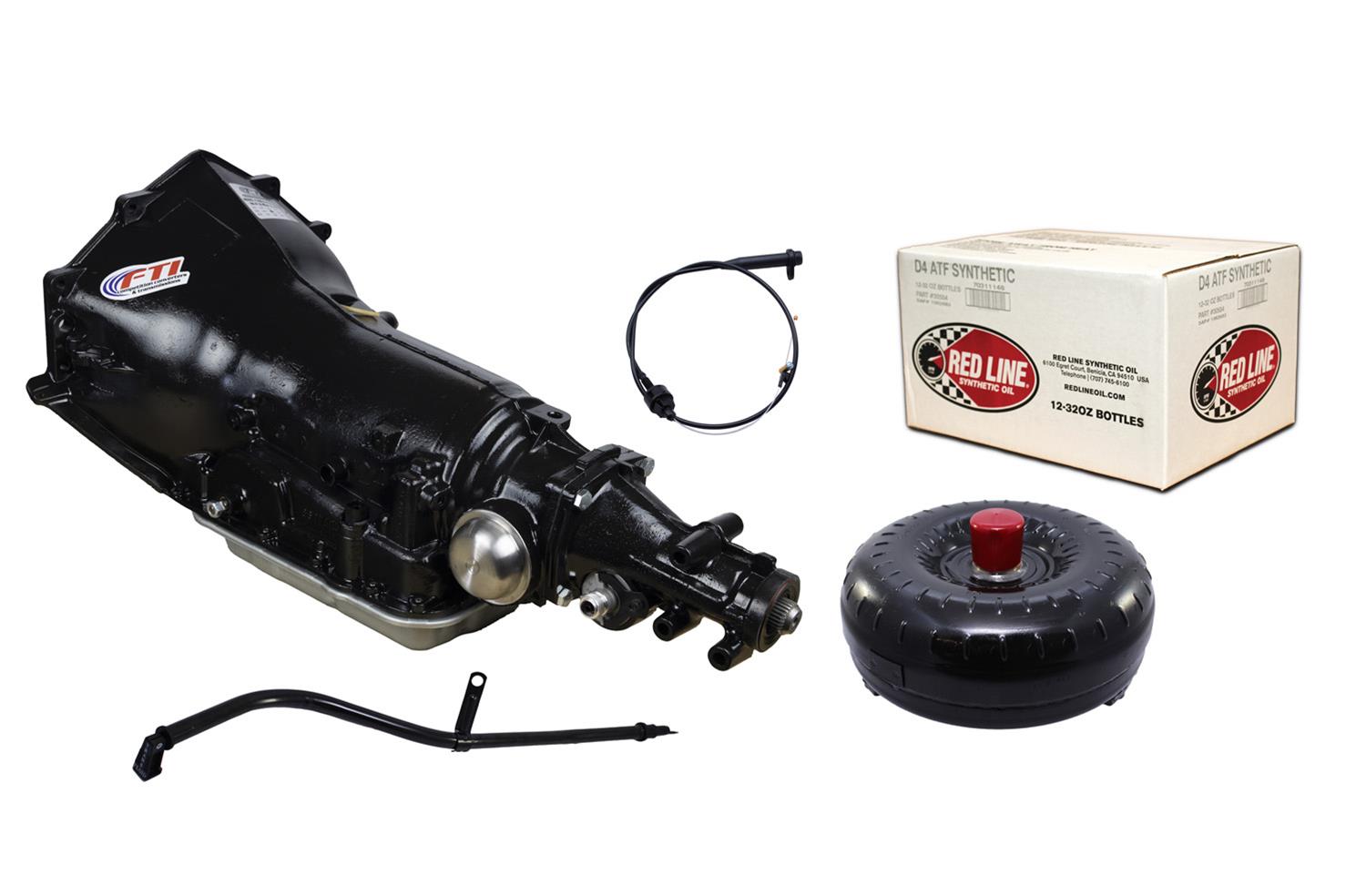

FTI Performance 700R4 Level 2 Transmission Packages FTK7R4-2E
Brand: FTI Performance
Manufacturer’s Part Number: FTK7R4-2E
Part Type: Automatic Transmissions
Product Line: FTI Performance 700R4 Level 2 Transmission Packages
Summit Racing Part Number: FTI-FTK7R4-2E
UPC: 887753816207
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Transmission Advertised Horsepower Rating: 450
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Advertised Flash Stall Rating: 2,400 rpm
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Natural
Tailshaft Length (in.): 7.500 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Hardened steel
First Gear Ratio (Automatic Transmissions): 3.06
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: Yes
Transmission Fluid Quantity Included: 12 qt.
Dipstick Included: Yes
Remanufactured: Yes
Quantity: Sold as a kit
Notes: Designed for use with Edelbrock carburetors. Includes TV cable, filler tube, and TV correction for carbureted intake manifolds.
FTI Performance 700R4 Level 2 Transmission Packages
Overview
The FTI Performance 700R4 Level 2 Transmission Package FTK7R4-2E is designed for street rodders and cruisers seeking a balance of performance, fuel efficiency, and reliability. Built to handle up to 450 horsepower, this complete package simplifies installation while delivering dependable results. As a result, it is an excellent choice for mild performance builds and daily-driven vehicles. For similar upgrades, browse our internal selection of automatic transmission packages.
Performance & Features
In addition, this transmission package includes a 2,400 rpm stall torque converter, ensuring improved launch performance and drivability. Internally, it features a 9-clutch high-energy 3-4 pack, performance band, and upgraded servo for enhanced durability. Because of this, the transmission maintains consistent performance under moderate load conditions. For more technical insights, refer to organizations like SEMA.
Engineering & Reliability
Moreover, the hardened sun gear shell, pump rings, and oversized boost valve contribute to long-term reliability and efficient operation. The inclusion of a throttle TV cable, external lockup connector, and filler tube further enhances ease of installation. For this reason, this package offers both convenience and dependable engineering.
Applications & Benefits
Finally, this 700R4 Level 2 package is ideal for Chevy-based applications using carbureted setups, particularly with Edelbrock systems. Its well-balanced design ensures smooth shifting, improved fuel economy, and long service life. Ultimately, it delivers a practical and performance-oriented solution for street enthusiasts seeking reliability and ease of use.
