Description

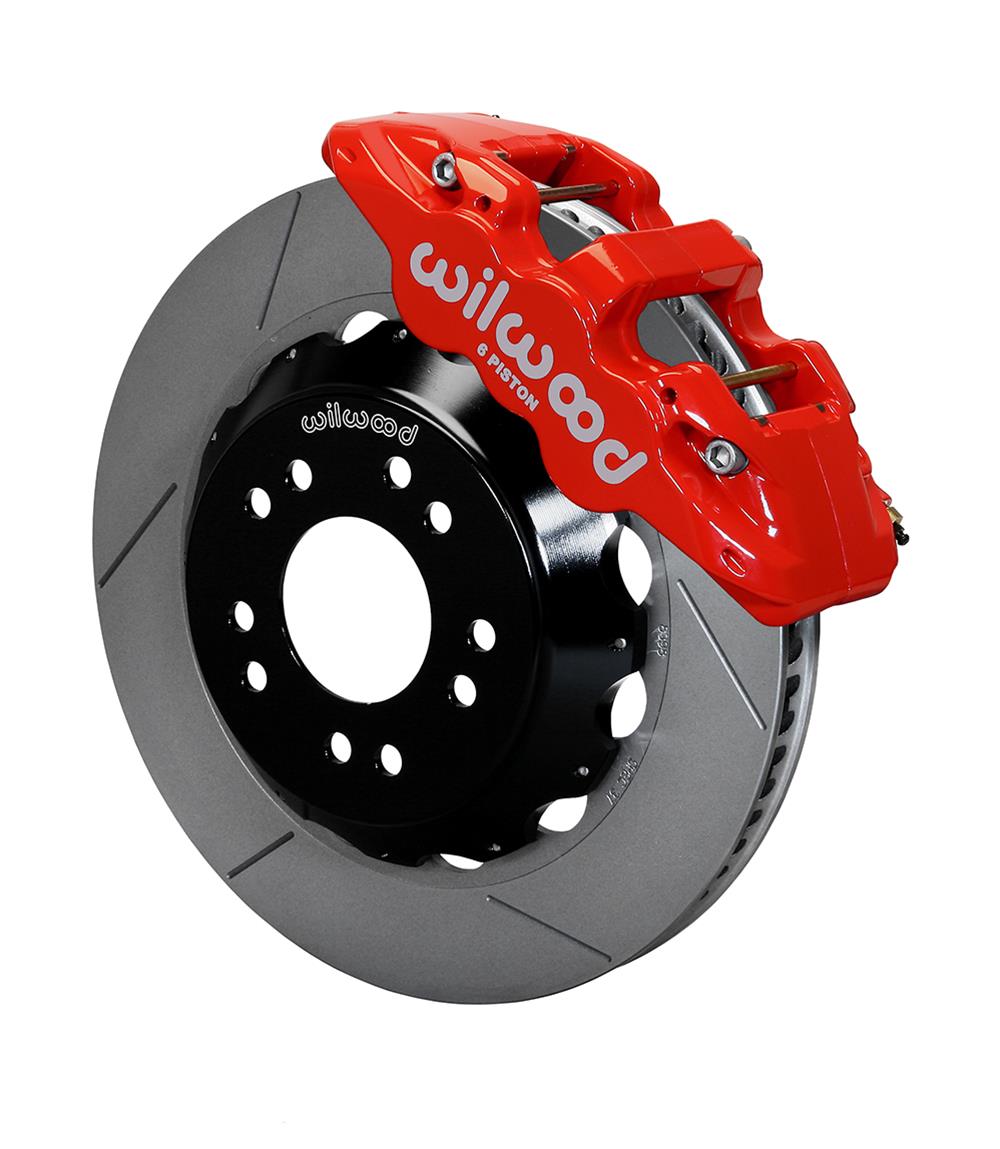

The Wilwood AERO6 Big Brake Front Brake Kit, part number 140-15305-R (Summit Racing part number WIL-140-15305-R; UPC 889545077506), is a front disc brake kit with red, six-piston forged billet aluminum calipers. It is intended for vehicle-specific applications; confirm the kit is designed for your vehicle before ordering.

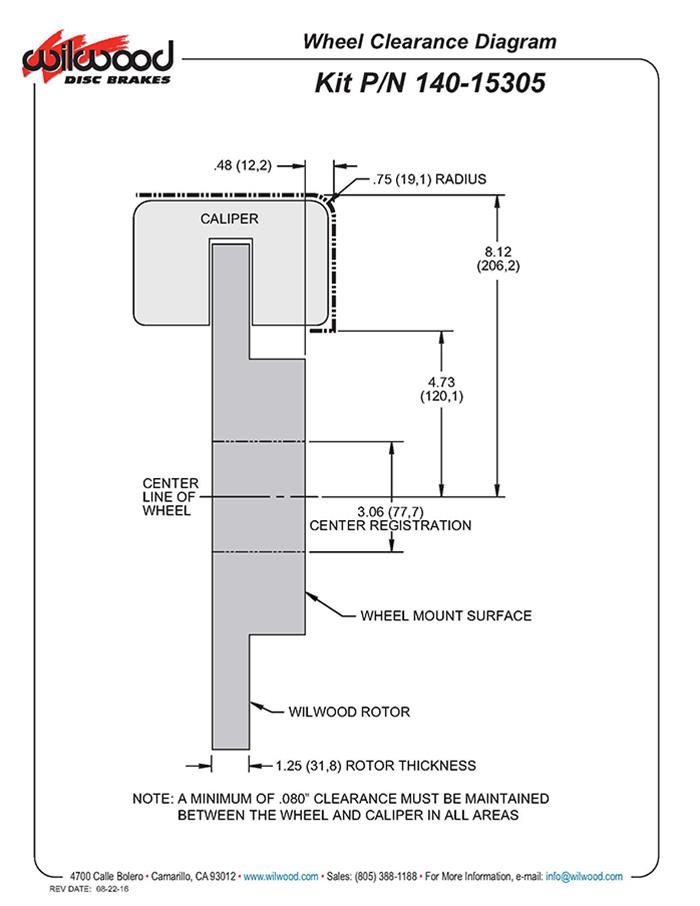

The kit includes 14.00-inch (355.60 mm) vented front rotors with a slotted surface. Rotors are 1.25 inches thick and have a dual bolt pattern: 5 x 4.75-inch / 5 x 5.00-inch, or 5 x 120.65 mm / 5 x 127.00 mm. The calipers have a 0.410-inch offset.

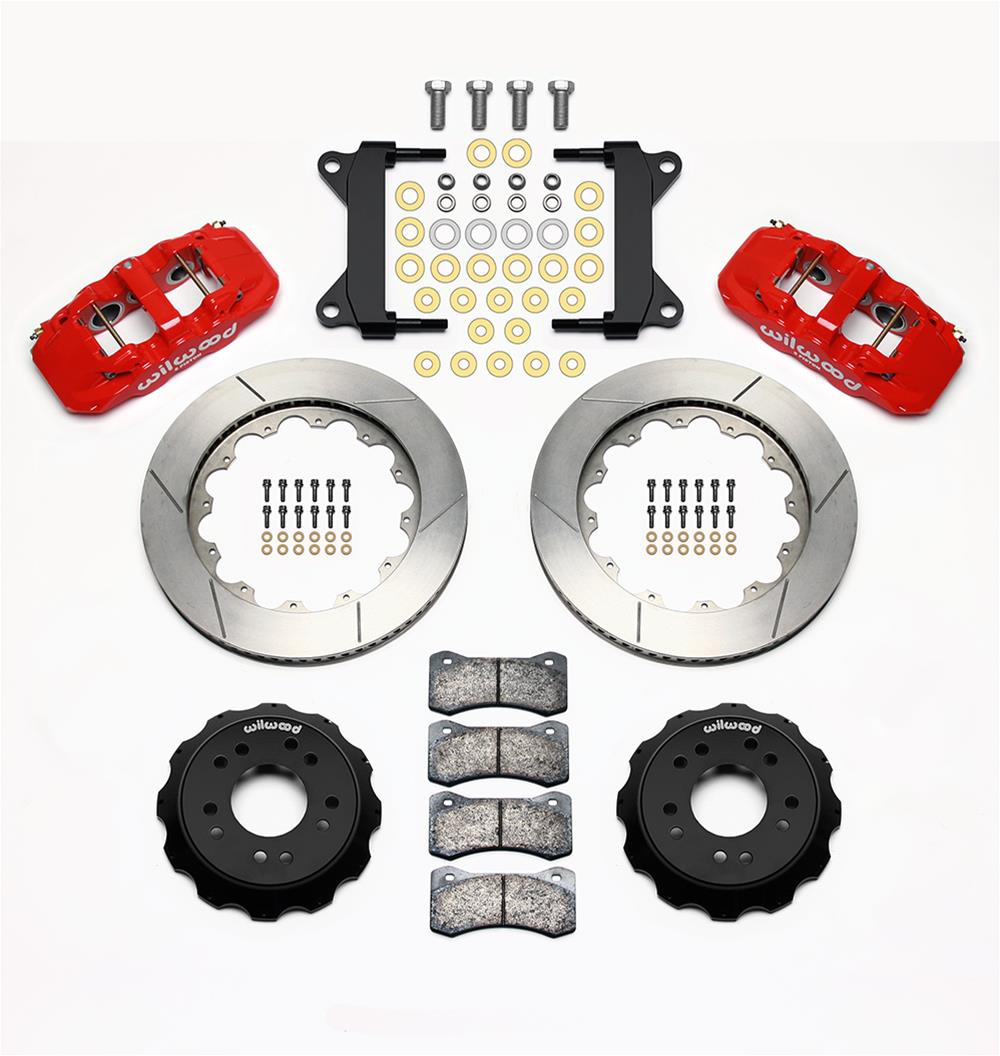

- Includes front calipers, front rotors and BP-20 brake pads
- Minimum recommended wheel diameter: 18 inches
- Uses a Wilwood Modular drop spindle; front spindles are not included
- No rear rotors or rear calipers included
- No parking brake provision
Master cylinder, brake booster and brake hoses are not included. This is a new, non-remanufactured kit, sold as one kit. Check the vehicle application and required spindle configuration before purchase; the source does not specify a particular vehicle fitment.
