Description
The Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kit (manufacturer part number 140-15842-D; Summit Racing part number WIL-140-15842-D) is designed for popular musclecar rear-axle applications that need a parking brake assembly with a low-profile disc brake setup. It is a rear kit and includes no front brake components.

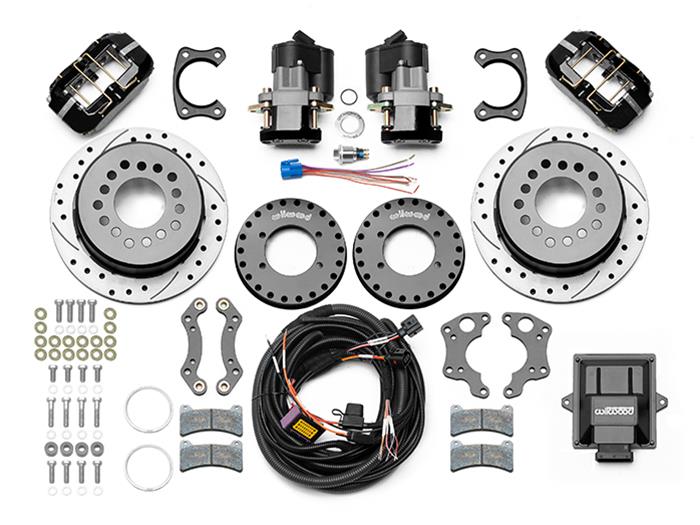

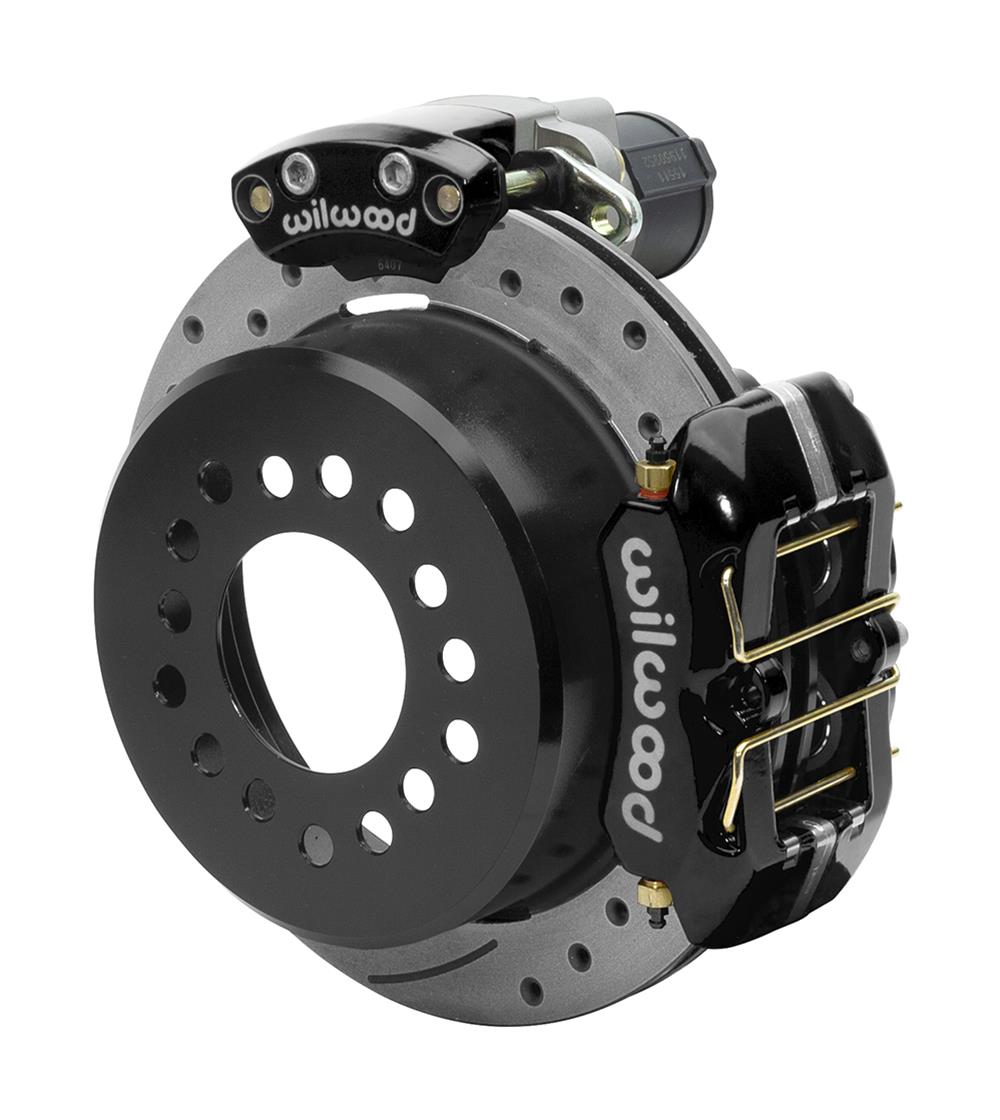

The kit includes forged billet aluminum, black four-piston DynaPro low-profile rear calipers; BP-10 brake pads; and 11.00-inch (279.40 mm) one-piece hat-and-rotor assemblies. The vented rear rotors are 0.81 inch thick and have a cross-drilled and slotted surface. A hidden internal shoe system provides the parking-brake provision; the listed parking-brake style is electric caliper.
- Rotor bolt patterns: 5 x 4.50, 5 x 4.75, or 5 x 5.00 inches (5 x 114.30, 5 x 120.65, or 5 x 127.00 mm)
- Axle housing flange: Big Ford New Style/Torino, 3.562 x 2.00 inches
- Offset: 2.500 inches
- Minimum recommended wheel diameter: 15 inches

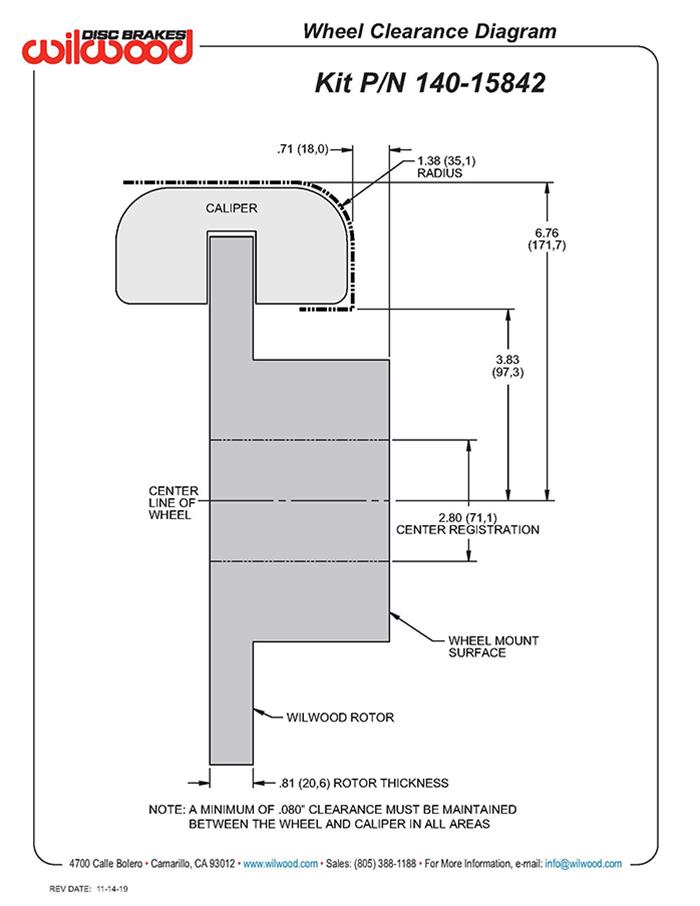

The kit is sold as a kit. It does not include front rotors, front calipers, front spindles, a master cylinder, a brake booster, or brake hoses. The source lists the kit as not remanufactured. Some 14-inch wheels may fit, but check the wheel-clearance diagram to confirm clearance before selecting wheels.
