Description

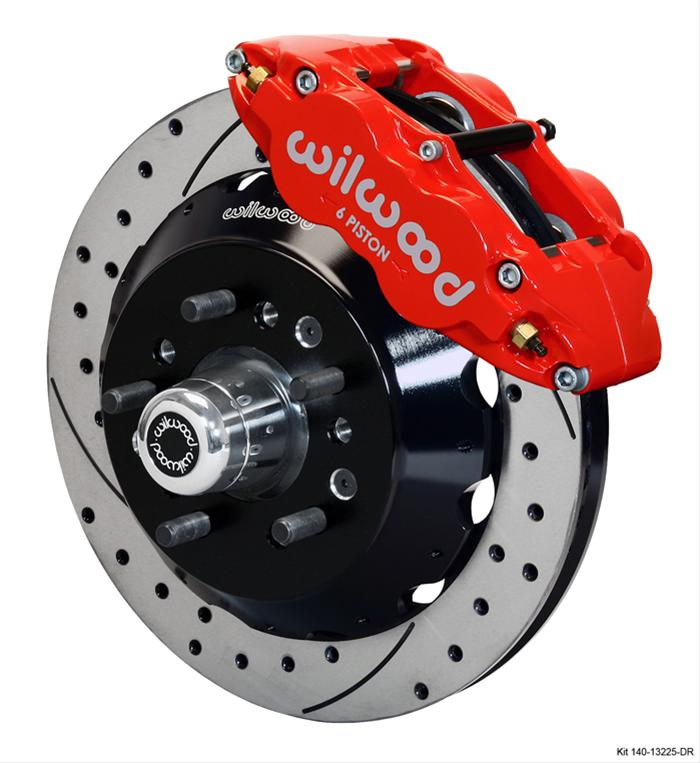

Upgrade the front brakes on a vehicle equipped with a TCI Engineering independent front suspension system with Wilwood Forged Narrow Superlite 6R Big Brake Kit 140-13225-DR. This application-specific kit includes red, forged-billet-aluminum six-piston calipers and vented front rotors with a cross-drilled and slotted surface.
- Rotor size: 14.00 in. (355.60 mm) diameter x 1.10 in. thick
- Rotor bolt patterns: Dual 5 x 4.25 in. / 5 x 4.50 in. (5 x 108.00 mm / 5 x 114.30 mm)
- Pads: Included; BP-10 friction material

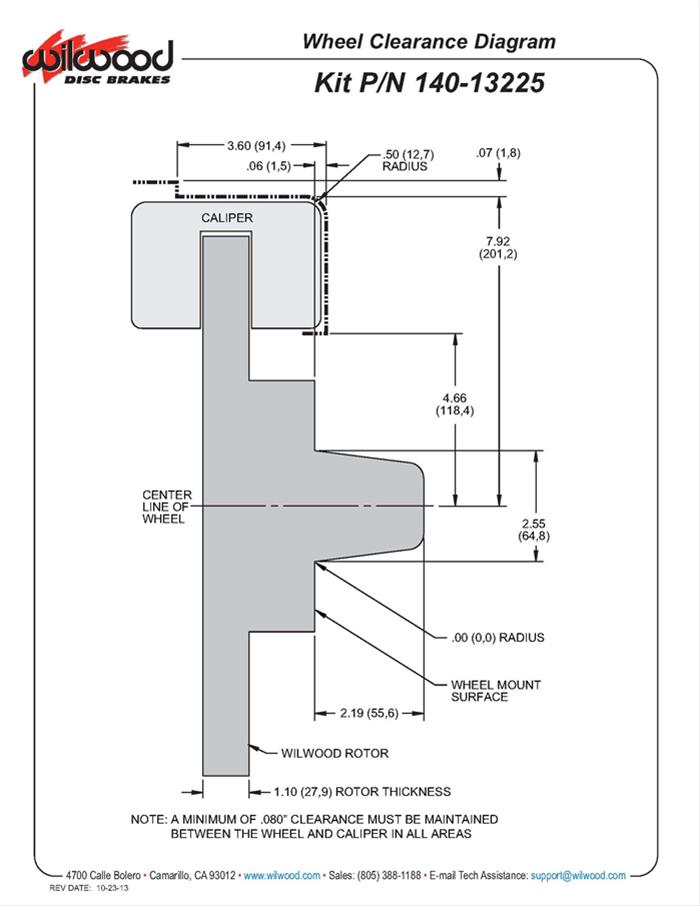

- Wheel clearance: Minimum recommended wheel diameter is 18 in.
- Offset: 0.340 in.
The kit is designed for use with TCI Engineering independent front suspension systems only. It includes 1/2 in.-20 wheel studs. The manufacturer describes the brake system as compatible with OE master-cylinder output and ABS functions where used.
This is a front brake kit, sold as one kit. Rear rotors and calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. There is no parking-brake provision. This kit is not remanufactured.
Part numbers: Wilwood 140-13225-DR; Summit Racing WIL-140-13225-DR. UPC: 889545019506.
