Description

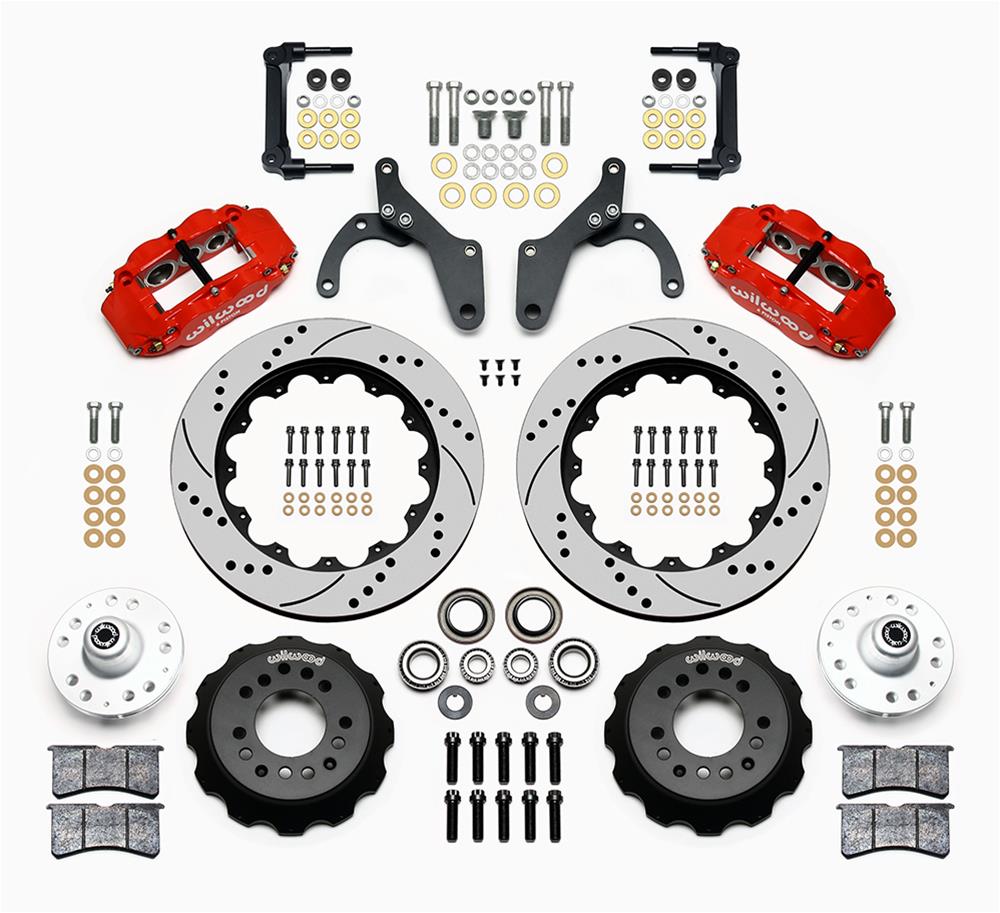

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-12465-DR; Summit Racing part number WIL-140-12465DR) upgrades the front brakes with forged, narrow-body six-piston calipers and 14-inch rotors. It is application-specific; confirm the kit is suitable for your vehicle before ordering.

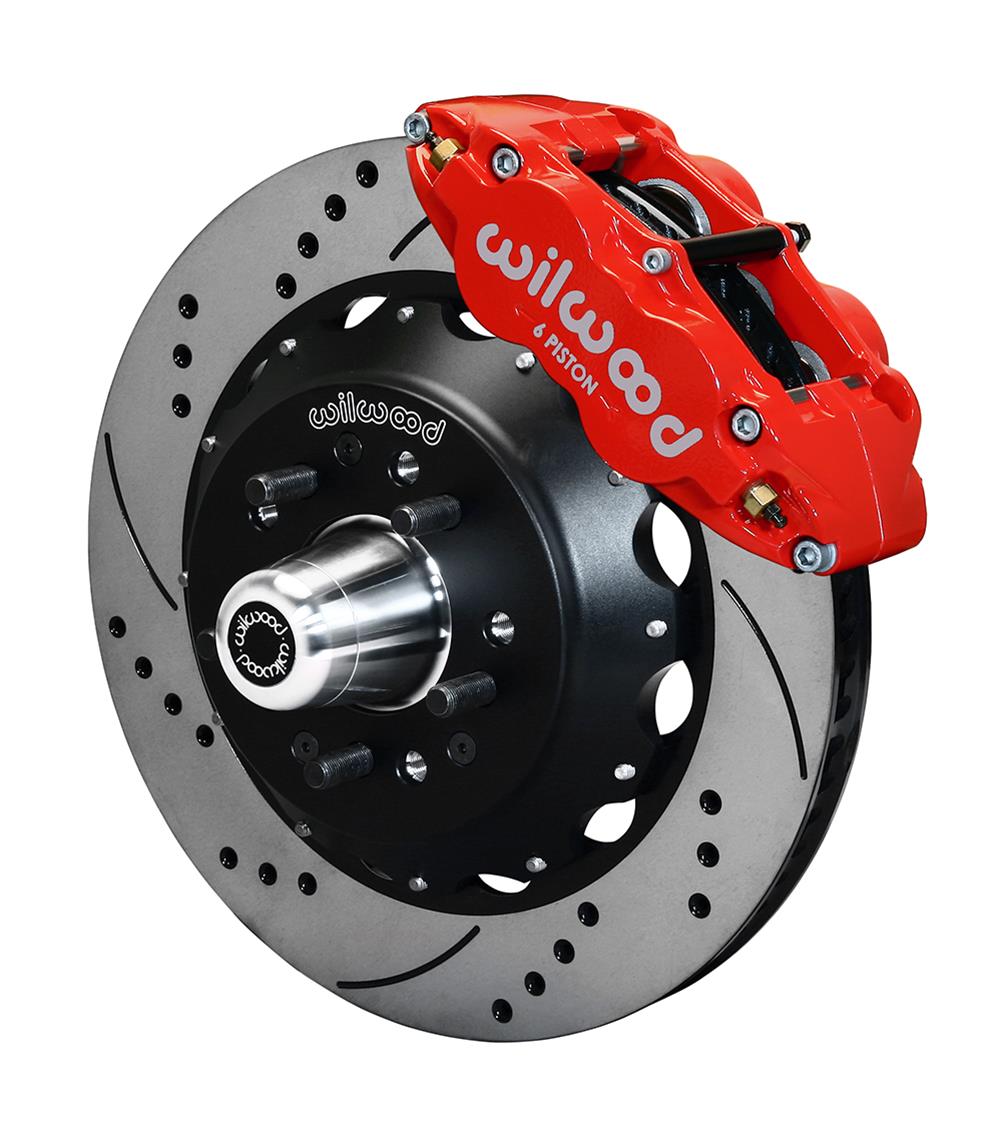

The forged billet aluminum calipers have a red finish and radial-mount design. Included vented rotors have a cross-drilled and slotted surface, black Electro Coat finish, and dual bolt patterns for 5 x 4.50-inch or 5 x 4.75-inch applications. The kit is designed for use with factory drum spindles and includes 1/2-inch-20 wheel studs.
- Position: Front
- Rotor diameter: 14.00 in. (355.60 mm); thickness: 1.10 in.
- Caliper pistons: Six per caliper; caliper material: forged billet aluminum
- Brake pads included: BP-20 friction material
- Minimum recommended wheel diameter: 18 in.; offset: 0.210 in.
- Sold as a kit; UPC: 889545016642
The kit is described as compatible with OE master-cylinder output and ABS functions where used. Rear rotors and calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. There is no parking-brake provision. The kit is not remanufactured.
