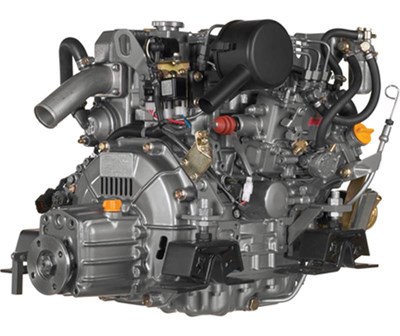

Yanmar 3YM30 Marine Diesel Engine: Efficient 29hp Performance
Modern, Quiet, and Fuel-Efficient Power for Mid-Size Sailing Yachts
Introduction
The Yanmar 3YM30 marine diesel engine represents the pinnacle of modern compact diesel engineering, offering sailors a perfect blend of power, efficiency, and smooth operation. At Wave Inboard Motors, we are certified Yanmar installers, and our mechanics have extensive hands-on experience installing and servicing the 3YM series. This 29hp marine diesel engine is the heart of countless mid-size sailboats and powerboats, trusted for its advanced design and unwavering reliability.
Engineered as the ideal sailing yacht repower solution for vessels from 32 to 38 feet, the 3YM30 delivers ample power for propulsion and high-output alternators to meet modern electrical demands. Its common-rail injection system (on later AE models) ensures exceptional fuel efficiency and cleaner emissions, making it a smarter, more environmentally conscious choice than older generations. When you choose a new or professionally remanufactured Yanmar 3YM30 for sale, you’re investing in decades of advanced marine technology.
This page will detail its superior technical specifications, show how it outperforms older models, and help you understand why it is the definitive choice for boat owners seeking a modern marine diesel solution.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | Yanmar 3YM30 |
| Engine Type | 3-Cylinder, 4-stroke, water-cooled diesel |
| Displacement | 1.642 L (1642 cc) |
| Max Output | 29 HP (21.6 kW) @ 3600 RPM |
| Bore x Stroke | 75 mm x 84.2 mm |
| Compression Ratio | 18.5:1 |
| Cooling System | Heat Exchanger (Closed-Cooling) |
| Starting System | 12V Electric Start |
| Alternator Output | 12V – 55A (115A optional) |
| Dry Weight | 143 kg (315 lbs) |
| Dimensions (LxWxH) | Approx. 755mm x 592mm x 592mm |
| Gear Ratio | 2.62:1 (Standard on KM2A Gear) |
Competitor Comparison Table
| Feature | Yanmar 3YM30 (Modern Diesel) | Universal M-25XPB (Older Diesel) | Volvo Penta D1-30 (Contemporary) |
|---|---|---|---|
| Engine Type | 3-Cylinder, Modern Electronic | 3-Cylinder, Mechanical | 3-Cylinder, Electronic |
| Power (HP) | 29 HP @ 3600 RPM | 23 HP @ 3000 RPM | 27 HP @ 3500 RPM |
| Fuel Efficiency | Excellent (Advanced Injection) | Good | Very Good |
| Weight | 315 lbs (143 kg) | 330 lbs (150 kg) | 309 lbs (140 kg) |
| Reliability | Exceptional (Proven YM Series) | Good (Older Design) | Good (Electronic part complexity) |
| Parts Availability | Excellent (Current Production, Global Support) | Fair (Some parts becoming scarce) | Good (Strong dealer network) |
Verdict: The Yanmar 3YM30 stands out as the most powerful and refined option in its class. It delivers more horsepower and more advanced features than the older Universal engine and outperforms its direct contemporary competitor, the Volvo Penta D1-30, in both power output and overall parts and service network strength. Its modern design prioritizes smooth operation, efficiency, and ease of servicing.
Replacement Options Table
| Consideration | Rebuild Older Engine (e.g., Universal M-25) | Install Remanufactured 3YM30 | Install Brand New 3YM30 |
|---|---|---|---|
| Condition | Unknown longevity, outdated technology | Like-new, zero hours, updated components | Perfect, factory-fresh with latest updates |
| Warranty | None (on rebuild itself) | Full 1-Year Parts & Labor Warranty | Full Yanmar Factory Warranty (2-3 Years) |
| Power | Original (e.g., 23HP) | Full 29HP | Full 29HP |
| Noise/Vibration | High (older 3-cyl design) | Low (Modern, balanced design) | Lowest |
| Total Project Value | Lowest (Investing in old tech) | High (Best value for performance) | Highest (Peak performance & warranty) |
Expert Recommendation: For most owners looking to repower, a brand new Yanmar 3YM30 is the ultimate investment if the budget allows, providing the latest technology and the strongest warranty. However, a professionally remanufactured 3YM30 offers phenomenal value, delivering nearly identical performance and a robust installer warranty at a significantly lower cost. We rarely recommend investing heavily in rebuilding an older, less efficient engine model when modern replacements offer such dramatic improvements in performance and reliability.
Pros and Cons Table
| Pros | Cons |
|---|---|
| Modern, Fuel-Efficient Design | Higher initial cost than older models |
| Smooth & Quiet 3-Cylinder Operation | Requires a knowledgeable Yanmar technician for complex issues |
| Ample Power & High-Output Alternator Options | Modern electronics can be sensitive to poor installation (corrosion, voltage spikes) |
| Excellent Parts & Service Support Worldwide | |
| Heat Exchanger Cooling for longevity |
