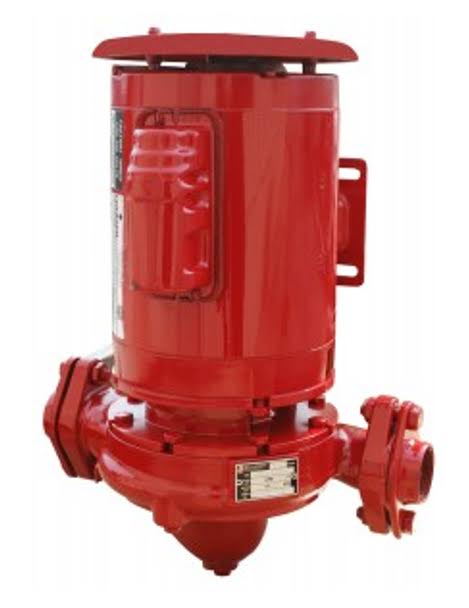

Bell & Gossett 90-36S 3/4HP In-Line Circulator Pump | Ultimate Product Guide

The Bell & Gossett 179048LF, part of the Series 90-36S, is a versatile and reliable close-coupled, in-line circulator pump designed for residential and light commercial hydronic heating and cooling systems. This model features a bronze-fitted construction and is powered by a dependable 3/4 HP motor, providing robust performance for a wide range of applications.

Engineered for flexibility, the Series 90 pump can be mounted both vertically and horizontally, making it an ideal solution for space-constrained installations. Its grease-lubricated motor ensures long-lasting, maintenance-free operation, while the close-coupled design guarantees perfect alignment for improved reliability. The Bell & Gossett 90-36S is a trusted choice for HVAC professionals seeking a durable and efficient pump for closed-loop systems.

Detailed Technical Specifications

Key Features & Benefits

• Bronze-Fitted Construction: Key components like the impeller are made of bronze for enhanced corrosion resistance in water applications.

• Dual Mounting Flexibility: Can be installed vertically or horizontally to fit unique space constraints and piping layouts.

• Grease-Lubricated Motor: Sealed and lubricated for life, requiring zero maintenance.

• Close-Coupled Design: The pump and motor are assembled as a single unit, ensuring perfect alignment and reducing vibration.

• Space-Saving In-Line Design: Installs directly into the piping, requiring no additional floor space or mounting pads.

• Proven Reliability: Part of the legendary Bell & Gossett Series 90 line, known for its durability and performance.

B&G Series 90 vs. Other Circulators: Comparison Table

This table highlights where the Series 90 fits in the market.

Frequently Asked Questions (FAQ)

Q1: Is this pump suitable for potable water?
A: While the “bronze-fitted” construction offers better corrosion resistance than cast iron, the pump body is typically iron. Therefore, it is not recommended for potable (drinking) water systems. It is designed for closed-loop hydronic heating and cooling applications where the water is treated and not for consumption.

Q2: What does “grease-lubricated” mean?
A: It means the motor bearings are sealed and packed with high-quality grease at the factory. This grease is sufficient to last the entire operational life of the pump, meaning no additional lubrication or maintenance is ever required.

Q3: What is the advantage of vertical/horizontal mounting?
A: This flexibility is a significant installation benefit. It allows the pump to be installed in the most efficient orientation for your specific piping layout, whether the pipes are running horizontally overhead or vertically up a wall. This can save space and reduce the need for additional piping elbows.

Q4: What are typical applications for this pump?
A: This pump is designed for circulating water in:

• Residential and Commercial Boiler Systems

• Hydronic (Radiant) Heating Systems

• Chilled Water Cooling Systems

• Solar Heating Loops

• General Closed-Loop Circulation

Q5: How does the close-coupled design help?
A: In a close-coupled pump, the motor mounts directly to the pump body, sharing a common shaft. This eliminates the need for a separate coupling and guard and ensures that the motor and pump are always in perfect alignment, which reduces wear and vibration.

Q6: What is the difference between this and a Series 100 pump?
A: The Series 90 is generally a lighter-duty, more compact line with a lower horsepower range (up to 2 HP) and often bronze-fitted construction. The Series 100 is a heavier-duty, cast iron pump often used in larger commercial applications with a higher HP range.

Pros and Cons

Pros:

• Installation Flexibility: Vertical or horizontal mounting allows for easy integration into any piping system.

• Low Maintenance: Grease-lubricated, sealed bearings require no scheduled service.

• Corrosion Resistance: Bronze-fitted construction provides longer life in water applications than all-iron pumps.

• Space-Saving Design: The in-line configuration mounts directly in the pipe, requiring no floor space.

• Reliable Performance: A simple, time-tested design from a trusted brand (Bell & Gossett).

• Cost-Effective: Provides good value and reliability for its price point.

Cons:

• Not for Potable Water: Not certified for drinking water applications.

• Fixed Speed: Operates at a constant speed, unlike variable-speed pumps that can save energy by adjusting to system demand.

• Standard Efficiency: Lacks the energy-saving technology of modern ECM circulators.

• Limited to Clean Water: Designed for closed-loop systems with clean water, not for abrasive or solid-bearing fluids.

Conclusion & Best Applications

The Bell & Gossett 90-36S (179048LF) is a versatile and dependable workhorse for hydronic systems. Its combination of mounting flexibility, maintenance-free operation, and proven durability makes it a go-to choice for HVAC professionals for a wide range of heating and cooling applications.

You should choose this pump if:

• You need a reliable circulator for a residential or light commercial boiler system.

• Installation flexibility is important for your specific piping layout.

• You want a maintenance-free pump from a reputable manufacturer.

• The application is a closed-loop system with non-potable water.

For a straightforward, no-fuss solution for hydronic circulation, the Bell & Gossett Series 90 continues to be a trusted and effective choice.

Disclaimer: This pump is designed for closed-loop hydronic systems only. Professional installation is recommended to ensure proper wiring, piping support, and system operation.
