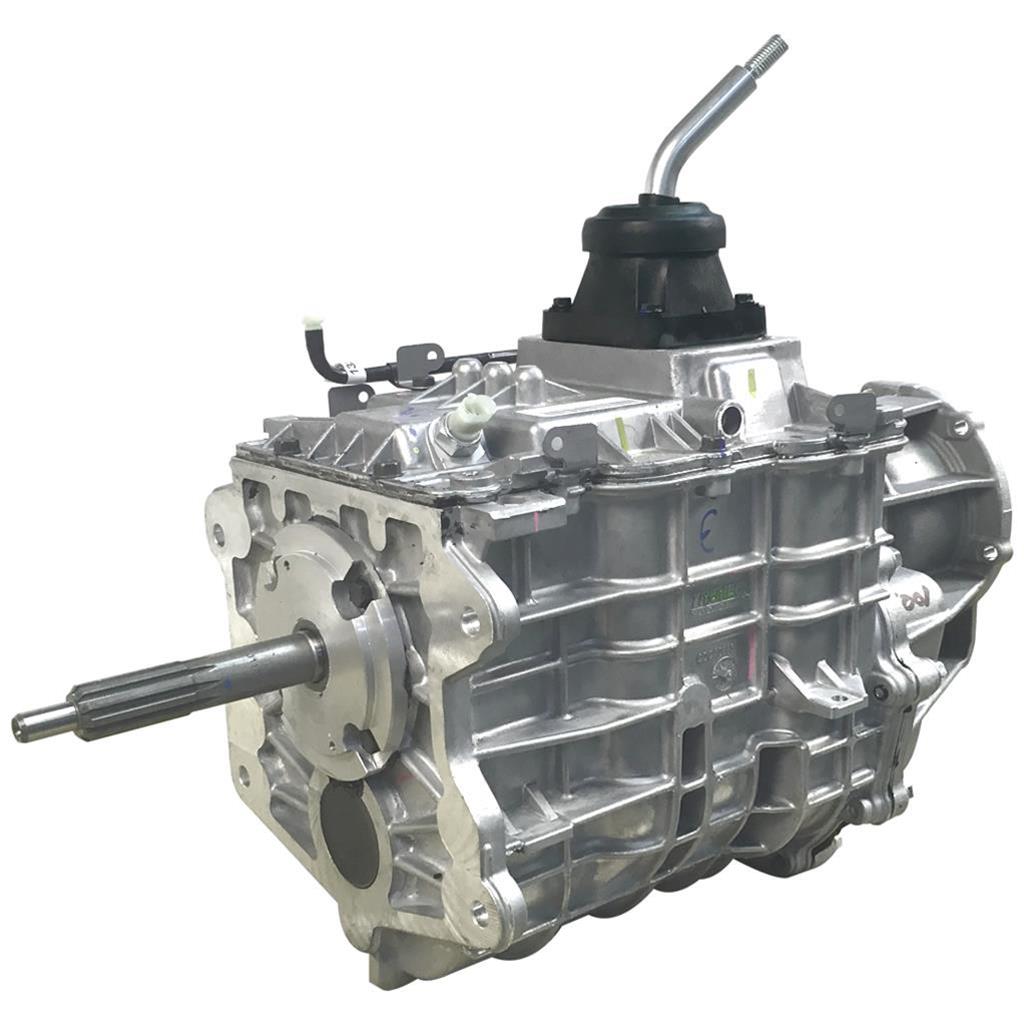

Tremec TR-4050 5-Speed Manual Transmission | Ultimate Product Guide

The Tremec TR-4050 (Part # TDET17341) is a heavy-duty, fully synchronized 5-speed manual transmission engineered as a direct, high-performance replacement for the legendary NV4500. Built for demanding 4WD applications, this transmission boasts an impressive 600 lb-ft torque capacity and features an aggressive 6.16:1 “granny” low gear for incredible crawling power, paired with a fuel-efficient 0.76:1 overdrive for relaxed highway cruising.

Housed in a rigid yet lightweight die-cast aluminum alloy case, the TR-4050 utilizes advanced engineering like helical-cut constant mesh gears, needle bearings, and modern synchronizer technology to deliver smoother shifts, reduced effort, and exceptional durability. Whether you’re upgrading a worn-out NV4500 or building a powerful off-road, tow rig, or restomod truck, the Tremec TR-4050 delivers legendary strength with modern refinement.

Detailed Technical Specifications

Key Features & Benefits

• Direct NV4500 Replacement: Bolts directly into applications originally equipped with an NV4500 transmission, minimizing conversion hassle.

• “Granny” Low 1st Gear: The ultra-low 6.16:1 ratio provides massive torque multiplication for slow crawling, rock climbing, or starting heavy loads.

• Fuel-Efficient Overdrive: The 0.76:1 5th gear lowers engine RPM at highway speeds, saving fuel and reducing engine wear.

• Fully Synchronized: All forward gears are synchronized for smooth, easy shifting without grinding.

• PTO Provision: A standard 6-bolt PTO (Power Take-Off) cover allows for running auxiliary equipment like hydraulic pumps.

• Advanced Synchronizers: Promotes smoother shifting and reduced shift effort compared to older designs.

• High-Strength Gearing: Helical-cut, constant mesh gears provide maximum strength and quieter operation.

Tremec TR-4050 vs. NV4500: Comparison Table

This table highlights the key advantages of this modern replacement.

Frequently Asked Questions (FAQ)

Q1: Is this a direct bolt-in replacement for my NV4500?
A: Yes. The Tremec TR-4050 is specifically designed with the same NV4500 bolt pattern, bellhousing mounting, overall length, and spline counts to be a direct replacement. You should be able to use your existing clutch, bellhousing (for engine fitment), transfer case, and driveshafts.

Q2: What does “fully synchronized” mean?
A: It means that every forward gear (1st through 5th) has a synchronizer ring. This component matches the speed of the gear to the shaft before engagement, allowing you to shift smoothly without grinding gears, even without perfect rev-matching. This is a major advantage over older unsynchronized truck transmissions.

Q3: What is the “granny gear” used for?
A: The extremely low 6.16:1 first gear is designed for high-torque, low-speed applications. It is ideal for:

• Rock Crawling: Precise, slow vehicle control.

• Towing: Starting from a stop with a extremely heavy load.

• Off-Roading: Descending steep hills with engine braking.

• Farm Use: Heavy hauling at low speeds.

Q4: What vehicles is this transmission designed for?
A: It is designed for 4WD trucks that originally came with an NV4500. This primarily includes:

• Chevrolet/GMC: 1988-2007 C/K 1500-3500 trucks with the 4.3L, 5.0L, 5.7L, 6.5L Diesel, 6.0L, and 8.1L engines.

• Dodge/Ram: 1992-2002 2500/3500 trucks with the 5.9L Magnum V8 or 5.9L Cummins Diesel.

• Always confirm your specific year, make, model, and engine for compatibility.

Q5: What is included in the box?
A: The transmission (REM-TDET17341) comes with the internal shifter mechanism. It does not include a bellhousing, transmission yoke, or external shifter lever/knob. These must be reused from your old NV4500 or purchased separately.

Q6: What fluid does it use?
A: Always follow the manufacturer’s recommendation. The NV4500 and its replacements typically require a specific manual transmission fluid, such as ACDelco 10-4051 or an equivalent 75W-85 GL-4 gear oil. Using the wrong fluid (especially GL-5) can damage the synchronizers.

Pros and Cons

Pros:

• Massive Torque Capacity: Handles up to 600 lb-ft, making it suitable for high-horsepower and high-torque applications.

• Proven Direct Replacement: Eliminates guesswork for NV4500 swaps and upgrades.

• Excellent Gear Spread: The wide ratio spread is perfect for both extreme off-roading and comfortable highway driving.

• Modern Shift Quality: Advanced synchronizers provide a smoother, more car-like shift feel than the original NV4500.

• Lightweight Aluminum Case: Reduces overall vehicle weight compared to cast iron cases.

• PTO Capability: Standard provision for running auxiliary equipment is a huge benefit for work trucks.

• New Unit Warranty: Comes as a new unit with a manufacturer’s warranty, not a questionable used or remanufactured core.

Cons:

• High Initial Cost: Significantly more expensive than finding a used junkyard transmission.

• “Granny” Gear Learning Curve: The ultra-low first gear can be jarring for those unfamiliar with it; many drivers start from a stop in 2nd gear under normal conditions.

• Not Included Components: Requires the purchaser to source or reuse the bellhousing, yoke, and shifter lever.

• Weight: At 164 lbs, it is still a very heavy component that requires proper equipment to handle and install.

Conclusion & Best Applications

The Tremec TR-4050 (TDET17341) is the ultimate solution for anyone needing the legendary strength of an NV4500 without the drawbacks of a 20-year-old, worn-out unit. It is a superior, new-manufacture transmission that enhances one of the best truck transmission designs ever made.

You should choose this transmission if:

• You need a direct replacement for a failed or failing NV4500 in your 4WD truck.

• You are building a high-torque off-road rig, tow rig, or restomod and want a modern, robust manual transmission.

• You value smooth shift quality and modern engineering over a clunky, vintage feel.

• You want the peace of mind that comes with a new unit and a warranty.

For enthusiasts and professionals who demand the best, the Tremec TR-4050 is the definitive choice for heavy-duty manual transmission performance.

Disclaimer: Professional installation is highly recommended. Proper clutch selection and installation are critical to handle the torque capacity. Always verify all measurements (length, spline count, yoke size) against your original equipment before purchase. Ensure your transfer case is compatible.
